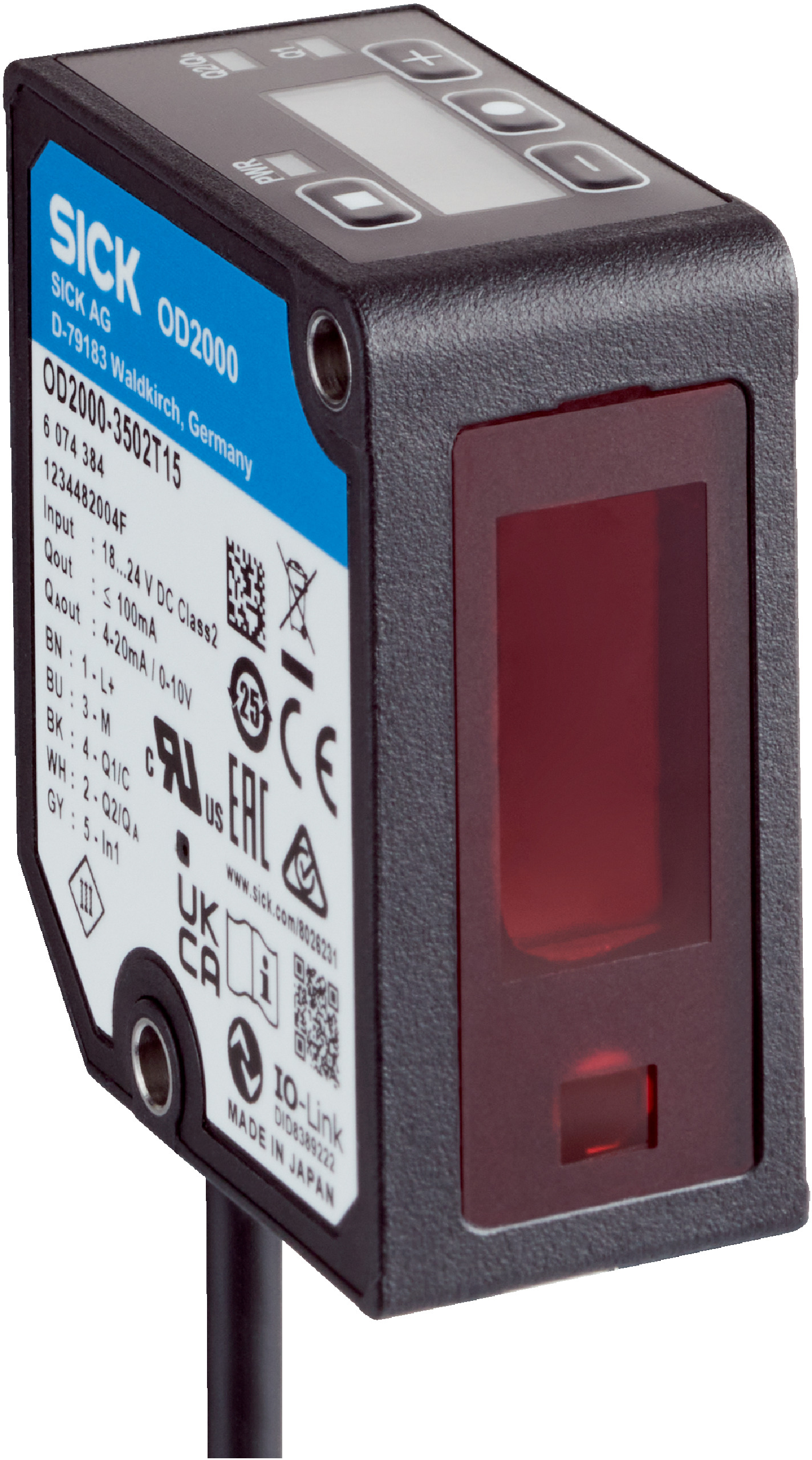

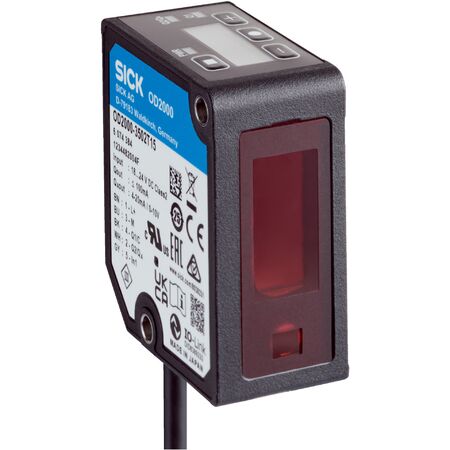

Laser Distance Sensor OD2000-0301T15 | 25 mm to 35 mm Range | 0.1 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD2000-0301T15 is designed for precise distance measurement in industrial automation, featuring a measuring range of 25 mm to 35 mm and a high repeatability of 0.1 µm. With a response time of ≥ 0.533 ms and an IP67 rated enclosure, this sensor is perfect for quality control and inspection systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 25 mm to 35 mm
- Repeatability: 0.1 µm
- Linearity: ± 10 µm
- Response time: ≥ 0.533 ms
- Measuring frequency: ≤ 7.5 kHz
- Output time: ≥ 0.1333 ms
- Light source: Red laser, visible light
- Typical light spot size: Ø 50 µm at 30 mm
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Supply voltage: DC 18 V to 24 V ± 10%
- Power consumption: 1.5 W at 24 V DC
- Display: OLED with status LEDs
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Connection: Cable with male connector, 30 cm
- Digital output: 1 PNP/NPN selectable
- Analog output: 4 mA to 20 mA or 0 V to 10 V selectable, 16 bit resolution
- IO-Link V1.1 support with 230.4 kbit/s data rate
- Dimensions (H x L x W): 60mm x 50mm x 27mm
- Weight: 0.1 kg
Key Features
- Measuring range from 25 mm to 35 mm
- High repeatability of 0.1 µm
- Linearity of ± 10 µm
- Response time ≥ 0.533 ms with measuring frequency up to 7.5 kHz
- Visible red laser light with a typical spot size of Ø 50 µm at 30 mm
- Adjustable average value or media filter and multiple switching modes
- OLED display with status LEDs for easy operation
- IP67 rated enclosure for robust protection
- Multiple output options including IO-Link, digital and analog outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Positioning and monitoring of natural objects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 1.5 W reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD2000-0301T15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
