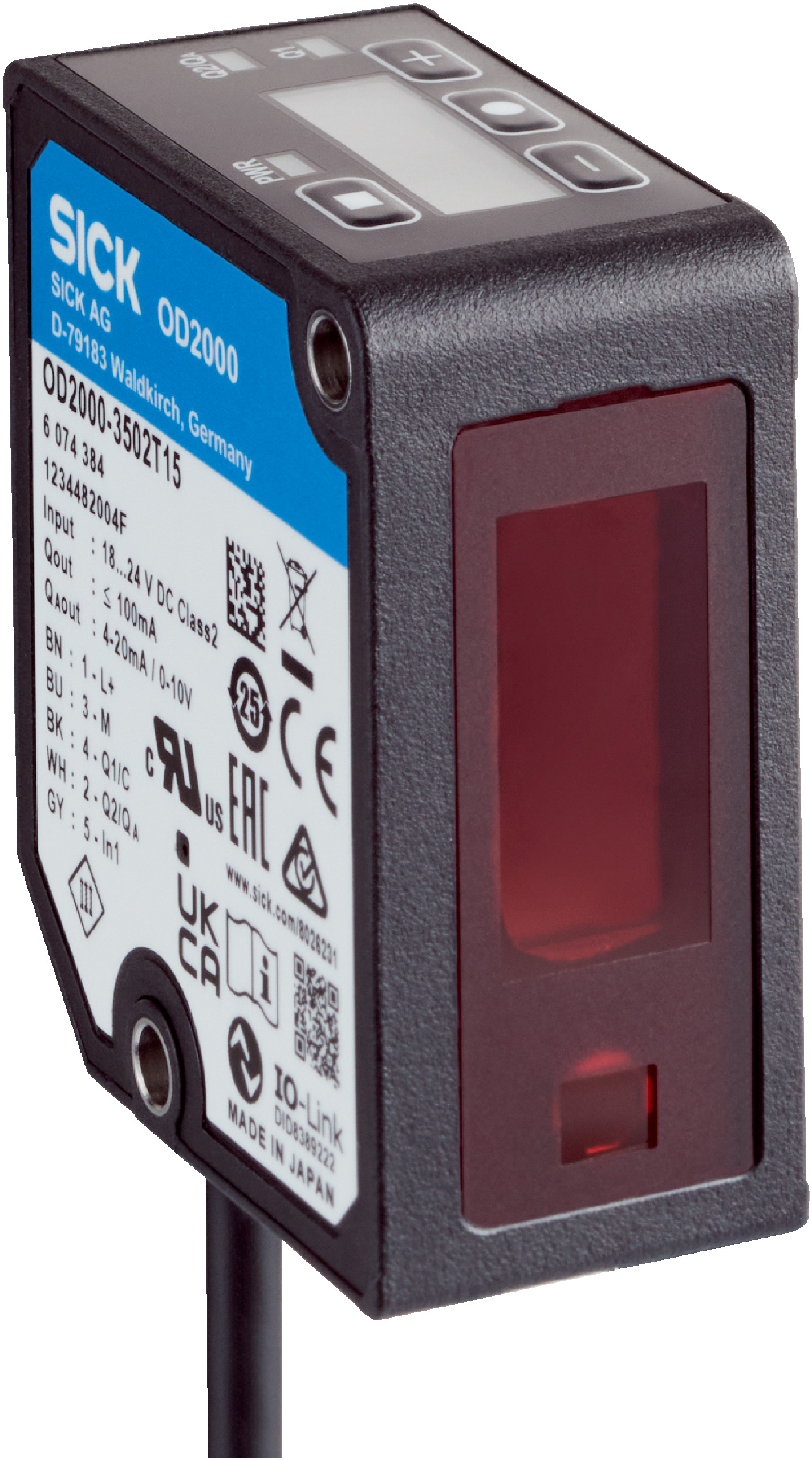

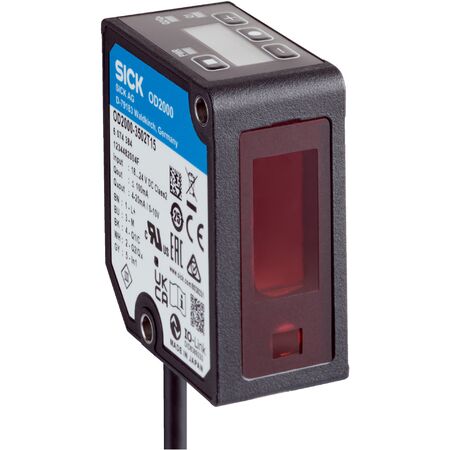

Laser Distance Sensor OD2000-0501T15 | 40 mm to 60 mm Range | 0.2 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD2000-0501T15 offers a measuring range from 40 mm to 60 mm with an impressive repeatability of 0.2 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 0.533 ms and an IP67 rated enclosure, this sensor is built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 40 mm to 60 mm
- Repeatability: 0.2 µm
- Linearity: ± 20 µm
- Response time: ≥ 0.533 ms
- Measuring frequency: ≤ 7.5 kHz
- Output time: ≥ 0.1333 ms
- Light source: Red laser, visible light
- Typical light spot size: Ø 70 µm at 50 mm
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Supply voltage: DC 18 V to 24 V ± 10%
- Power consumption: 1.5 W at 24 V DC
- Display: OLED with status LEDs
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Electrical safety: IEC 61010-1 AMD 1:2016-12
- Connection: Cable with male connector, 30 cm
- Digital output: 1 PNP/NPN selectable
- Analog output: 4 mA to 20 mA or 0 V to 10 V selectable, 16 bit resolution
- IO-Link V1.1 support with 230.4 kbit/s data rate
- Dimensions (H x L x W): 60mm x 50mm x 27mm
- Weight: 0.1 kg
Key Features
- Measuring range from 40 mm to 60 mm
- High repeatability of 0.2 µm
- Linearity accuracy of ± 20 µm
- Fast response time ≥ 0.533 ms
- Measuring frequency up to 7.5 kHz
- Visible red laser light source with 70 µm spot size at 50 mm
- Adjustable average value or media filter
- Multiple switching modes including Distance to Object and switching window
- Teach-in functions for digital and analog outputs
- Multifunctional input for sender off, hold functions, or deactivation
- OLED display with status LEDs
- IP67 rated enclosure for robust protection
- Laser class 1 safety compliant
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Process monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 1.5 W reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Non-contact measurement reduces wear and tear on equipment
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD2000-0501T15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
