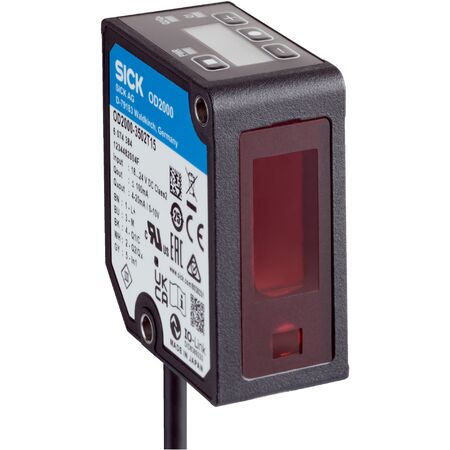

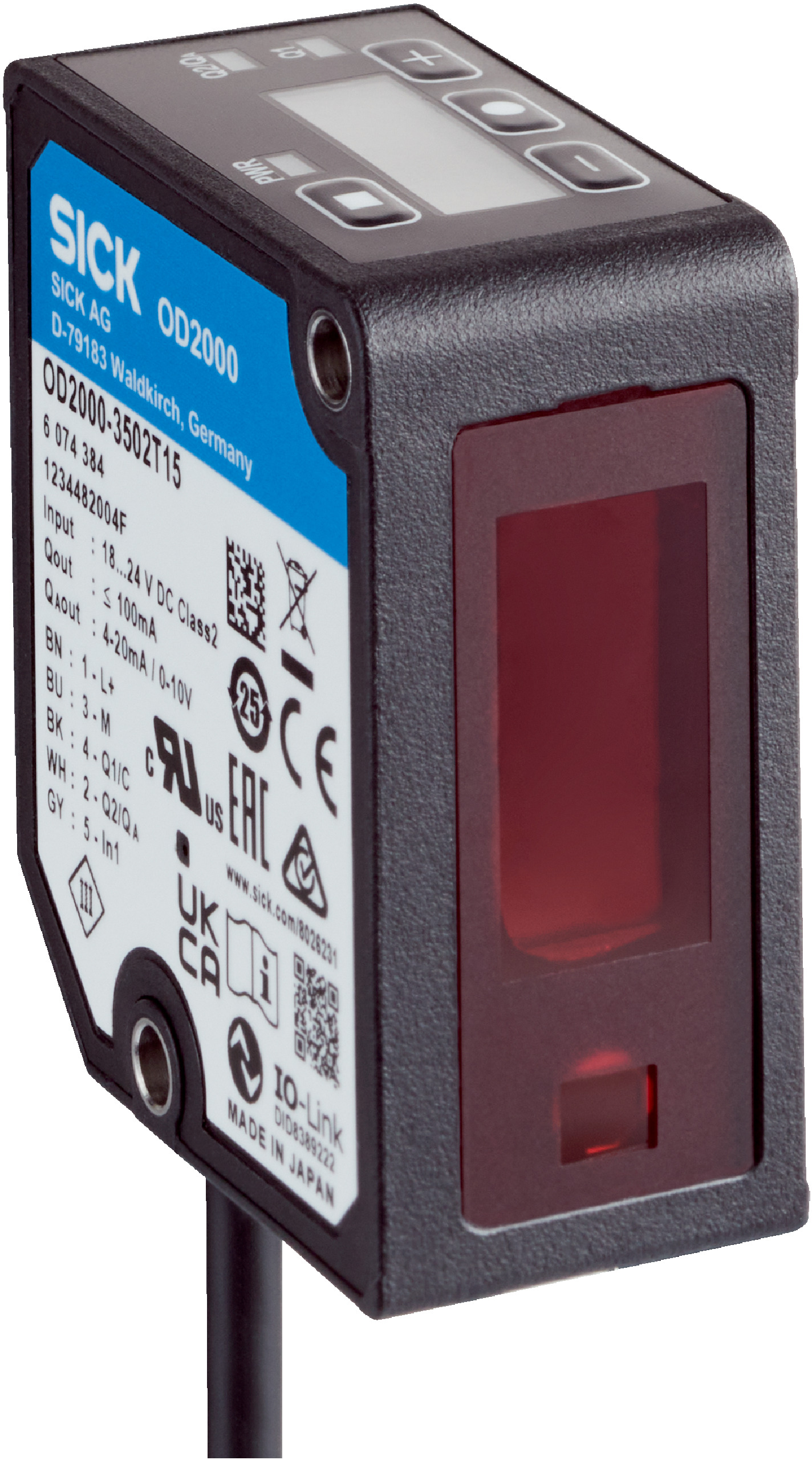

Laser Distance Sensor OD2000-1301T15 | 60 mm to 200 mm Range | 4 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD2000-1301T15 offers a measuring range from 60 mm to 200 mm with a high repeatability of 4 µm, making it ideal for industrial automation and precise distance measurement. With a response time of ≥ 0.533 ms and a measuring frequency of up to 7.5 kHz, this sensor is perfect for quality control, robotics, and natural object detection in manufacturing processes. Its robust IP67 rated enclosure ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 60 mm to 200 mm
- Repeatability: 4 µm
- Linearity: ±140 µm
- Response time: ≥ 0.533 ms
- Measuring frequency: ≤ 7.5 kHz
- Output time: ≥ 0.1333 ms
- Light source: Red laser, visible light
- Laser class: 1 (IEC 60825-1:2014)
- Digital output: 1 PNP/NPN selectable, max 100 mA
- Analog output: 4 mA to 20 mA (≤ 300 Ω) or 0 V to 10 V (> 10,000 Ω), 16 bit resolution
- Supply voltage: DC 18 V to 24 V ±10%
- Power consumption: 1.5 W at 24 V DC
- Enclosure rating: IP67
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Display: OLED with status LEDs
- Connection: Cable with male connector, 30 cm
- Dimensions (H x L x W): 60mm x 50mm x 27mm
- Weight: 0.1 kg
Key Features
- Measuring range from 60 mm to 200 mm
- High repeatability of 4 µm
- Response time ≥ 0.533 ms with measuring frequency up to 7.5 kHz
- Visible red laser light with a spot size of Ø 300 µm at 130 mm
- Adjustable average value or media filter and multiple switching modes
- OLED display with status LEDs for easy operation
- IP67 rated enclosure for robust protection
- Multiple output options including digital PNP/NPN and analog current/voltage outputs
- IO-Link V1.1 interface for process data, parameterization, and diagnosis
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Natural object detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 1.5 W reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Non-contact measurement reduces wear and tear on equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD2000-1301T15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
