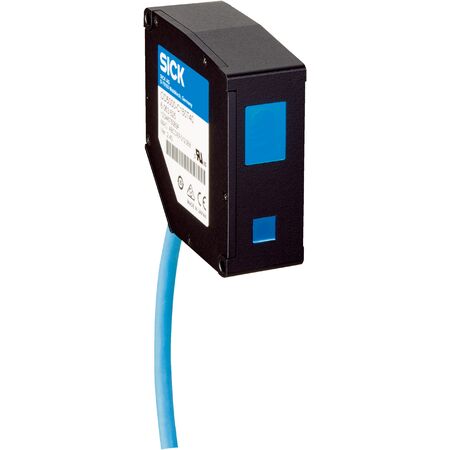

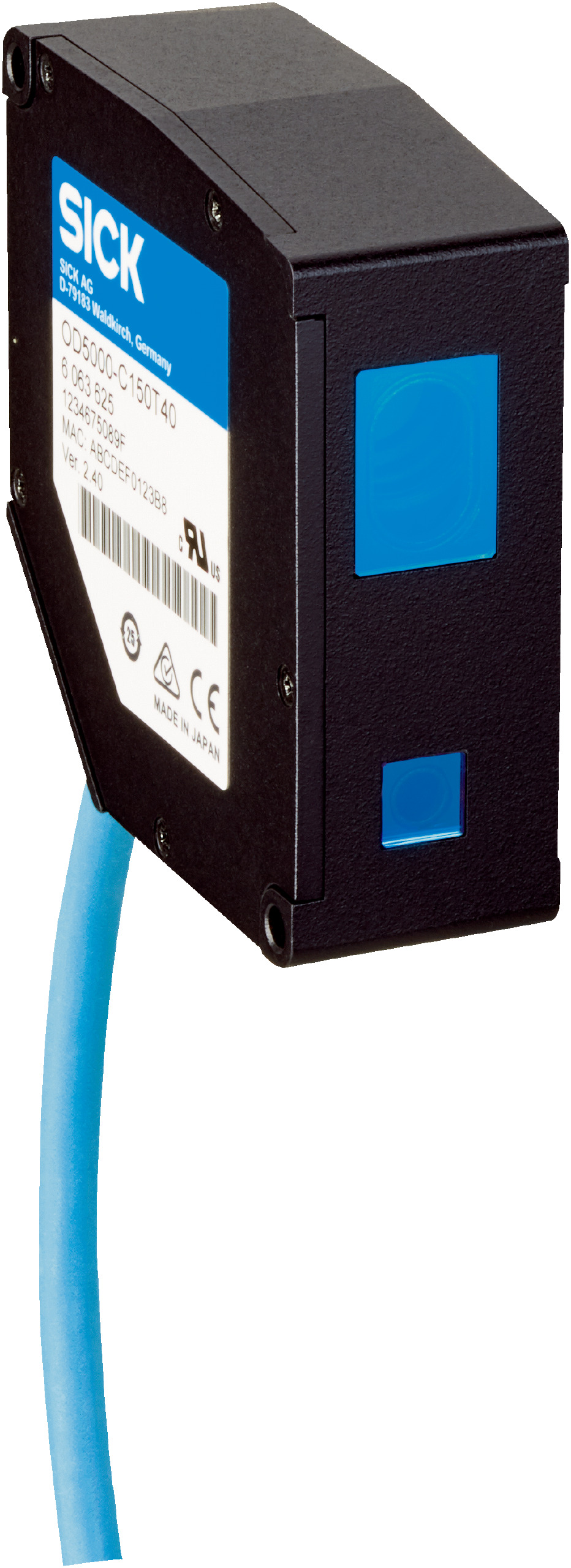

Laser Distance Sensor OD5000-C150T40 | 110 mm to 190 mm Range | 0.2 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD5000-C150T40 is designed for precise distance measurement in industrial automation, featuring a measuring range of 110 mm to 190 mm and a high repeatability of 0.2 µm. With a fast response time of ≥ 12.5 µs and an IP67 rated enclosure, this sensor is perfect for quality control and production line applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 110 mm to 190 mm
- Repeatability: 0.2 µm
- Linearity: Diffuse ±24 µm (near side), Diffuse ±32 µm (far side), Specular not supported
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Light source: Visible red laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size: Ø 120 µm
- Supply voltage: DC 12 V to 24 V ±10%
- Power consumption: 180 mA at 24 V
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Connection: Cable with male M12, 8-pin, A-coded, 50 cm
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range from 110 mm to 190 mm
- High repeatability of 0.2 µm
- Visible red laser light source with laser class 1 safety
- Fast response time of ≥ 12.5 µs
- IP67 rated enclosure for protection against dust and water
- Metal aluminum die cast housing with plastic PMMA window
- Multiple output options including digital PNP/NPN and analog current output
- Operating temperature range from –10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure compliance and optimal sensor performance.
Applications
- Industrial automation for precise distance and thickness measurement
- Quality control in manufacturing processes
- Measurement of natural objects in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption of 180 mA at 24 V
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK OD5000-C150T40 Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
