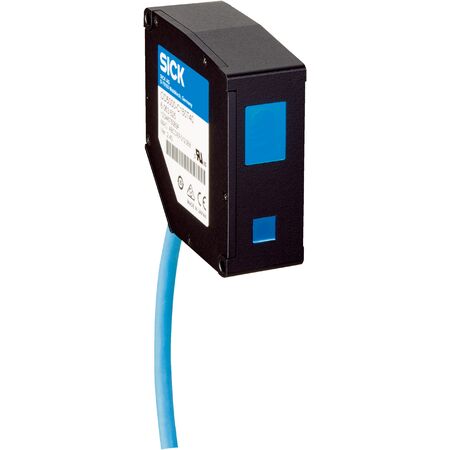

Laser Distance Sensor OD5000-C150W40 | 110 mm to 190 mm Range | 0.2 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD5000-C150W40 is designed for precision measurement in industrial automation, featuring a measuring range of 110 mm to 190 mm and a high repeatability of 0.2 µm. With a fast response time of ≥ 12.5 µs and an IP67 rated enclosure, this sensor is perfect for quality control and non-contact distance measurement applications, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 110 mm to 190 mm
- Repeatability: 0.2 µm
- Linearity: Diffuse ±12 µm
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Light source: Red visible laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size: 120 µm x 4000 µm
- Supply voltage: DC 12 V to 24 V ±10%
- Power consumption: 180 mA at 24 V
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Connection: Cable with male M12, 8-pin, A-coded, 50 cm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range from 110 mm to 190 mm
- High repeatability of 0.2 µm
- Diffuse linearity ±12 µm, specular not supported
- Fast response time ≥ 12.5 µs
- Red visible laser light source, laser class 1
- IP67 rated enclosure for protection against dust and water
- Metal aluminum die cast housing with PMMA window
- Digital and analog outputs with selectable PNP/NPN types
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Precision measurement of natural objects in industrial automation
- Quality control and inspection in manufacturing processes
- Non-contact distance and thickness measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact measurement reduces material waste and wear
- Energy-efficient operation with low power consumption
- Durable IP67 housing extends product life reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD5000-C150W40 Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
