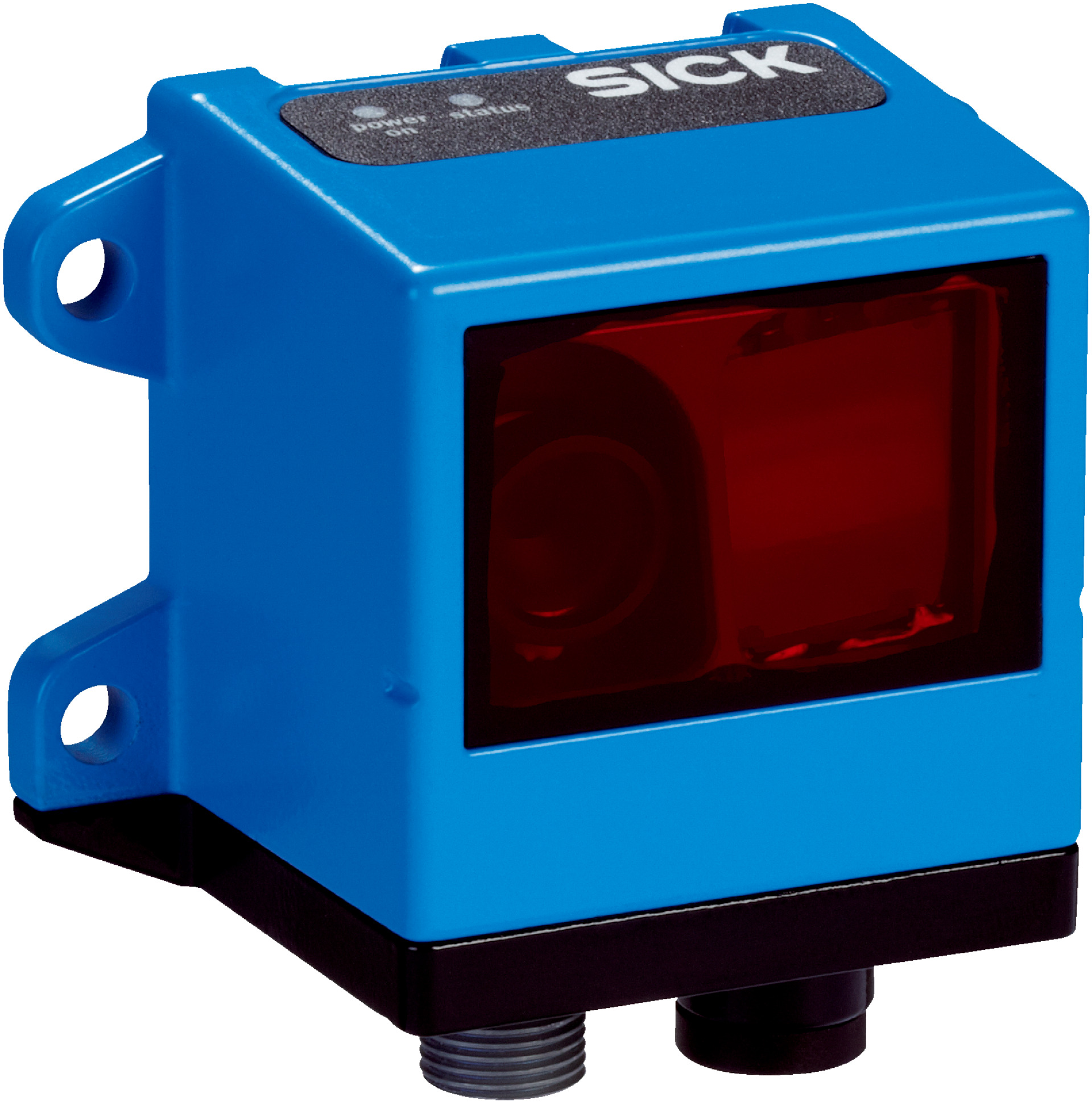

Laser Distance Sensor OLM100-1005 | 0 to 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor OLM100-1005 offers an impressive measuring range from 0 to 10,000 m with high resolution of 0.1 mm, making it ideal for industrial automation and precision measurement applications. With a fast output time of 5 ms and an IP65 rated enclosure, this sensor is built for durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor OLM100-1005 | 0 to 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1046580
Alternatively Known As: Laser Distance Sensor, Laser Measurement Sensor, OLM100 Laser Sensor, SICK Laser Rangefinder
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm, 1 mm
- Repeatability: 1 mm
- Output time: 5 ms
- Light source: Red LED
- Max. movement speed: 4 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Serial interface: RS-485
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 3 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- EMC: EN 61000-6-2 / EN 61000-6-4
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: ≤ 5,000 lx
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 60mm x 150mm x 120mm
- Weight: 1.5 kg
Key Features
- Measuring range from 0 m to 10,000 m
- High resolution of 0.1 mm and 1 mm
- Repeatability of 1 mm
- Fast output time of 5 ms
- Red LED light source
- Maximum movement speed of 4 m/s
- Reading distance of 100 mm ± 20 mm
- Barcode width detection of 30 mm
- RS-485 serial interface
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -30 °C to +60 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Industrial automation and control
- Distance and position measurement
- Material handling and logistics
- Quality control and inspection
Standards & Compliance
- AS/NZS 61000 – Electromagnetic compatibility (EMC) standards
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable IP65 enclosure extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OLM100-1005 Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
