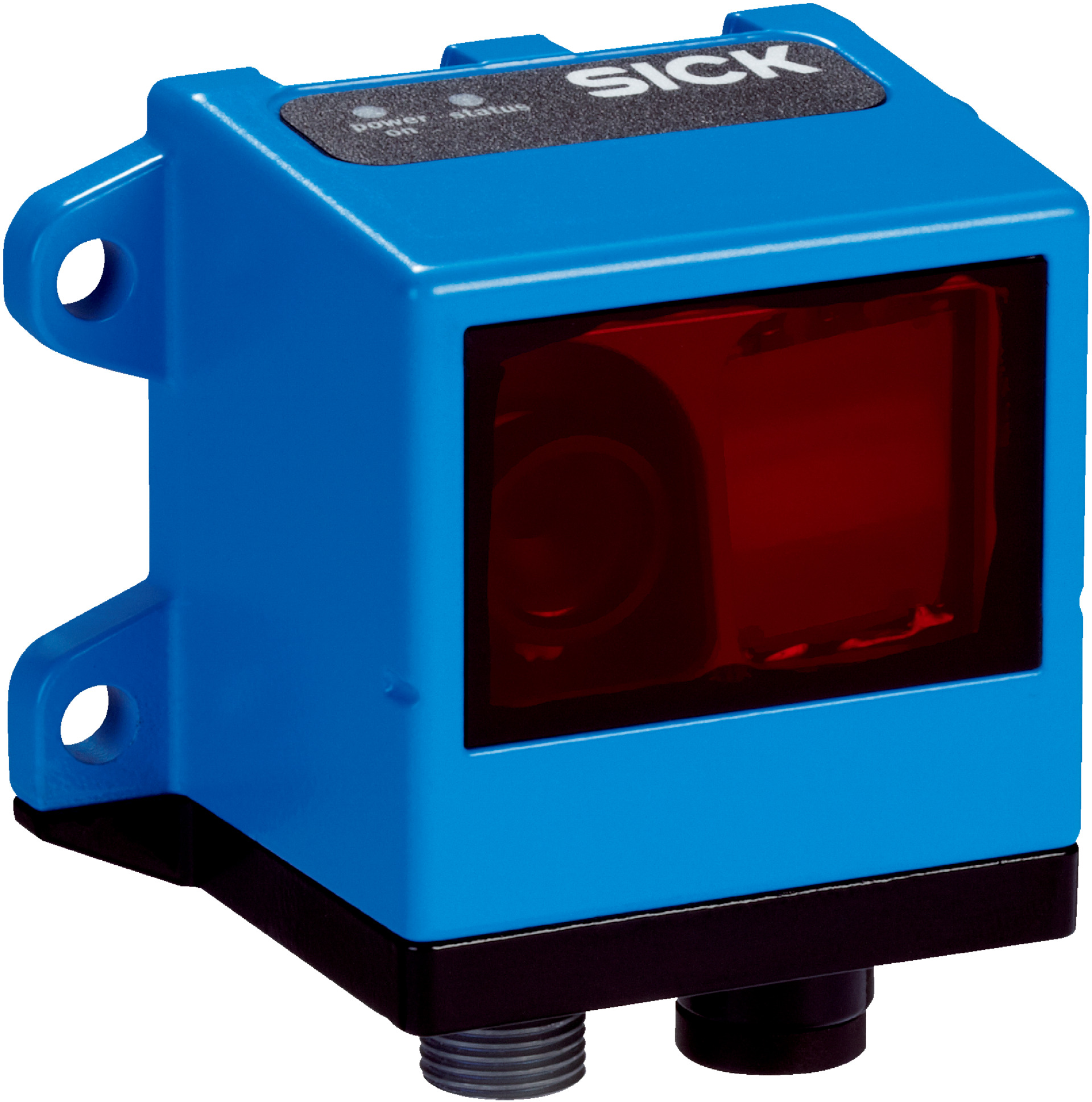

Laser Distance Sensor OLM100-1005S01 | 0 to 10,000 m Range | 1 mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor OLM100-1005S01 offers an impressive measuring range of 0 to 10,000 m with a high resolution and repeatability of 1 mm. Designed for industrial automation and precise distance measurement, this sensor features a fast output time of 5 ms and operates within a wide temperature range of -30 °C to +60 °C. Its IP65 rated enclosure ensures durability in harsh environments, making it ideal for logistics, quality control, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor OLM100-1005S01 | 0 to 10,000 m Range | 1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1050976
Alternatively Known As: Laser Distance Sensor, Laser Measurement Sensor, Industrial Laser Sensor, SICK OLM100 Sensor
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 1 mm
- Repeatability: 1 mm
- Output time: 5 ms
- Light source: Red LED
- Max movement speed: 4 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Serial interface: RS-485
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 3 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- EMC: EN 61000-6-2 / EN 61000-6-4
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Measuring range from 0 m to 10,000 m
- High resolution and repeatability of 1 mm
- Fast output time of 5 ms
- Red LED light source
- Max movement speed of 4 m/s
- Reading distance of 100 mm ± 20 mm
- Barcode width detection of 30 mm
- RS-485 serial interface
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -30 °C to +60 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation and control
- Distance and position measurement
- Material handling and logistics
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable IP65 enclosure extends product life and reduces waste
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OLM100-1005S01 Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
