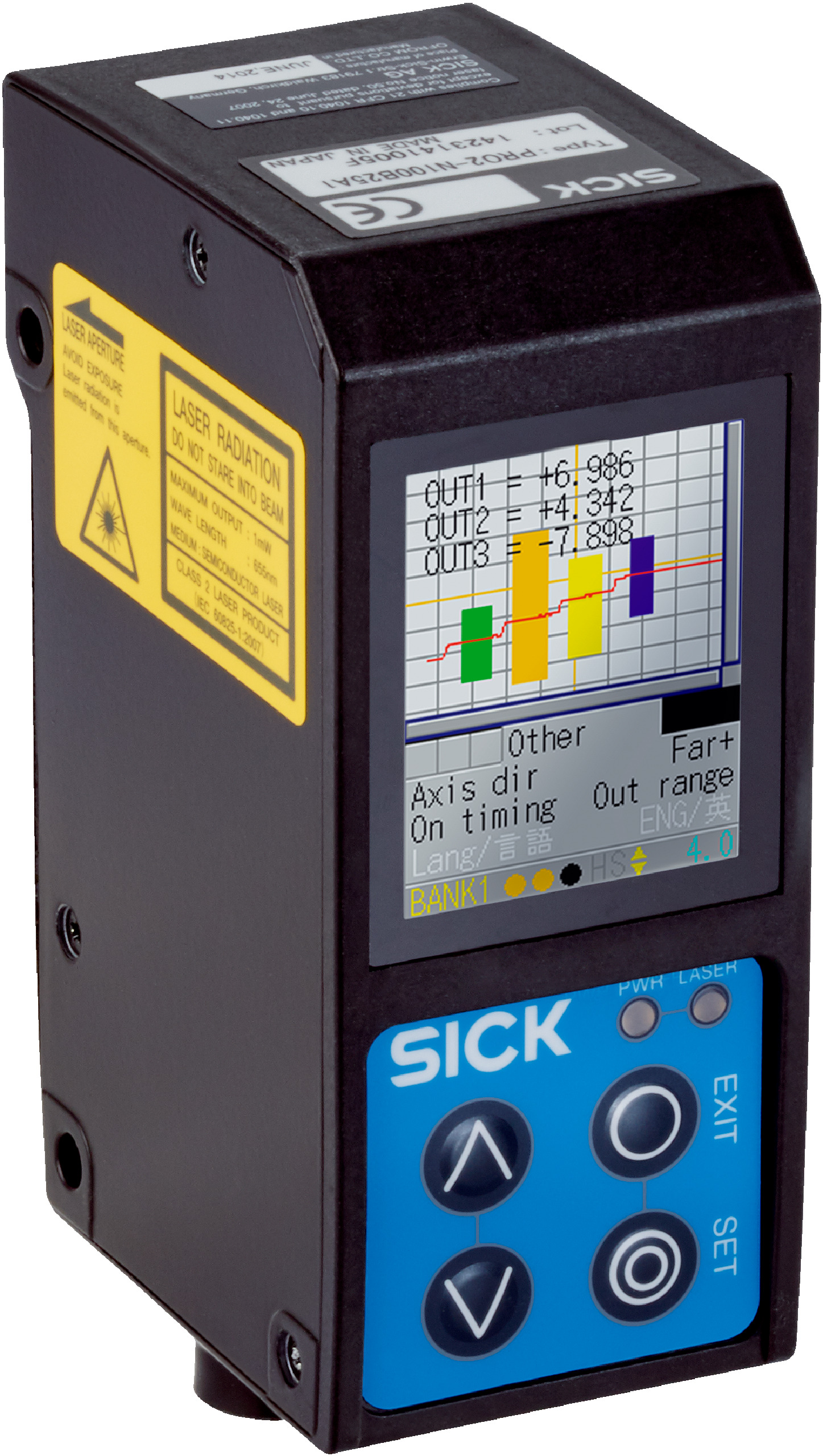

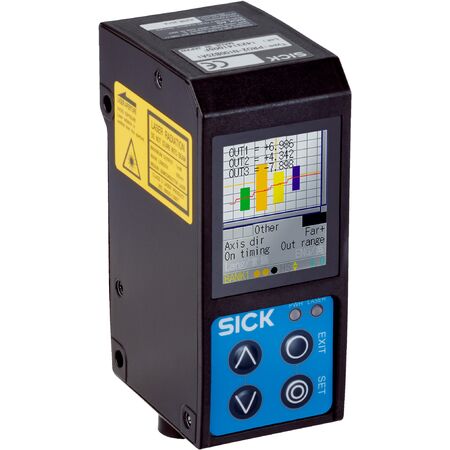

Laser Distance Sensor PRO2-N100B25A1 | 75 mm to 125 mm Range | 25 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor PRO2-N100B25A1 is designed for precise distance measurement, featuring a measuring range of 75 mm to 125 mm and high repeatability of 25 µm in the x-direction. Ideal for industrial automation and quality control applications, this sensor operates with a visible red laser light source and offers multiple measurement functions, ensuring accuracy and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 75 mm to 125 mm
- Measuring width at distance: 17 mm (75 mm), 22 mm (100 mm), 27 mm (125 mm)
- Repeatability: 25 µm (x-direction), 2 µm (z-direction)
- Linearity: ±170 µm to ±270 µm (x-direction), ±50 µm (z-direction)
- Response time: ≥ 5 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 0.3 mm x 32 mm
- Power supply: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 180 mA
- Enclosure rating: IP67
- Operating temperature: -10 °C to +40 °C
- Storage temperature: -20 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 94.5mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- Measuring range from 75 mm to 125 mm
- High repeatability with 25 µm in x-direction and 2 µm in z-direction
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Multiple measurement functions including average, peak height, bottom height, width, edge position, and more
- Robust metal zinc diecast housing with IP67 enclosure rating
- Fast response time of ≥ 5 ms
- Multiple interfaces including RS-485 serial communication and digital/analog outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance and width measurement
- Quality control in manufacturing processes
- Natural object detection and measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 180 mA)
- Durable metal housing extends product life reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PRO2-N100B25A1 Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
