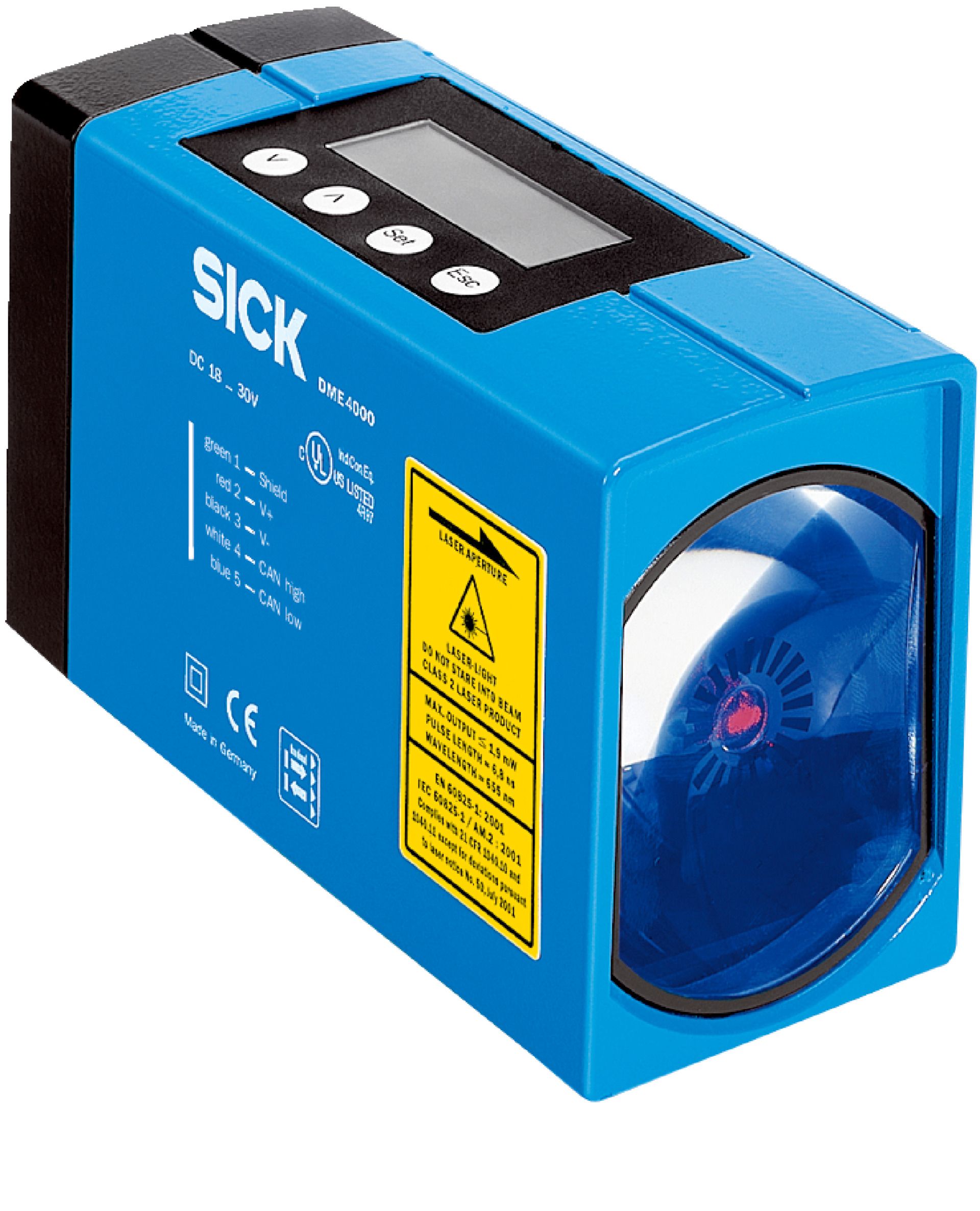

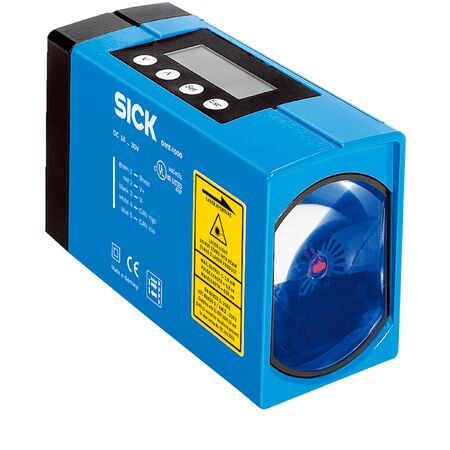

Laser Distance Sensor SICK DME4000-311S01 | 0.15m to 220m Range | IP65 Rated | by SICK
The Laser Distance Sensor SICK DME4000-311S01 offers a measuring range from 0.15 m to 220 m, making it ideal for industrial automation and precise distance measurement. With high repeatability of ≤ 3 mm and a fast response time of 6 ms, this sensor is built for reliability in material handling, quality control, and robotics applications. Its robust IP65-rated zinc diecast housing ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor SICK DME4000-311S01 | 0.15m to 220m Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1042733
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, SICK DME4000
Technical Specifications
- Measuring range: 0.15 m to 220 m on diamond grade reflective tape
- Repeatability: ≤ 3 mm
- Measurement accuracy: ± 6 mm
- Response time: 6 ms
- Output time: 1 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 130 mm at 70 m, 270 mm at 150 m, 360 mm at 220 m
- Max movement speed: 10 m/s
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 1000 mA at 24 V DC
- Enclosure rating: IP65
- Housing material: Zinc diecast metal
- Connection type: Male M16, 8-pin connector
- Operating temperature: -10 °C to +55 °C (up to +75 °C with cooling case)
- EMC compliance: EN 61000-6-2, EN 55011 Class B
- Dimensions (H x L x W): 85mm x 166mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 220 m on diamond grade reflective tape
- High repeatability of ≤ 3 mm
- Measurement accuracy of ± 6 mm
- Fast response time of 6 ms and output time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Compact metal zinc diecast housing with IP65 enclosure rating
- Dual digital push-pull outputs (PNP/NPN) with max output current ≤ 100 mA
- Multifunctional input for versatile control
- Operating temperature range from -10 °C to +55 °C (up to +75 °C with cooling case)
- Robust against mechanical shock and electromagnetic interference
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and alignment for accurate measurements.
Applications
- Industrial automation for precise distance measurement
- Material handling and logistics for position detection
- Quality control and inspection systems
- Robotics and machine safety systems
Standards & Compliance
- AS/NZS 61000 – Electromagnetic compatibility (EMC) standards compliance inferred from EN 61000-6-2
Environmental Benefits
- Non-contact measurement reduces wear and tear and maintenance needs
- Energy-efficient laser technology minimizes power consumption
- Durable metal housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DME4000-311S01 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
