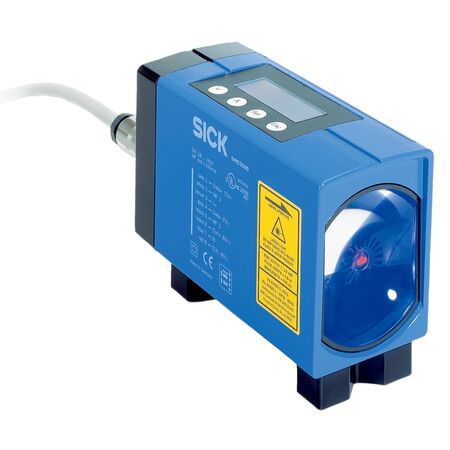

Laser Distance Sensor SICK DME5000-127 | 0.15m to 70m Range | 0.05mm to 5mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor SICK DME5000-127 offers a measuring range from 0.15 m to 70 m, with high resolution from 0.05 mm to 5 mm, making it ideal for industrial automation and precise distance measurement. With a fast response time of 6 ms and an IP65 rated enclosure, this sensor is built for durability and reliability in demanding environments, ensuring accurate measurements for quality control and logistics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor SICK DME5000-127 | 0.15m to 70m Range | 0.05mm to 5mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1028244
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Meter, SICK DME5000
Technical Specifications
- Measuring range: 0.15 m to 70 m on diamond grade reflective tape
- Resolution: 0.05 mm to 5 mm
- Repeatability: 0.5 mm
- Measurement accuracy: ± 2 mm
- Response time: 6 ms
- Output time: 2 ms
- Light source: Visible red laser, class 2
- Typical light spot size at 70 m: 130 mm
- Maximum movement speed: 10 m/s
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 1000 mA at 24 V DC
- Enclosure rating: IP65
- Housing material: Metal (zinc diecast)
- Connection type: Male connector, 1 x M12 4-pin, 1 x M12 8-pin
- Operating temperature: -40 °C to +55 °C (with heating up to +75 °C)
- Dimensions (H x L x W): 101mm x 176mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 70 m on diamond grade reflective tape
- High resolution from 0.05 mm to 5 mm
- Repeatability of 0.5 mm
- Measurement accuracy of ± 2 mm
- Fast response time of 6 ms and output time of 2 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Maximum movement speed of 10 m/s
- IP65 rated enclosure for robust protection
- Metal zinc diecast housing with glass window
- Operating temperature range from -40 °C to +55 °C (with heating up to +75 °C)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Material handling and logistics for object detection
- Quality control and inspection systems
- Robotics and machine safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise measurement reducing material waste in industrial processes
- Durable metal housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DME5000-127 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
