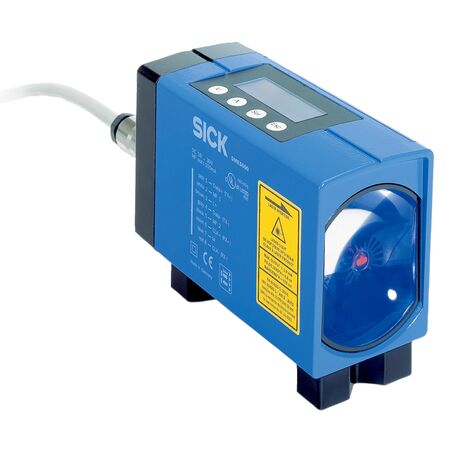

Laser Distance Sensor SICK DME5000-211 | 0.15m to 150m Range | IP65 Rated | by SICK
The Laser Distance Sensor SICK DME5000-211 offers a measuring range from 0.15 m to 150 m, making it ideal for industrial automation and safety monitoring applications. With high resolution from 0.05 mm to 5 mm and an IP65 rated enclosure, this sensor ensures reliable performance in harsh environments, providing accurate distance measurements with a fast response time of just 6 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor SICK DME5000-211 | 0.15m to 150m Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1024081
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, SICK DME5000
Technical Specifications
- Measuring range: 0.15 m to 150 m on diamond grade reflective tape
- Resolution: 0.05 mm to 5 mm
- Repeatability: 1 mm
- Measurement accuracy: ±3 mm
- Response time: 6 ms
- Output time: 1 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 130 mm at 70 m, 270 mm at 150 m, 360 mm at 220 m
- Max movement speed: 10 m/s
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 250 mA at 24 V DC
- Enclosure rating: IP65
- Protection class: II
- Connection type: Male connector, M16, 8-pin
- Operating temperature: -10 °C to +55 °C (up to +75 °C with cooling case)
- Storage temperature: -25 °C to +75 °C
- EMC compliance: EN 61000-6-2, EN 55011
- Dimensions (H x L x W): 101mm x 176mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 150 m on diamond grade reflective tape
- High resolution from 0.05 mm to 5 mm
- Repeatability of 1 mm
- Measurement accuracy of ±3 mm
- Fast response time of 6 ms and output time of 1 ms
- Visible red laser light source, laser class 2
- IP65 rated enclosure for protection against dust and water
- Metal zinc diecast housing with glass window
- Digital outputs: 2 push-pull PNP/NPN with max 100 mA current
- Supply voltage DC 18 V to 30 V with low current consumption
- Operating temperature range from -10 °C to +55 °C (up to +75 °C with cooling case)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and control
- Material handling and logistics
- Safety and monitoring in manufacturing
- Distance measurement in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DME5000-211 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
