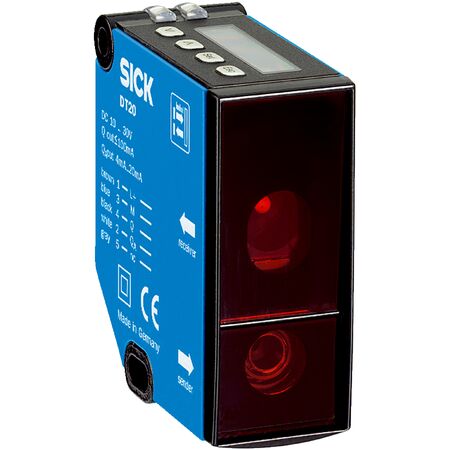

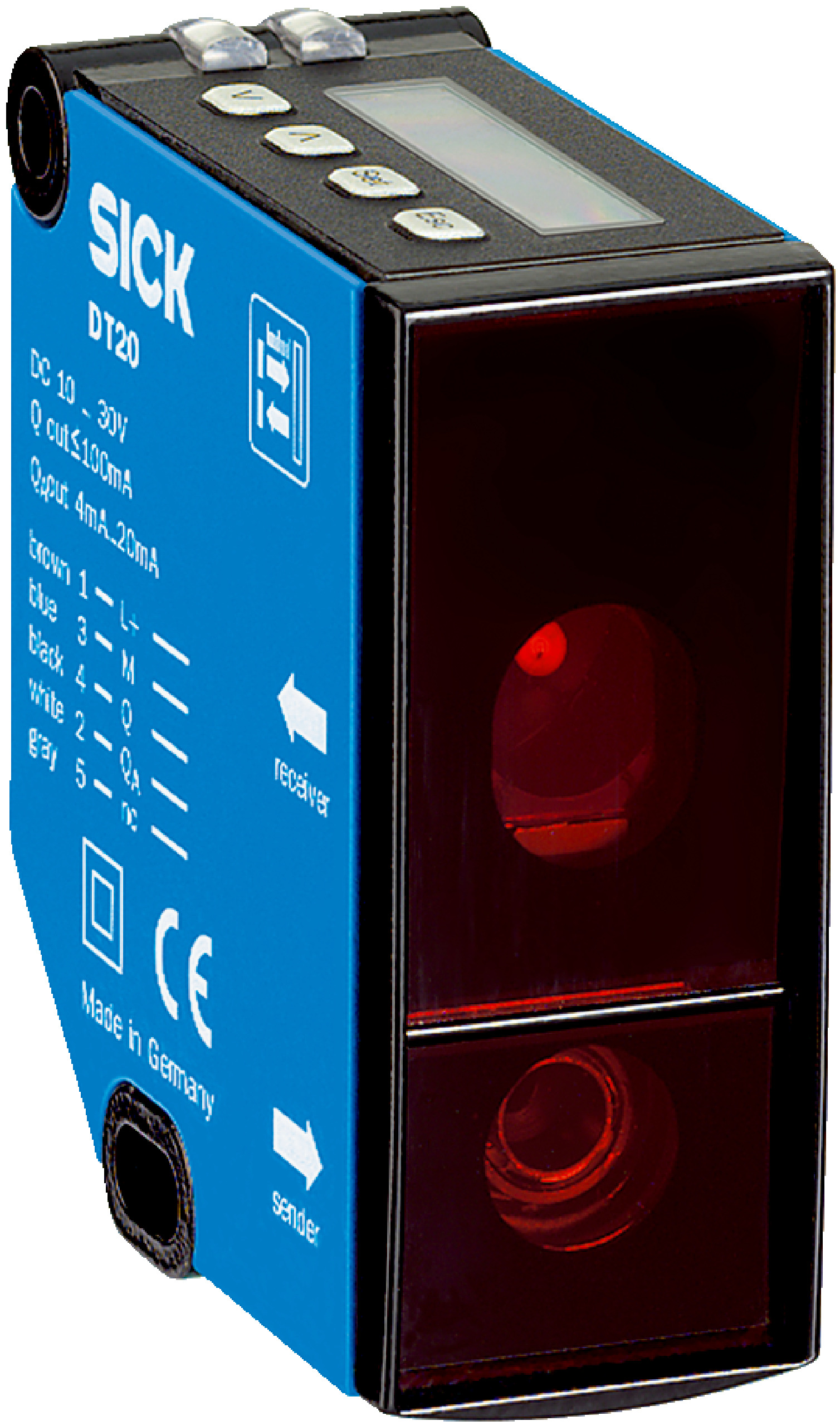

Laser Distance Sensor SICK DT20-P254B | 50 mm to 150 mm Range | IP65 Rated | by SICK
The Laser Distance Sensor SICK DT20-P254B offers a measuring range from 50 mm to 150 mm with high repeatability of ≥ 0.125 mm, making it ideal for industrial automation and precision measurement applications. With a fast response time of ≥ 2.5 ms and an IP65 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for quality control, object detection, and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor SICK DT20-P254B | 50 mm to 150 mm Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1041278
Alternatively Known As: Laser Distance Sensor, Laser Displacement Sensor, Optical Distance Sensor, SICK DT20 Sensor
Technical Specifications
- Measuring range: 50 mm to 150 mm
- Repeatability: ≥ 0.125 mm
- Linearity: ± 0.5 mm
- Response time: ≥ 2.5 ms
- Output time: ≥ 2.5 ms
- Light source: Visible red laser light, Laser class 2 (IEC 60825-1:2014)
- Typical light spot size at 150 mm: 2 mm x 4 mm
- Digital output: 1 PNP output, max 100 mA
- Analog output: 4 mA to 20 mA current output, 12-bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.8 W
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Housing material: Zinc diecast metal
- Window material: PMMA plastic
- Connection: Male M12, 5-pin swivel connector
- Dimensions (H x L x W): 72.4mm x 54.1mm x 24.3mm
- Weight: 0.135 kg
Key Features
- Measuring range from 50 mm to 150 mm
- High repeatability of ≥ 0.125 mm
- Linearity accuracy of ± 0.5 mm
- Fast response and output time of ≥ 2.5 ms
- Visible red laser light source, Laser class 2
- Multifunctional input for laser off, external teach-in, and deactivation
- IP65 rated enclosure for dust and water protection
- Metal zinc diecast housing with plastic PMMA window
- Digital PNP output and analog current output (4 mA to 20 mA)
- LC display with 2 LEDs for indication
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and alignment for accurate measurements.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Object detection and positioning in manufacturing
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.8 W reduces energy usage
- Durable metal housing extends product life, reducing waste
- IP65 rating ensures protection against dust and water, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DT20-P254B Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
