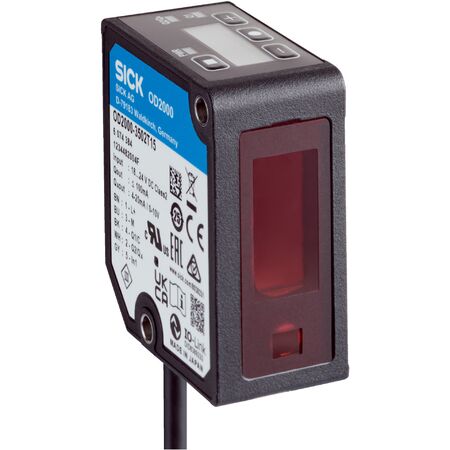

Laser Distance Sensor SICK OD2000-2452T15 | 70 mm to 420 mm Range | 10 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor SICK OD2000-2452T15 offers a measuring range from 70 mm to 420 mm with a high repeatability of 10 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 0.533 ms and an IP67 rated enclosure, this sensor is built for robust performance in quality control, robotics, and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 70 mm to 420 mm
- Repeatability: 10 µm
- Linearity: ±350 µm
- Response time: ≥ 0.533 ms
- Measuring frequency: ≤ 7.5 kHz
- Output time: ≥ 0.1333 ms
- Light source: Red laser, visible light
- Laser class: 2
- Power supply: DC 18 V to 24 V ±10%
- Power consumption: 1.5 W at 24 V DC
- Analog output: 4 mA to 20 mA or 0 V to 10 V selectable
- Digital output: 1 PNP/NPN selectable
- IO-Link: Version 1.1, 230.4 kbit/s
- Enclosure rating: IP67
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Housing material: Plastic (PBT)
- Window material: Plastic (PMMA)
- Display: OLED with status LEDs
- Dimensions (H x L x W): 60mm x 50mm x 27mm
- Weight: 0.1 kg
Key Features
- Measuring range from 70 mm to 420 mm
- High repeatability of 10 µm
- Fast response time ≥ 0.533 ms
- Visible red laser light source with 500 µm spot size at 245 mm
- Adjustable average value and media filter
- Multiple switching modes including Distance to Object and switching window
- Teach-in functions for digital and analog outputs
- OLED display with status LEDs
- IP67 rated enclosure for robust protection
- Supports IO-Link V1.1 for process data, parameterization, and diagnosis
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure compliance and optimal sensor performance.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Object detection and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 1.5 W reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Supports IO-Link for efficient data communication and reduced wiring
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD2000-2452T15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
