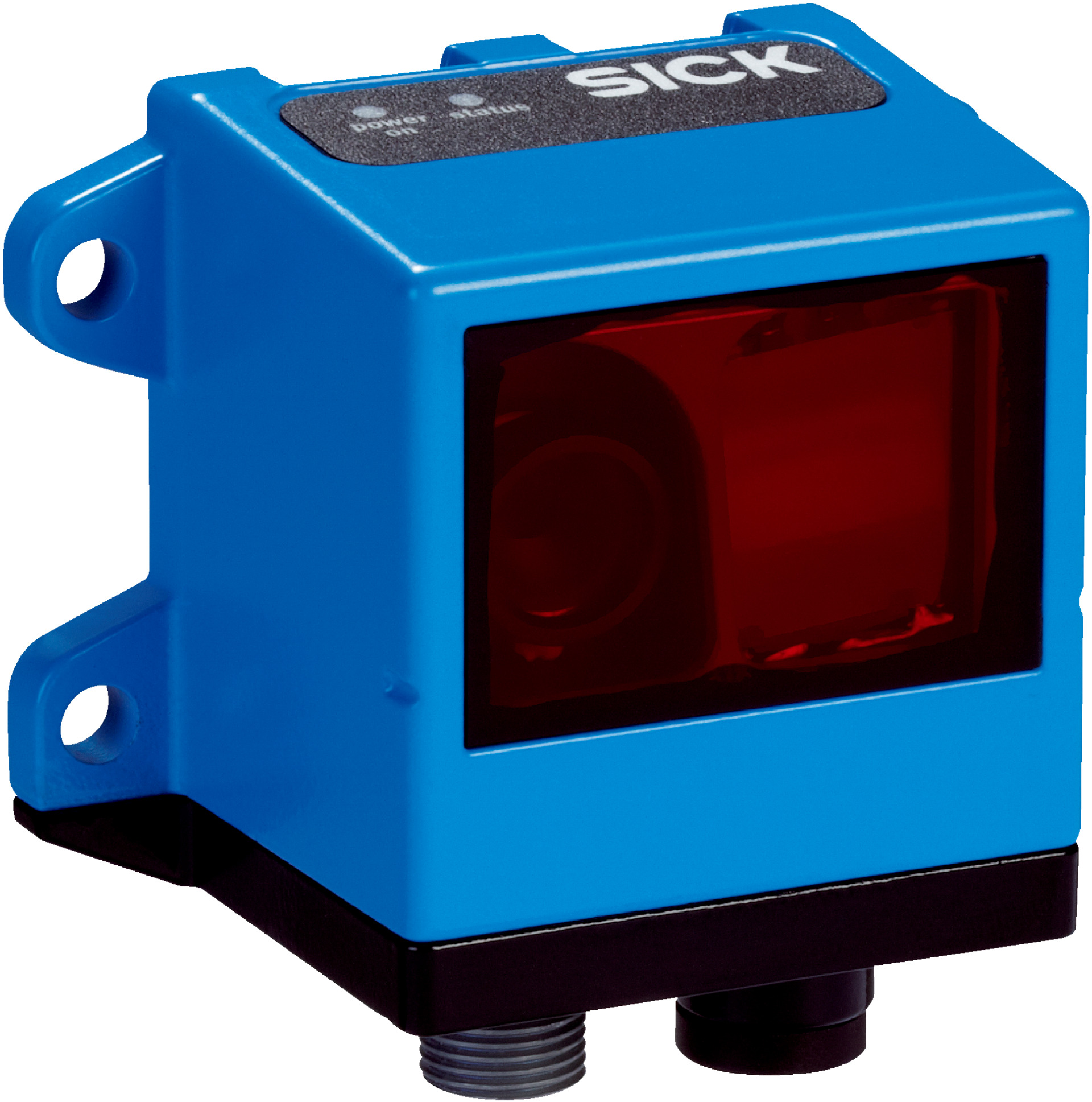

Laser Distance Sensor SICK OLM100-1051 | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor SICK OLM100-1051 offers an impressive measuring range of up to 10,000 m with high resolution options of 0.1 mm and 1 mm. Designed for industrial automation, this sensor ensures precise distance and position measurements, making it ideal for material handling, quality control, and logistics applications. With a fast output time of 1 ms and an IP65 rated enclosure, it provides reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor SICK OLM100-1051 | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1050136
Alternatively Known As: Laser Distance Sensor, Laser Measurement Sensor, Industrial Laser Sensor, SICK OLM100
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm and 1 mm
- Repeatability: 1 mm
- Output time: 1 ms
- Light source: Red LED
- Max movement speed: 4 m/s
- Reading distance: 130 mm ± 20 mm
- Barcode width: 40 mm
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 3 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- EMC: EN 61000-6-2 / EN 61000-6-4
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Ambient light immunity: ≤ 5,000 lx
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Interface: SSI
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Measuring range up to 10,000 m
- High resolution of 0.1 mm and 1 mm
- Repeatability of 1 mm
- Fast output time of 1 ms
- Red LED light source
- Max movement speed of 4 m/s
- Reading distance of 130 mm ± 20 mm
- Barcode width detection of 40 mm
- IP65 rated enclosure for dust and water protection
- Low power consumption under 3 W
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation and control
- Distance and position measurement
- Material handling and logistics
- Quality control and inspection
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65 enclosure extends product life and reduces waste
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK OLM100-1051 Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
