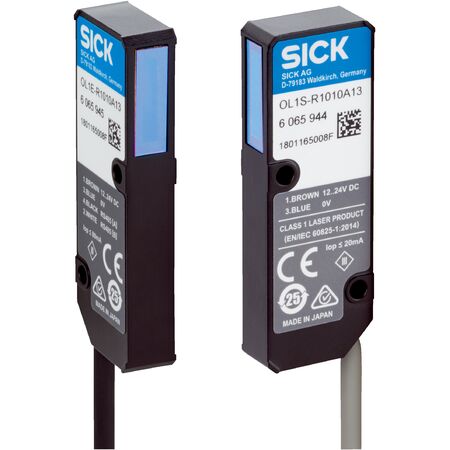

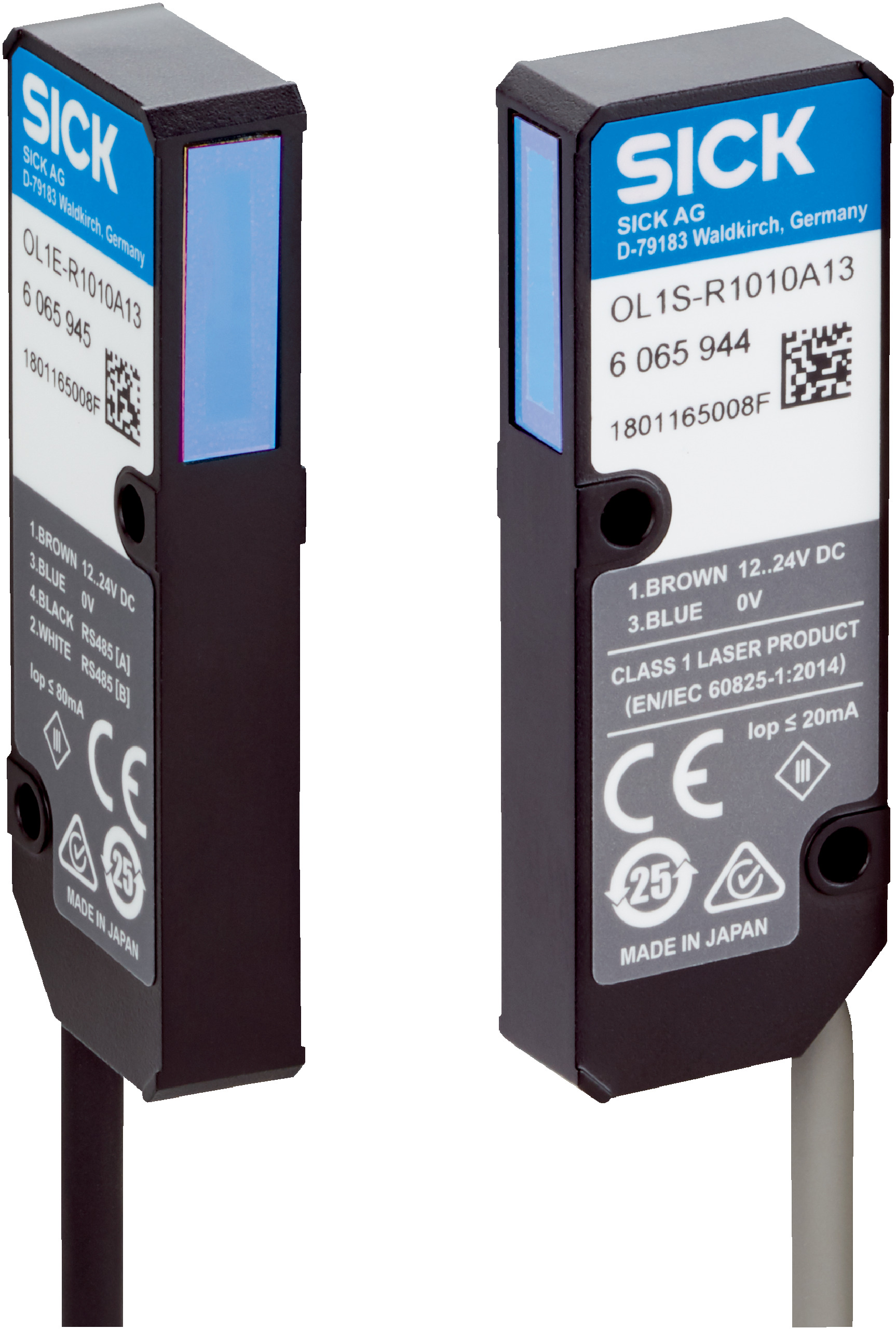

Laser Measurement Sensor OL1S/OL1E-R1010A13 | 10 mm Measuring Range | 0.2 mm Minimum Detectable Object | IP50 Rated | by SICK
The Laser Measurement Sensor OL1S/OL1E-R1010A13 offers a precise 10 mm measuring range and a minimum detectable object size of just 0.2 mm, making it ideal for industrial automation and quality control applications. With a repeatability of 10 µm and a response time of ≥ 0.5 ms, this sensor ensures fast and accurate measurements, even for transparent objects. Its IP50 rated enclosure guarantees durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 10 mm
- Installation distance: 0 mm to 300 mm (sender/receiver)
- Minimum detectable object: 0.2 mm
- Repeatability: 10 µm
- Linearity: ±40 µm
- Response time: ≥ 0.5 ms
- Light source: Visible red laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size: 3 mm x 14 mm
- Measurement modes: Edge detection, diameter/width measurement
- Adjustable average filter and sensitivity for transparent objects
- Supply voltage: 12 V DC to 24 V DC ±10%
- Power consumption: ≤ 0.96 W (sender), ≤ 0.24 W (receiver)
- Enclosure rating: IP50
- Protection class: III
- Connection: Cable with M8 male connector, 4-pin
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration and shock resistance compliant with EN 60068-2-6 and EN 60068-2-27
- Dimensions (H x L x W): 61mm x 21mm x 9.6mm
- Weight: 0.1 kg
Key Features
- Measuring range of 10 mm with high precision
- Minimum detectable object size of 0.2 mm
- Repeatability of 10 µm and linearity of ±40 µm
- Response time ≥ 0.5 ms for fast measurements
- Visible red laser light source, Laser class 1
- Adjustable measurement modes including edge detection and diameter/width measurement
- Sensitivity adjustment for transparent objects
- Serial communication interface for AOD1 evaluation unit
- One digital output (PNP/NPN selectable) and one analog current output (4 mA to 20 mA)
- Low power consumption (≤ 0.96 W sender, ≤ 0.24 W receiver)
- IP50 rated enclosure with aluminum die cast housing and glass window
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Precision measurement in industrial automation
- Edge detection and diameter/width measurement
- Measurement of transparent objects
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OL1S/OL1E-R1010A13 Laser Measurement Sensor is available for immediate purchase. Ideal for industrial automation and precision measurement applications.
