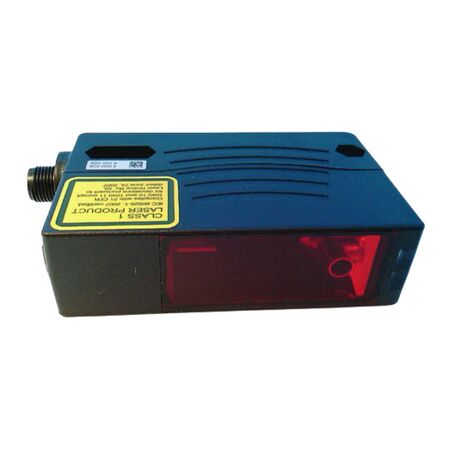

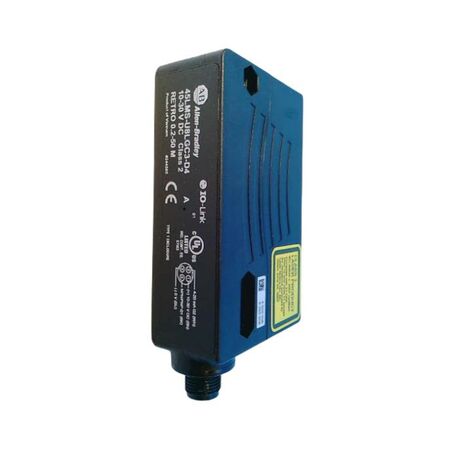

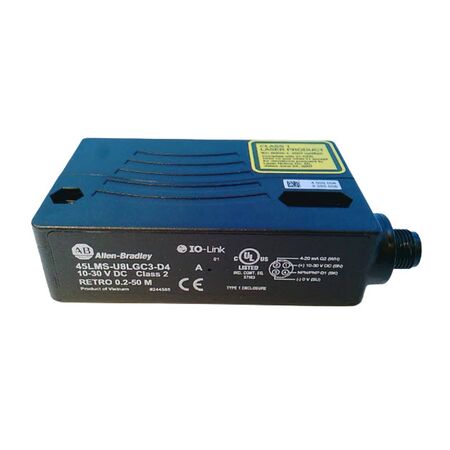

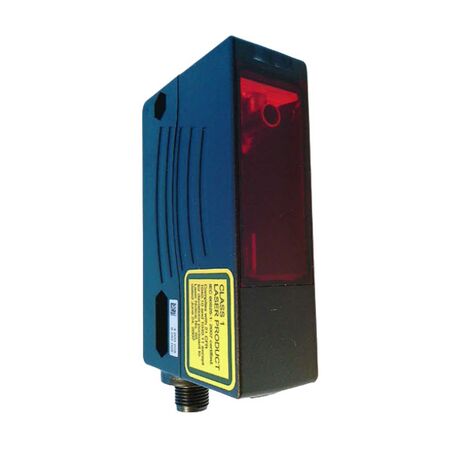

Laser Measurement Sensor | Class 2 Retroreflective | 0.2 to 50m Range | IO-Link & 4-20mA Output | by Allen-Bradley
The Laser Measurement Sensor by Allen-Bradley offers precise distance measurement from 0.2 to 50 meters, featuring a Class 2 laser for safe operation. Ideal for industrial automation and manufacturing process control, it includes selectable light and dark operate modes, along with 4-20 mA analog output and IO-Link communication for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Laser Class: Class 2
- Measurement Range: 0.2 to 50 meters
- Output: 4-20 mA analog and IO-Link push-pull

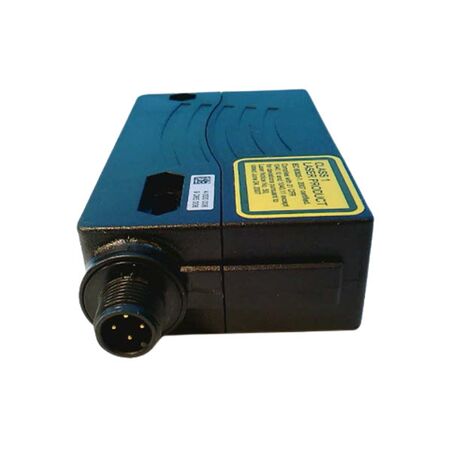

- Connection: 4-pin micro M12 quick disconnect
- Operating Modes: Light operate and dark operate
- Setup: Teach button for configuration
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.2 kg
Key Features
- Retroreflective laser measurement sensor
- Class 2 laser for safe operation
- Selectable light operate and dark operate modes
- 4-20 mA analog output and IO-Link push-pull communication
- Teach button for easy setup
- Measurement range from 0.2 to 50 meters
- 4-pin micro M12 quick disconnect
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper sensor alignment and configuration.
Applications
- Industrial automation for precise distance measurement
- Manufacturing process control
- Object detection and positioning
- Quality control systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact measurement reduces wear and tear on equipment
- Energy-efficient laser technology minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 45LMSU8LGC3D4 Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation and precise measurement applications.
