Laser Measurement Sensor | Diffuse Laser Class 1 | 4-20 mA Output | 0.2 to 8 Meters Range | by Allen-Bradley
The Laser Measurement Sensor from Allen-Bradley features a diffuse laser design with Class 1 safety, offering a measurement range of 0.2 to 8 meters. Ideal for industrial automation and object detection, it includes 4-20 mA analog output and IO-Link communication for seamless integration. With light operate and dark operate modes, this sensor is perfect for quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor Type: Diffuse laser measurement
- Laser Class: Class 1
- Output: 4-20 mA analog and IO-Link push-pull
- Measurement Range: 0.2 to 8 meters
- Connection: 4-pin micro M12 quick disconnect
- Operating Modes: Light operate and dark operate
- Configuration: Teach button
- Dimensions (H x L x W): 30mm x 80mm x 30mm
- Weight: 0.3 kg
Key Features
- Diffuse laser measurement sensor with Class 1 laser safety
- Light operate and dark operate modes
- 4-20 mA analog output and IO-Link push-pull communication
- Teach button for easy configuration
- Measurement range from 0.2 to 8 meters
- 4-pin micro M12 quick disconnect
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup and safety compliance.
Applications
- Industrial automation for distance measurement
- Object detection in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact measurement reduces wear and tear on equipment
- Energy-efficient laser technology minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now

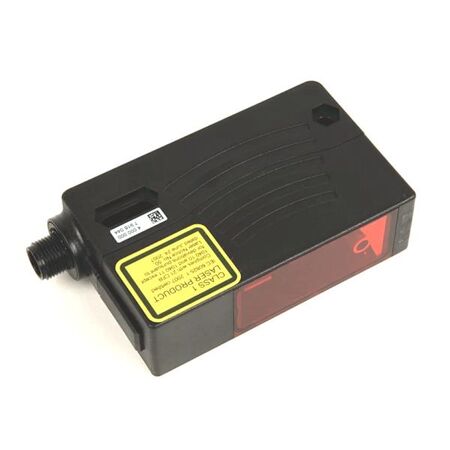

The Allen-Bradley 45LMSD8LGC1D4 Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation and measurement applications.
