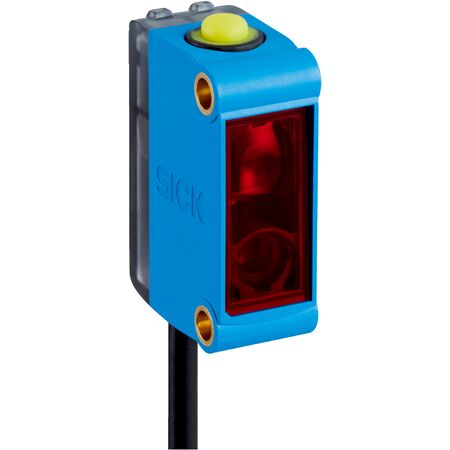

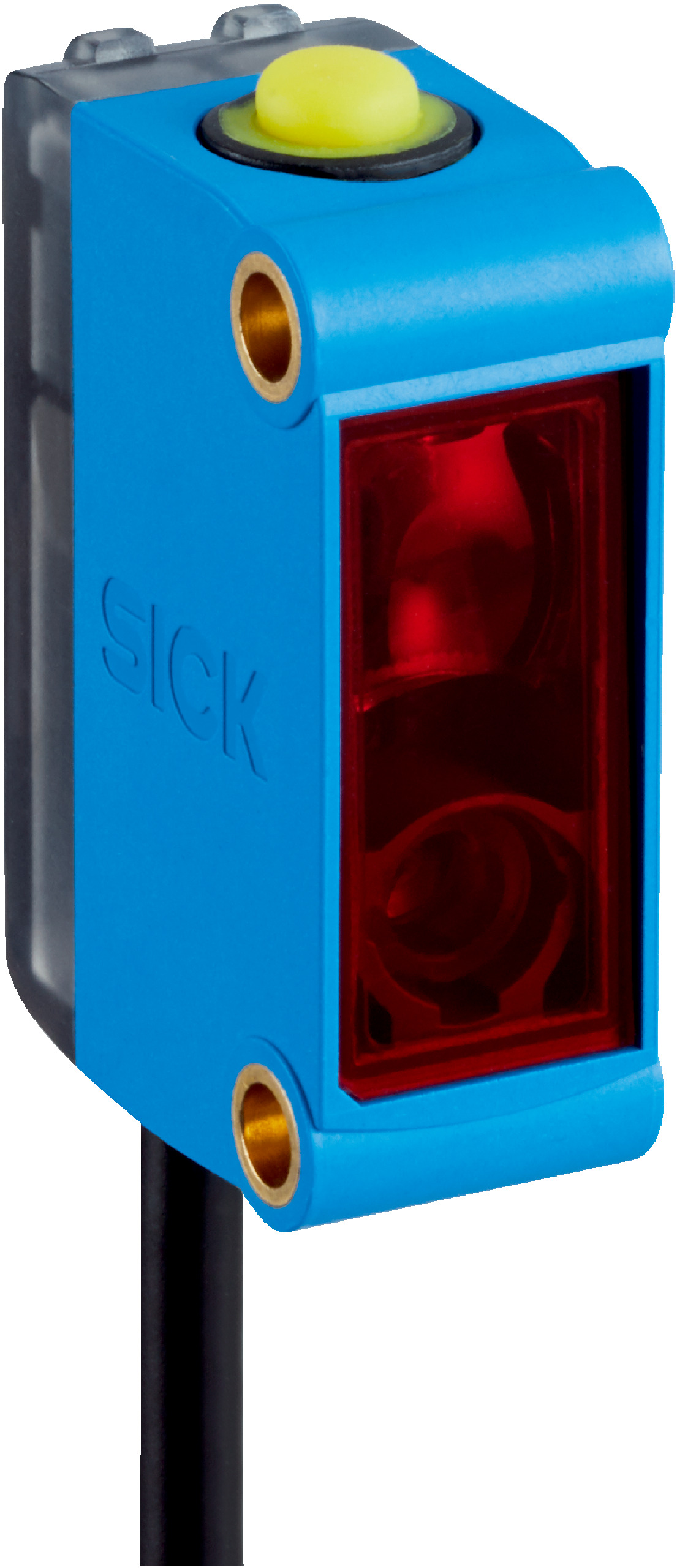

Laser Proximity Sensor | IO-Link Interface | IP67 Rated | 250 mm Sensing Distance | by SICK
The Laser Proximity Sensor KTM-LP557A2P features an IO-Link interface and a sensing distance of up to 250 mm, making it ideal for industrial automation and precise object detection. With a robust IP67 rating, this compact sensor ensures reliable performance in challenging environments, while its teach-in button allows for easy setup and adjustment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 250 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light spot size: Ø 1.8 mm at 250 mm
- Max. web speed: 10 m/s
- Adjustment: Teach-in button with 2-point teach-in static/dynamic and proximity to mark
- IO-Link V1.1 interface, 38.4 kbit/s data rate, 2.3 ms cycle time
- Digital outputs: 2 PNP outputs with light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 35 mA
- Switching frequency: 1.5 kHz
- Response time: 333 µs
- Accuracy: 0.15 mm
- Output current max: 100 mA
- Protection class: III, reverse polarity and short-circuit protected
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: ABS, Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.3 m
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Laser red light source with wavelength 680 nm and laser class I
- Sensing distance up to 250 mm with ±30 mm tolerance
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- IO-Link V1.1 interface with 38.4 kbit/s data transmission rate and 2.3 ms cycle time
- Two PNP digital outputs with light/dark switching mode
- High switching frequency of 1.5 kHz and response time of 333 µs
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male connector, 4-pin, 0.3 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for precise object detection
- Positioning and measurement in manufacturing processes
- Quality control and inspection systems
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
- Compliant with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-LP557A2P Laser Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
