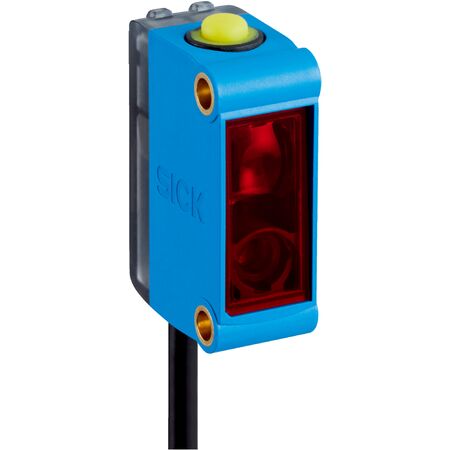

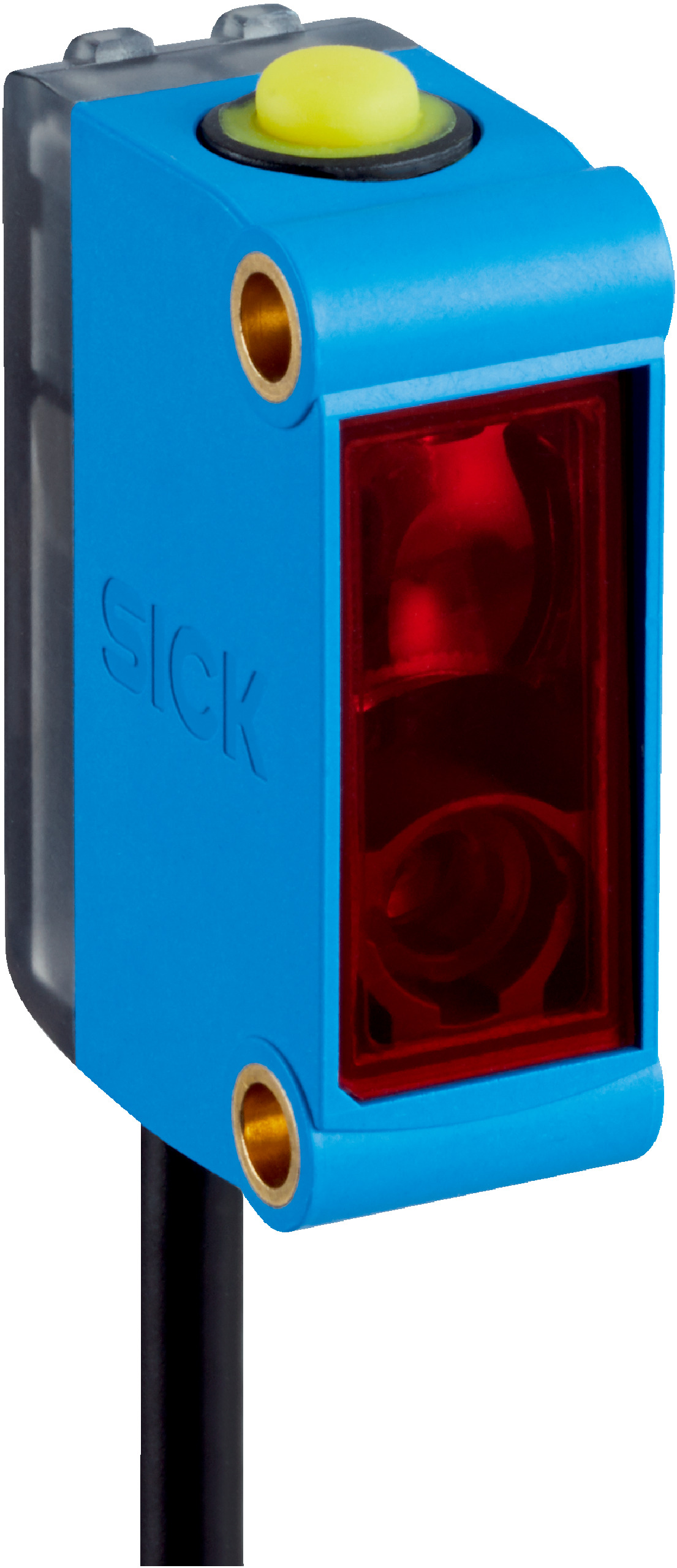

Laser Proximity Sensor KTM-LP227A2P | IO-Link Communication | IP67 Rated | by SICK
The Laser Proximity Sensor KTM-LP227A2P features a red laser light source with a 680 nm wavelength and a sensing distance of up to 50 mm, making it ideal for industrial automation and precise object detection. With IO-Link V1.1 communication and a high switching frequency of 4 kHz, this sensor ensures fast and reliable performance in quality control and high-speed web monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 50 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light spot size: Ø 1.7 mm at 50 mm distance
- Max web speed: 10 m/s
- Adjustment: Teach-in button with 2-point teach-in static/dynamic and proximity to mark
- IO-Link V1.1 interface with 38.4 kbit/s data rate and 2.3 ms cycle time
- Digital outputs: 2 PNP outputs, max 100 mA output current
- Switching frequency: 4 kHz, response time: 125 µs, jitter: 57 µs
- Accuracy: 0.08 mm, switching mode: light/dark switching
- Protection class: III, circuit protection including reverse polarity and short-circuit
- Housing material: ABS, optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.3 m
- Operating temperature: -20 °C to +45 °C, storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Laser red light source with 680 nm wavelength
- Sensing distance up to 50 mm with ±30 mm tolerance
- IO-Link V1.1 communication with 38.4 kbit/s data rate
- Two digital PNP outputs with light/dark switching mode
- High switching frequency of 4 kHz and fast response time of 125 µs
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 0.3 m length
- LED indicators for power and switching output status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and sensor outputs.
Applications
- Industrial automation for precise object detection
- Quality control and positioning in manufacturing
- High-speed web monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS housing and PMMA optics reduce material waste
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-LP227A2P laser sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
