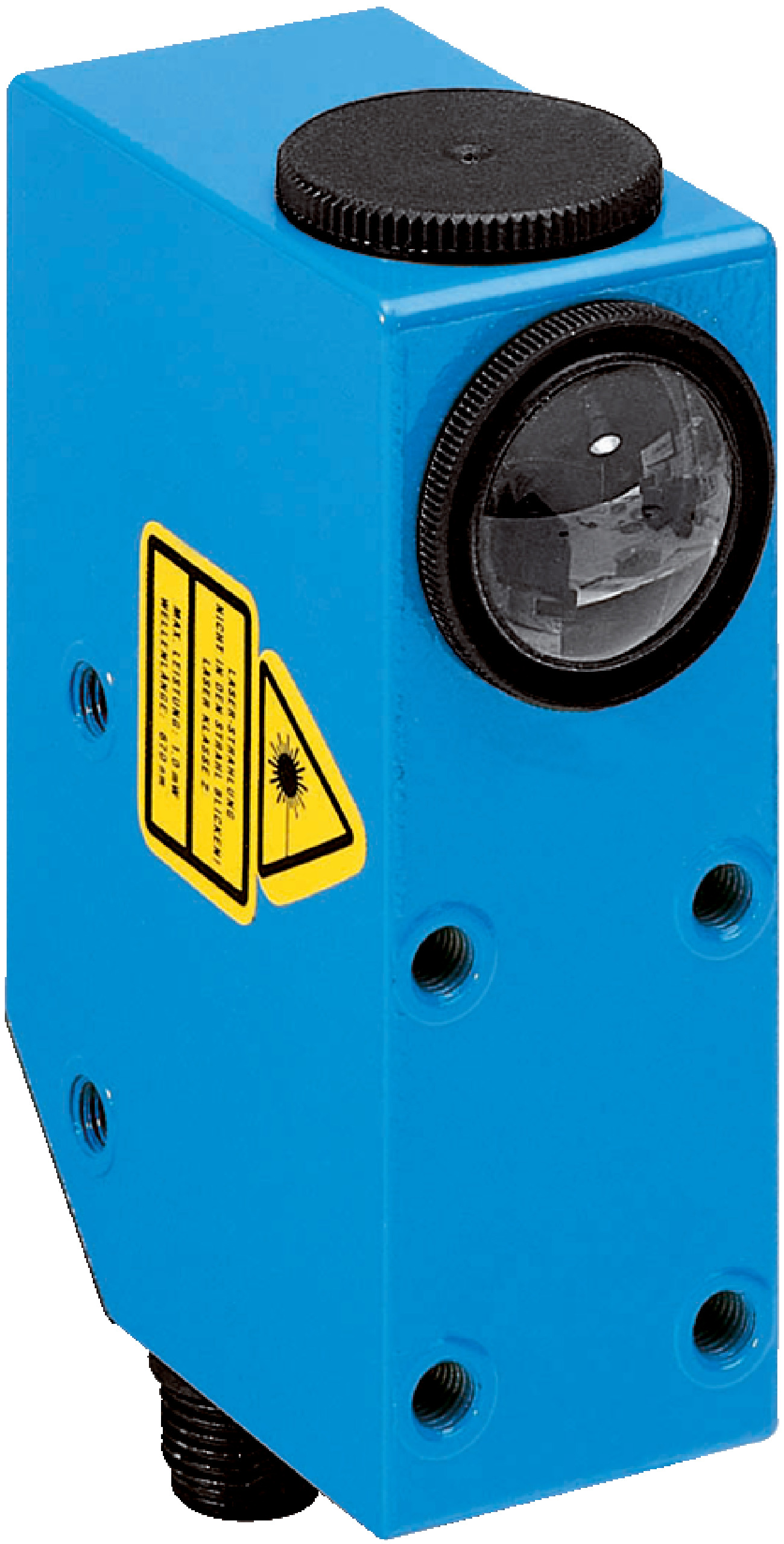

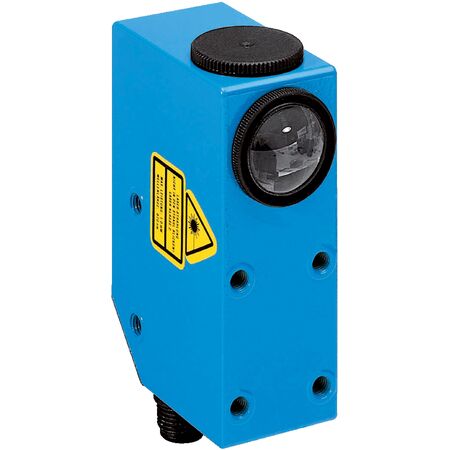

Laser Proximity Sensor KT8L-P3756 | 150 mm Sensing Distance | Red Laser Light Source | IP67 Rated | by SICK
The KT8L-P3756 Laser Proximity Sensor is designed for precise object detection and positioning in industrial automation. With a sensing distance of up to 150 mm and a red laser light source at 655 nm, it ensures reliable performance. Ideal for manufacturing process control and robotics, this sensor features a high switching frequency of 17 kHz and an IP67 rated housing for robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Proximity Sensor KT8L-P3756 | 150 mm Sensing Distance | Red Laser Light Source | IP67 Rated | by SICK
Brand: SICK
SKU: 1041351
Alternatively Known As: KT8L-P3756 Laser Proximity Sensor, SICK Laser Sensor KT8L, PNP Output Laser Sensor
Technical Specifications
- Sensing distance: ≤ 150 mm with tolerance -120 mm / +650 mm
- Light source: Red laser, 655 nm wavelength, Laser class II
- Light spot size: Ø 3 mm, round spot
- Operating distance: 30 mm to 600 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 80 mA
- Switching frequency: 17 kHz
- Response time: 30 µs
- Switching output: PNP, max output current 100 mA
- Protection class: II, IP67 enclosure rating
- Housing material: Zinc diecast, optics material: Glass
- Connection type: M12, 5-pin plug
- Operating temperature: -10 °C to +45 °C
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 150 mm with tolerance from -120 mm to +650 mm
- Red laser light source with 655 nm wavelength
- Automatic drift correction for stable operation
- Teach-in button for easy adjustment with static and dynamic modes
- High switching frequency of 17 kHz and fast response time of 30 µs
- IP67 rated zinc diecast housing for robust protection
- PNP switching output with short-circuit and reverse polarity protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct setup and compliance with safety standards.
Applications
- Industrial automation for object detection and positioning
- Manufacturing process control
- Robotics and material handling
- Quality control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable housing reduces replacement frequency and waste
- Low power consumption with efficient electronics
- Long operational life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KT8L-P3756 Laser Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
