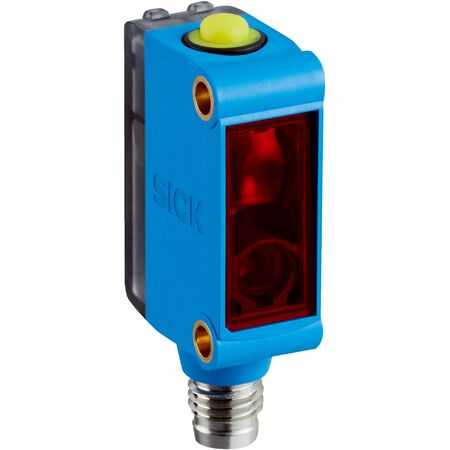

Laser Proximity Sensor KTM-LN22181P | Red Laser Light Source | IP67 Rated | by SICK
The Laser Proximity Sensor KTM-LN22181P features a red laser light source with a wavelength of 680 nm, providing a sensing distance of up to 50 mm with ±30 mm tolerance. Ideal for industrial automation, this sensor is designed for precise object detection and quality control in manufacturing lines. With a high switching frequency of 4 kHz and an IP67 rated enclosure, it ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 50 mm with ±30 mm tolerance
- Light source: Red laser, wavelength 680 nm, Laser class I
- Light emission: Long side of housing with Ø 1.7 mm light spot size
- Max. web speed: 10 m/s
- Adjustment: Teach-in button with 2-point teach-in static/dynamic modes
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V ripple
- Current consumption: < 35 mA
- Switching frequency: 4 kHz
- Response time: 125 µs
- Accuracy: 0.08 mm
- Switching output: NPN, max output current 100 mA
- Protection class: III with reverse polarity and short-circuit protection
- Connection type: Male connector M8, 4-pin
- Operating temperature: -20 °C to +45 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with wavelength 680 nm
- Sensing distance up to 50 mm with ±30 mm tolerance
- Teach-in button for easy adjustment with 2-point teach-in modes
- High switching frequency of 4 kHz and fast response time of 125 µs
- NPN switching output with light/dark switching mode
- IP67 rated enclosure for dust and water protection
- LED indicators for power and output status
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper operation and compliance with safety standards.
Applications
- Industrial automation for object detection
- Positioning and measurement in manufacturing lines
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing maintenance waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-LN22181P laser sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
