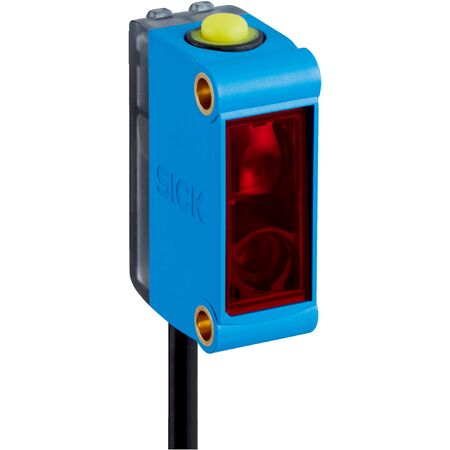

Laser Proximity Sensor KTM-LN22182P | Red Laser Light Source | IP67 Rated | by SICK
The Laser Proximity Sensor KTM-LN22182P features a compact design with a red laser light source and a sensing distance of up to 50 mm, making it ideal for industrial automation and precise object detection. With a high switching frequency of 4 kHz and fast response time of 125 µs, this sensor ensures reliable performance in quality control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 50 mm with ±30 mm tolerance
- Light source: Red laser, wavelength 680 nm, Laser class I
- Light emission: Long side of housing, light spot size Ø 1.7 mm at 50 mm
- Max. web speed: 10 m/s
- Adjustment: Teach-in button with 2-point teach-in static/dynamic and proximity to mark ET
- Supply voltage: 10 V DC to 30 V DC with ripple ≤ 5 V pp
- Current consumption: < 35 mA
- Switching frequency: 4 kHz
- Response time: 125 µs
- Accuracy: 0.08 mm
- Switching output: NPN, light/dark switching mode, max output current 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS, Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.3 m
- Operating temperature: -20 °C to +45 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with wavelength 680 nm
- Sensing distance up to 50 mm with ±30 mm tolerance
- Teach-in button for easy adjustment with 2-point teach-in modes
- High switching frequency of 4 kHz and fast response time of 125 µs
- NPN switching output with light/dark switching mode
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 0.3 m length
- LED indicators for power and output status
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and positioning
- Quality control in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing maintenance and replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-LN22182P laser sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
