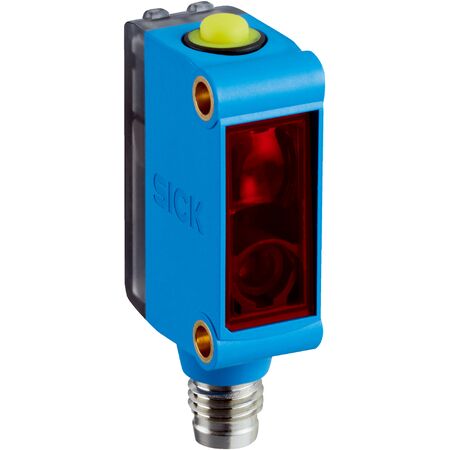

Laser Proximity Sensor KTM-LN227A1P | Red Laser 680nm | IP67 Rated | 50mm Sensing Distance | by SICK
The Laser Proximity Sensor KTM-LN227A1P features a red laser light source with a 680 nm wavelength, providing precise sensing up to 50 mm with a ±30 mm tolerance. Ideal for industrial automation, this sensor is equipped with an IO-Link V1.1 interface for seamless communication and high switching frequency of 4 kHz. With an IP67 rating, it ensures reliable performance in challenging environments, making it perfect for quality control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 50 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light emission: Long side of housing with 1.7 mm diameter spot
- Max web speed: 10 m/s
- Adjustment: Teach-in button with 2-point teach-in modes
- IO-Link V1.1 interface with 38.4 kbit/s data rate and 2.3 ms cycle time
- Digital outputs: 2 NPN outputs, max 100 mA current
- Supply voltage: 10 V DC to 30 V DC with ≤5 V ripple
- Switching frequency: 4 kHz, response time 125 µs, jitter 57 µs
- Accuracy: 0.08 mm
- Protection class: III, IP67 enclosure rating
- Connection: Male M8, 4-pin connector
- Operating temperature: -20 °C to +45 °C
- Storage temperature: -40 °C to +70 °C
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Laser red light source with 680 nm wavelength
- Sensing distance up to 50 mm with ±30 mm tolerance
- IO-Link V1.1 communication with 38.4 kbit/s data rate
- Two digital NPN outputs with light/dark switching mode
- High switching frequency of 4 kHz and fast response time of 125 µs
- IP67 rated enclosure for dust and water protection
- LED indicators for power and output status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and sensor outputs.
Applications
- Industrial automation for precise object detection
- Quality control and positioning in manufacturing
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption (<35 mA)
- Durable ABS housing and PMMA optics reduce material waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK KTM-LN227A1P laser sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
