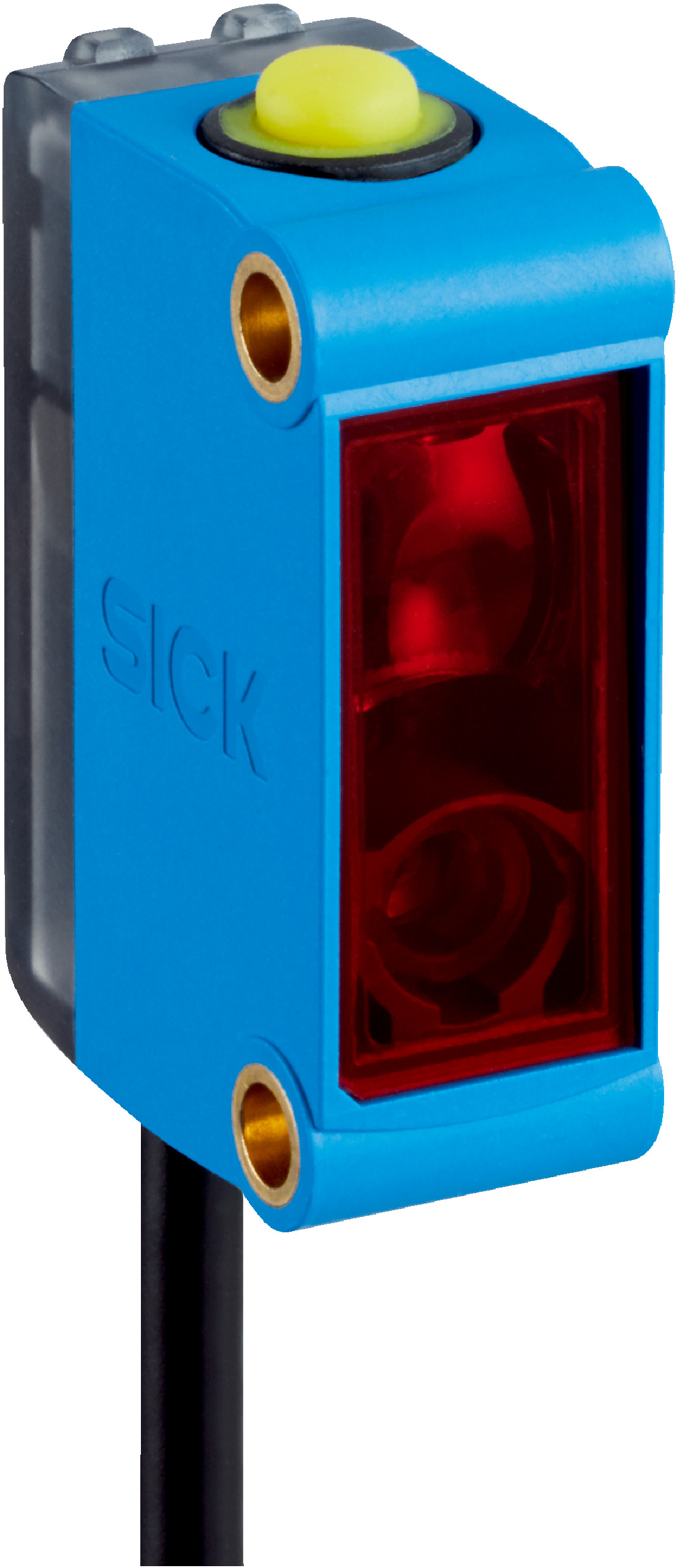

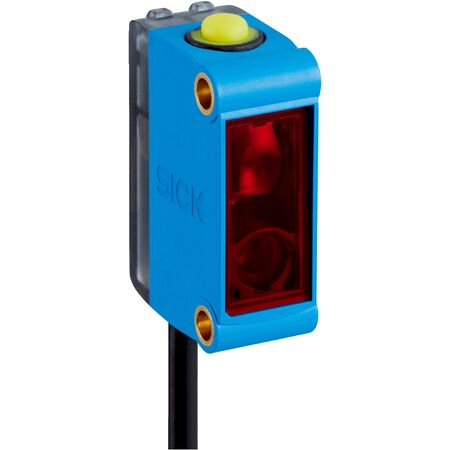

Laser Proximity Sensor KTM-LN227A2P | IO-Link Communication | IP67 Rated | by SICK
The Laser Proximity Sensor KTM-LN227A2P features a red laser light source with a 680 nm wavelength and a sensing distance of up to 50 mm, making it ideal for industrial automation and precise object detection. With IO-Link V1.1 communication and a high switching frequency of 4 kHz, this sensor ensures reliable performance in quality control and material handling applications. Its durable IP67 rated housing provides excellent protection against dust and water, ensuring longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 50 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light emission: Long side of housing with Ø 1.7 mm spot size
- Max. web speed: 10 m/s
- Adjustment: Teach-in button with 2-point teach-in static/dynamic and proximity to mark
- IO-Link V1.1 interface with 38.4 kbit/s data rate, 2.3 ms cycle time, 16 Bit process data length
- Digital outputs: 2 NPN outputs, max 100 mA output current
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V pp ripple
- Switching frequency: 4 kHz, response time: 125 µs, jitter: 57 µs
- Accuracy: 0.08 mm, switching mode: light/dark switching
- Protection class: III, circuit protection for reverse polarity and short-circuit
- Housing material: ABS, optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.3 m
- Operating temperature: -20 °C to +45 °C, storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Laser red light source with wavelength 680 nm and laser class I
- Sensing distance up to 50 mm with ±30 mm tolerance
- IO-Link V1.1 communication with 38.4 kbit/s data rate and 2.3 ms cycle time
- Two digital NPN switching outputs with light/dark switching mode
- High switching frequency of 4 kHz and response time of 125 µs
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 0.3 m length
- LED indicators for power and switching output status
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise object detection
- Quality control and positioning in manufacturing
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-LN227A2P laser sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
