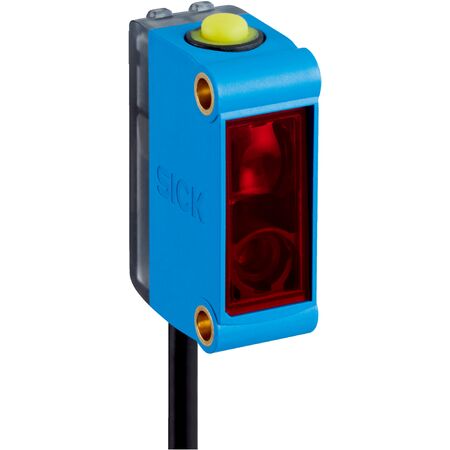

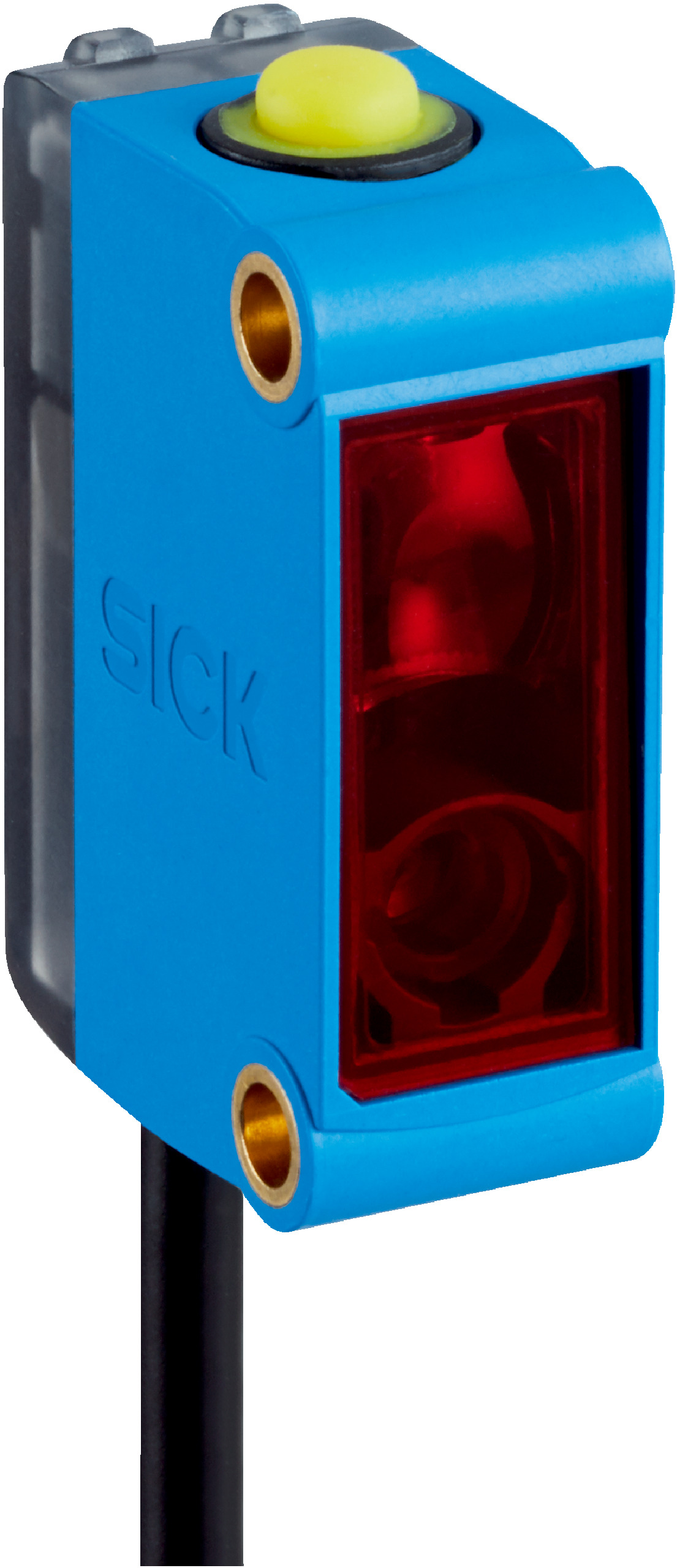

Laser Proximity Sensor KTM-LN55182P | Red Laser Light Source | IP67 Rated | 250 mm Sensing Distance | by SICK
The Laser Proximity Sensor KTM-LN55182P features a red laser light source with a 680 nm wavelength and a sensing distance of up to 250 mm, making it ideal for industrial automation and precise object detection. With a high switching frequency of 1.5 kHz and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for manufacturing lines and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 250 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light spot size: Ø 1.8 mm at 250 mm distance
- Max. web speed: 10 m/s
- Adjustment: Teach-in button with 2-point teach-in static/dynamic and proximity to mark ET
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V pp ripple
- Current consumption: < 35 mA
- Switching frequency: 1.5 kHz
- Response time: 333 µs
- Accuracy: 0.15 mm
- Switching output: NPN, light/dark switching, max output current 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS, Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.3 m
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with 680 nm wavelength
- Sensing distance up to 250 mm with ±30 mm tolerance
- Teach-in button for easy adjustment with 2-point teach-in modes
- High switching frequency of 1.5 kHz and fast response time of 333 µs
- NPN switching output with light/dark switching mode
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 0.3 m length
- LED indicators for power and output status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration according to industrial safety standards.
Applications
- Industrial automation for object detection
- Positioning and measurement in manufacturing lines
- Web speed monitoring up to 10 m/s
- Quality control and process monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing maintenance waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-LN55182P laser sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
