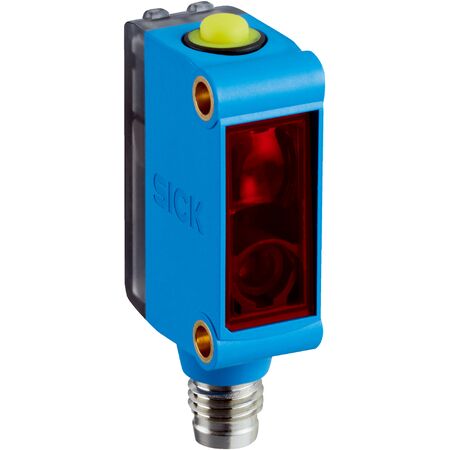

Laser Proximity Sensor KTM-LP22181P | Red Laser Light Source | IP67 Rated | 4 kHz Switching Frequency | by SICK
The Laser Proximity Sensor KTM-LP22181P features a compact design with a red laser light source and a sensing distance of up to 50 mm, making it ideal for industrial automation and precise object detection. With a high switching frequency of 4 kHz and an IP67 rating for dust and water protection, this sensor is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 50 mm with ±30 mm tolerance
- Light source: Red laser, wavelength 680 nm, Laser class I
- Switching frequency: 4 kHz
- Response time: 125 µs
- Current consumption: < 35 mA
- Output: PNP switching output, max 100 mA
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V ripple
- Housing material: ABS, Optics material: PMMA
- Connection: Male M8, 4-pin connector
- Protection class: III, Enclosure rating: IP67
- Operating temperature: -20 °C to +45 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with wavelength 680 nm
- Sensing distance up to 50 mm with ±30 mm tolerance
- Teach-in button for easy adjustment with 2-point teach-in modes
- High switching frequency of 4 kHz and fast response time of 125 µs
- IP67 rated enclosure for dust and water protection
- LED indicators for power and output status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Positioning and measurement in manufacturing lines
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS housing reduces material waste and extends product life
- IP67 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK KTM-LP22181P laser sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
