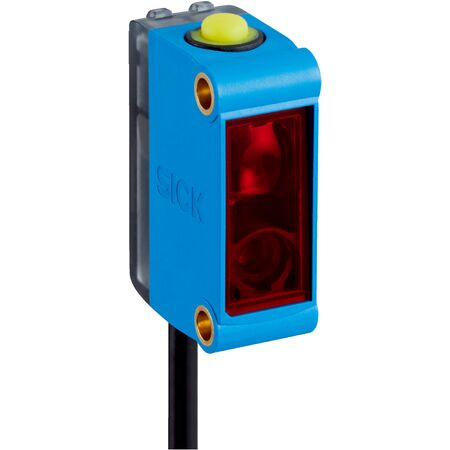

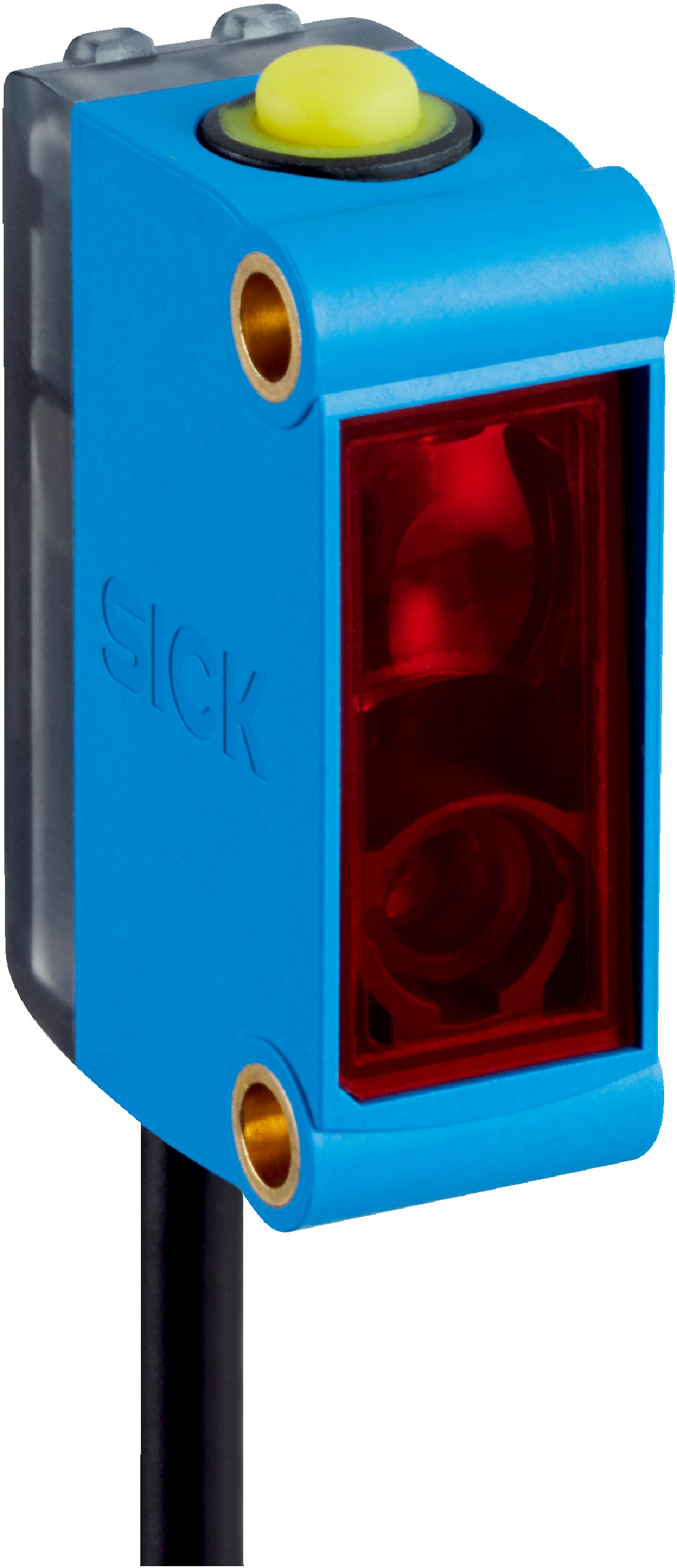

Laser Proximity Sensor KTM-LP22182P | Red Laser Light Source | IP67 Rated | 4 kHz Switching Frequency | by SICK
The Laser Proximity Sensor KTM-LP22182P features a red laser light source with a 680 nm wavelength and a sensing distance of up to 50 mm, making it ideal for industrial automation and precise object detection. With a high switching frequency of 4 kHz and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 50 mm with ±30 mm tolerance
- Light source: Red laser, wavelength 680 nm, Laser class I
- Light spot size: Ø 1.7 mm at 50 mm distance
- Max. web speed: 10 m/s
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V ripple
- Current consumption: < 35 mA
- Switching frequency: 4 kHz
- Response time: 125 µs
- Accuracy: 0.08 mm
- Switching output: PNP, max output current 100 mA
- Switching mode: Light/dark switching
- Protection class: III with reverse polarity and short-circuit protection
- Operating temperature: –20 °C to +45 °C
- Storage temperature: –40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with 680 nm wavelength
- Sensing distance up to 50 mm with ±30 mm tolerance
- Teach-in button for easy adjustment with 2-point teach-in modes
- High switching frequency of 4 kHz and fast response time of 125 µs
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 0.3 m length
- LED indicators for power and output status
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Positioning and measurement in manufacturing
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing maintenance waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-LP22182P laser sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
