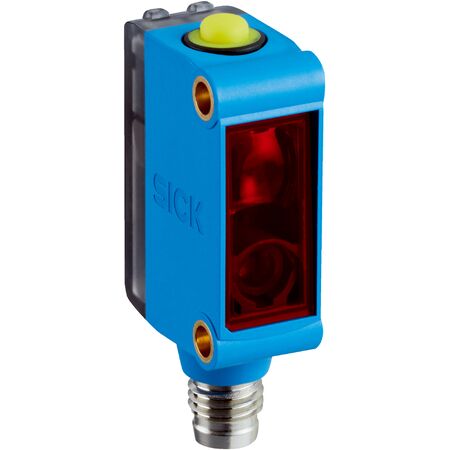

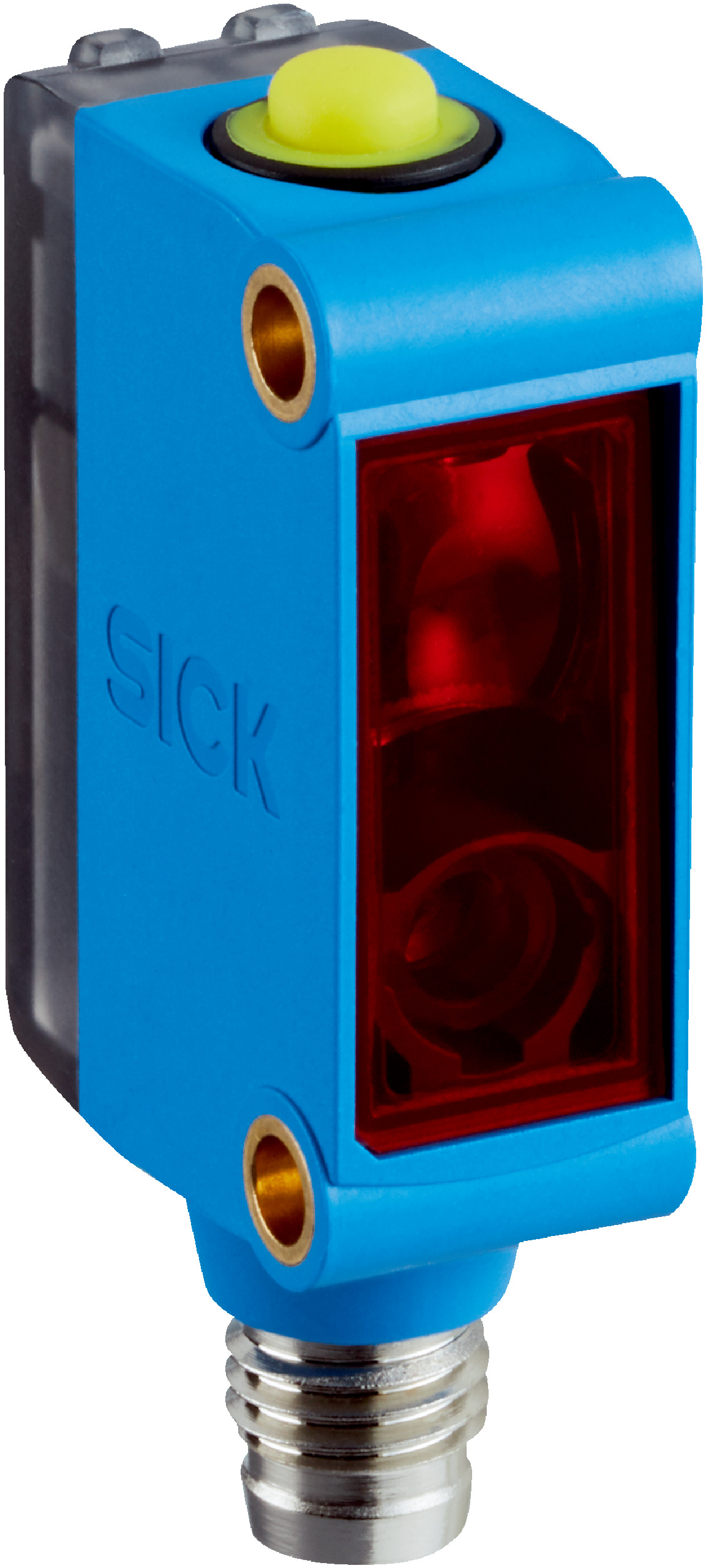

Laser Proximity Sensor KTM-LP55181P | Red Laser Light Source | IP67 Rated | 250 mm Sensing Distance | by SICK
The Laser Proximity Sensor KTM-LP55181P features a compact design with a red laser light source and a sensing distance of up to 250 mm, making it ideal for industrial automation and precise object detection. With a high switching frequency of 1.5 kHz and an IP67 rating for dust and water protection, this sensor is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 250 mm with ±30 mm tolerance
- Light source: Red laser, wavelength 680 nm, laser class I
- Switching output: PNP, max output current 100 mA
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V ripple
- Current consumption: < 35 mA
- Switching frequency: 1.5 kHz
- Response time: 333 µs
- Accuracy: 0.15 mm
- Protection class: III
- Enclosure rating: IP67
- Connection: Male M8, 4-pin connector
- Housing material: ABS, Optics material: PMMA
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with wavelength 680 nm
- Sensing distance up to 250 mm with ±30 mm tolerance
- Teach-in button for easy adjustment with 2-point teach-in modes
- High switching frequency of 1.5 kHz and fast response time of 333 µs
- IP67 rated enclosure for dust and water protection
- LED indicators for power and switching output status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Positioning and measurement in manufacturing
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing maintenance waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTM-LP55181P laser sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
