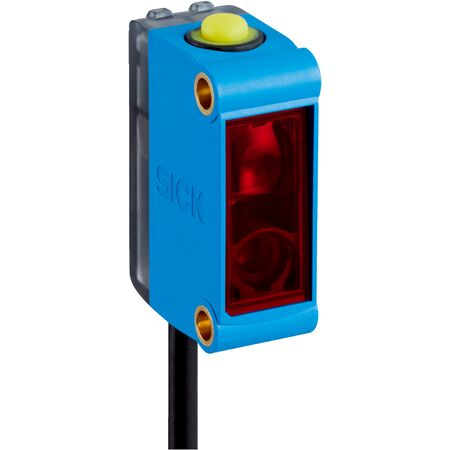

Laser Proximity Sensor KTM-LP55182P | Red Laser Light Source | IP67 Rated | 250 mm Sensing Distance | by SICK
The Laser Proximity Sensor KTM-LP55182P features a red laser light source with a 680 nm wavelength and a sensing distance of up to 250 mm, making it ideal for industrial automation and precise object detection. With a high switching frequency of 1.5 kHz and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for manufacturing lines and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 250 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light spot size: Ø 1.8 mm at 250 mm distance
- Max. web speed: 10 m/s
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V ripple
- Current consumption: < 35 mA
- Switching frequency: 1.5 kHz
- Response time: 333 µs
- Accuracy: 0.15 mm
- Switching output: PNP, max output current 100 mA
- Switching mode: Light/dark switching
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with 680 nm wavelength
- Sensing distance up to 250 mm with ±30 mm tolerance
- Teach-in button for easy adjustment with 2-point teach-in modes
- High switching frequency of 1.5 kHz and fast response time of 333 µs
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 0.3 m length
- LED indicators for power and switching output status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Positioning and measurement in manufacturing lines
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-LP55182P laser sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
