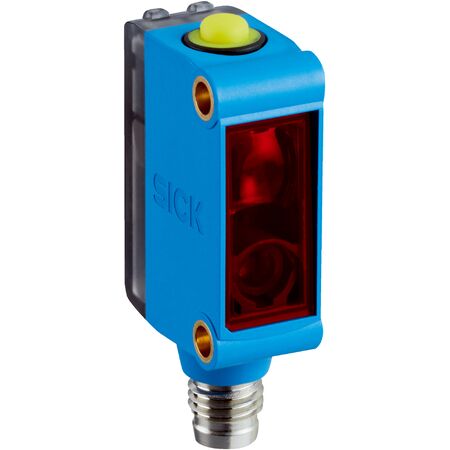

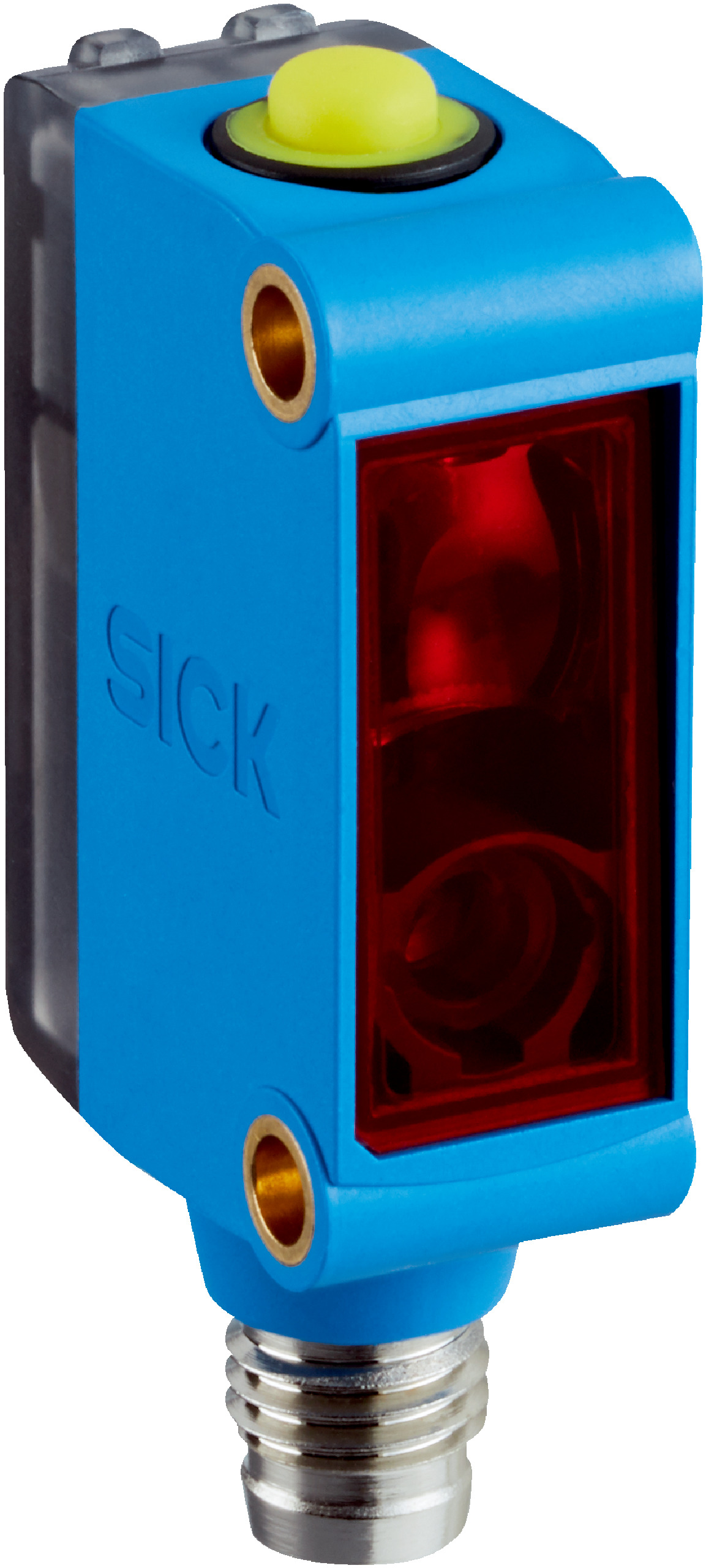

Laser Proximity Sensor KTM-LP557A1P | IP67 Rated | Red Laser 680nm | 250mm Sensing Distance | by SICK
The Laser Proximity Sensor KTM-LP557A1P features a red laser light source with a 680 nm wavelength and a sensing distance of up to 250 mm, making it ideal for industrial automation and precise object detection. With an IP67 rated enclosure, it ensures durability in harsh environments, while its high switching frequency of 1.5 kHz and fast response time of 333 µs enhance performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 250 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light spot size: Ø 1.8 mm at 250 mm
- Max web speed: 10 m/s
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 35 mA
- Switching frequency: 1.5 kHz
- Response time: 333 µs
- Switching output: PNP, max output current 100 mA
- Protection class: III
- Enclosure rating: IP67
- Connection: Male M8, 4-pin connector
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Red laser light source with 680 nm wavelength
- Sensing distance up to 250 mm with ±30 mm tolerance
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- IO-Link V1.1 communication with 38.4 kbit/s data rate
- Two PNP digital outputs with light/dark switching mode
- High switching frequency of 1.5 kHz and response time of 333 µs
- IP67 rated enclosure for dust and water protection
- LED indicators for power and switching output status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise object detection
- Positioning and measurement in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-LP557A1P Laser Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
