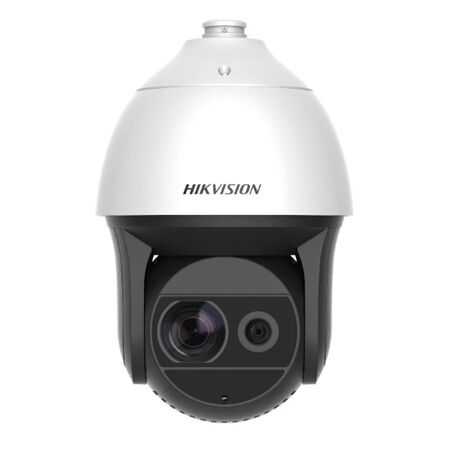

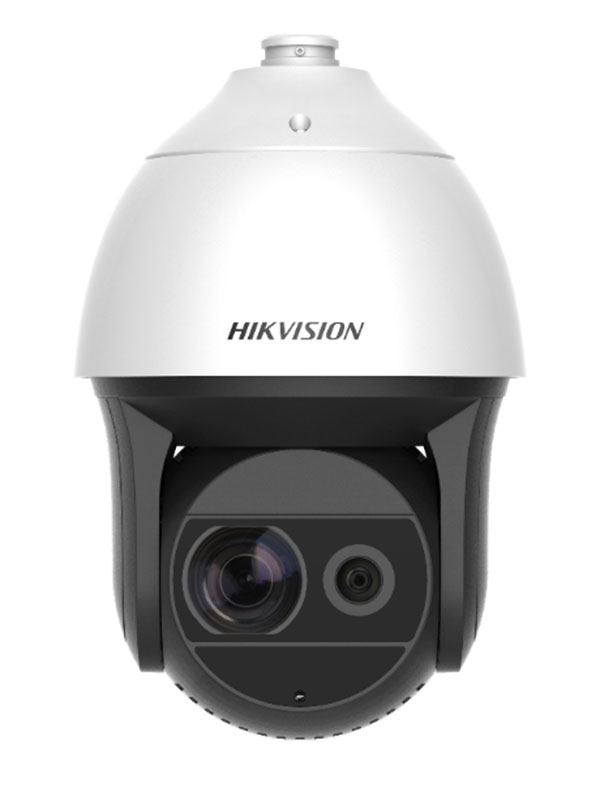

Laser PTZ Camera 4MP 36X Hikvision
Hikvision laser PTZ camera features 4MP resolution, laser illumination and 36X zoom. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DarkFighter Laser PTZ Camera, Hikvision 4MP 36x Laser Speed Dome, Hikvision DS-2DF8436I5X-AEL(W)
Technical Specifications
- Image Sensor: 1/1.8 inch progressive scan CMOS
- Maximum Resolution: 2560 x 1440 pixels
- Optical Zoom: 36x
- Digital Zoom: 16x
- Laser Illumination Distance: Up to 500 m
- Minimum Illumination: 0.002 lux colour; 0.0002 lux black and white
- Video Compression: H.265+, H.265, H.264+, H.264
- Power Supply: 24 VAC or Hi-PoE
- Maximum Power Consumption: 60 W via 24 VAC; 50 W via Hi-PoE
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Ingress Protection: IP67
- Impact Protection: IK10 without wiper
- Operating Temperature: -40°C to +70°C
- Audio: One audio input and one audio output
- Storage: MicroSD, microSDHC and microSDXC support up to 256 GB
- Protocols and Integration: ONVIF, Hikvision SDK, ISAPI and third-party platform support
- Dimensions (H x L x W): 410mm x 266.6mm x 266.6mm
- Weight: 8 kg
Key Features
- 4MP imaging for detailed surveillance video
- 36x optical zoom for long-range observation
- Up to 500 m laser illumination for low-light and night-time monitoring
- Pan, tilt and zoom control for wide-area coverage
- Deep-learning target classification and auto-tracking functions
- H.265+ compression to reduce bandwidth and storage requirements
- Rapid focus and optical defog functions
- IP67 weather protection for outdoor installations
- IK10 impact protection when configured without a wiper
- Supports both 24 VAC and Hi-PoE power options
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical contractor. Mains-connected power supplies, cabling and associated electrical work must comply with AS/NZS 3000 and manufacturer instructions. Correct mounting, earthing, surge protection and network configuration are required for outdoor PTZ installations.
Applications
- Commercial and industrial CCTV systems
- Perimeter and boundary surveillance
- Transport infrastructure and road monitoring
- Ports, airports and large outdoor facilities
- Warehouses, logistics yards and car parks
- Long-range security monitoring requiring laser illumination
Standards & Compliance
- AS/NZS 3000:2018 for electrical installation and associated wiring
- AS/NZS 61000.6.1 and AS/NZS 61000.6.3 are applicable EMC references for CCTV installations where relevant
- AS 4806.1:2023 provides a relevant Australian CCTV management and operation reference
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and storage requirements compared with older compression formats
- IP67 weather protection and robust construction support extended service life, reducing replacement waste
- Electronic components should be recycled through an appropriate e-waste recycling programme at end of service life
Warranty Information
Hikvision Australia lists a five-year warranty for qualifying premium project-oriented Ultra Series PTZ cameras manufactured after 1 March 2022. Confirm eligibility for this model and serial number with the authorised Australian distributor; Hikvision's standard warranty policy also lists 36 months for applicable camera categories.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; confirm current model availability and regional support before ordering.
