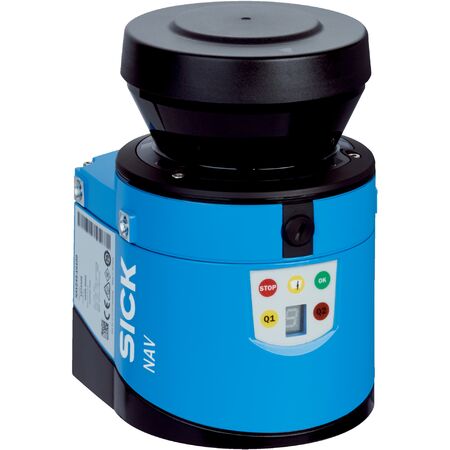

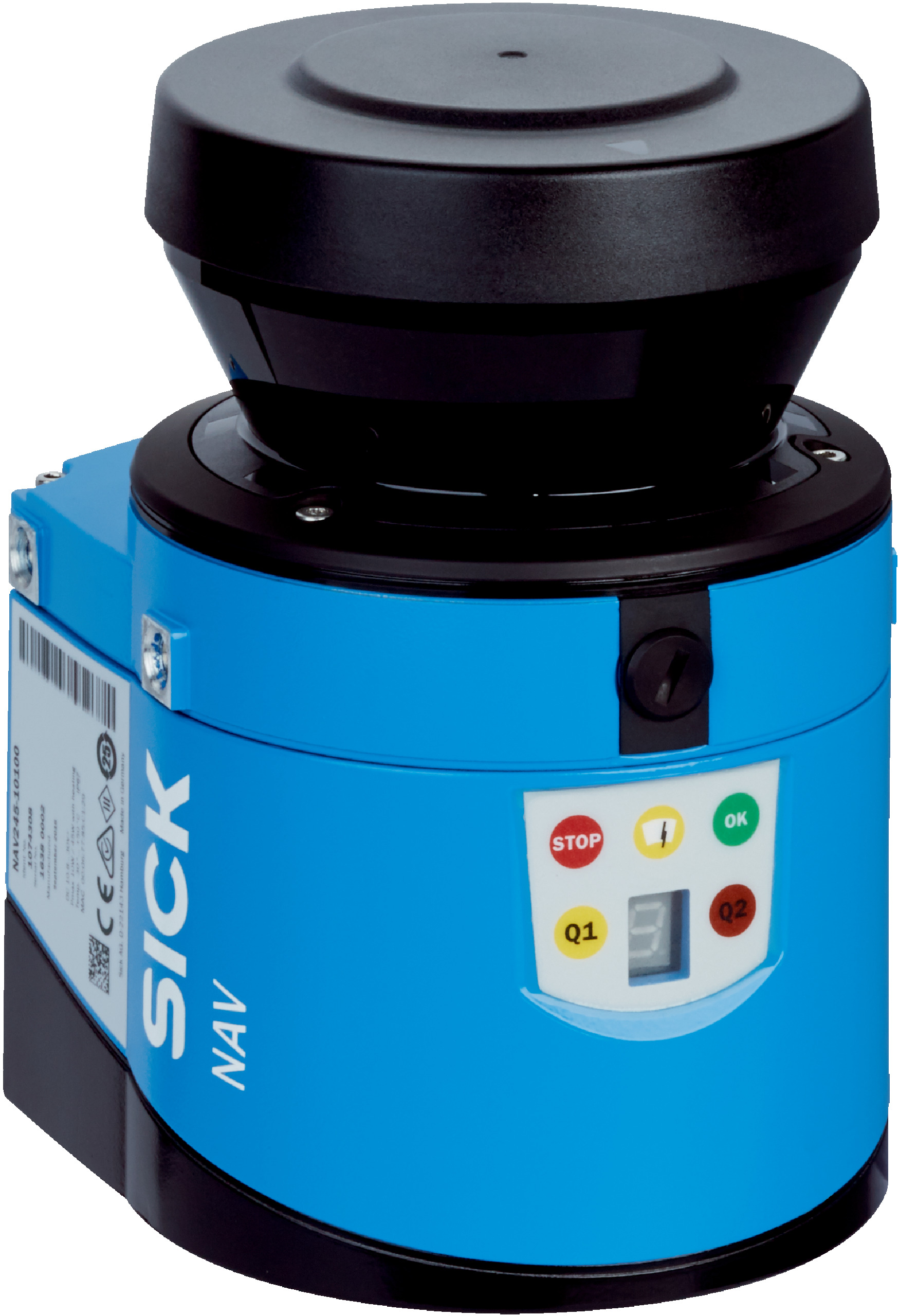

Laser Scanning Sensor NAV245-10100 | 270° Aperture Angle | 25 Hz Scanning Frequency | IP67 Rated | by SICK
The NAV245-10100 laser scanning sensor is designed for precise detection in both outdoor and indoor environments. With a 270° aperture angle and a high scanning frequency of ≥ 25 Hz, it ensures accurate measurements up to 50 m. Built for reliability, this sensor features a robust aluminum housing with an IP67 rating, making it ideal for industrial applications where durability and performance are essential.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Laser diode (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Scanning frequency: ≥ 25 Hz
- Angular resolution: 0.001° on reflectors, 0.25° on raw/contour data
- Working range: 0.5 m to 50 m (30 m on reflectors)
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 50 m
- Connection type: 4 x M12 male/female connectors
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: Typical 8 W, heating 35 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Weight: 1.1 kg
- MTBF: > 100 years
- Systematic error: Typical ± 10 mm (RDI), ± 30 mm (Contour)
- Statistical error: Typical 8 mm (RDI), 12 mm (Contour)
- Temperature drift: Typical 0.1 mm/K
- Interfaces: Ethernet (TCP/IP), Serial (RS-232)
- Data transmission rate: 9.6 kBaud to 115.2 kBaud
- Optical indicators: 4 LED
- Operating temperature: –30 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- Relative humidity: ≤ 85%, non-condensing
- Dimensions (H x L x W): 163mm x 124.9mm x 102mm
- Weight: 1.1 kg
