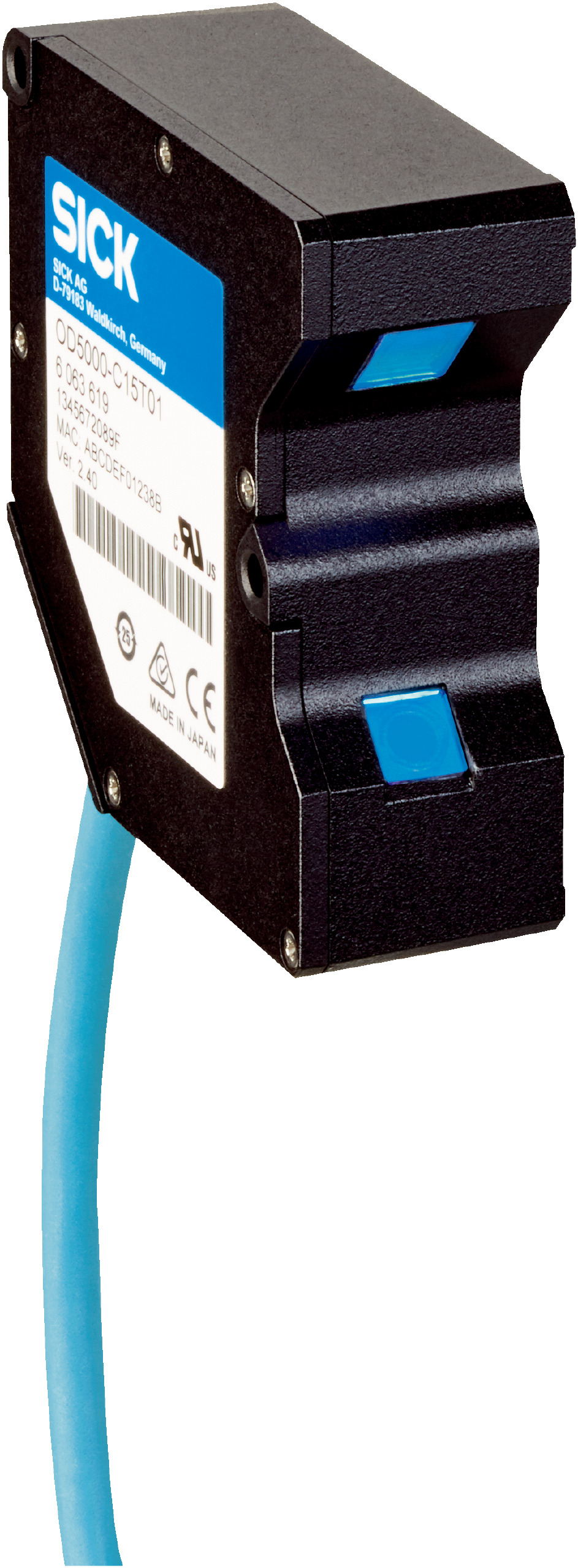

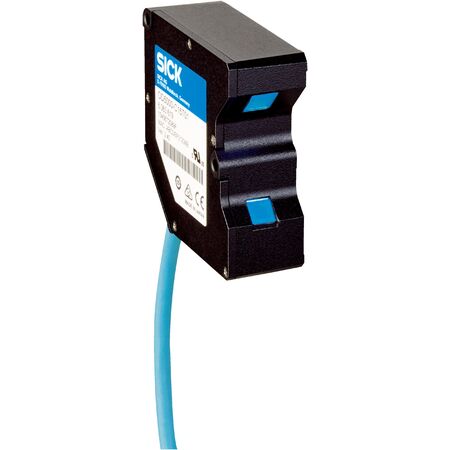

Laser Thickness Sensor OD5000-C15T01 | 14 mm to 16 mm Range | 0.01 µm Repeatability | IP67 Rated | by SICK
The Laser Thickness Sensor OD5000-C15T01 is designed for precise thickness measurement of transparent materials, featuring a measuring range of 14 mm to 16 mm and an impressive repeatability of 0.01 µm. With a fast response time of ≥ 12.5 µs and an IP67 rated enclosure, this sensor is perfect for industrial quality control and manufacturing processes, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 14 mm to 16 mm
- Repeatability: 0.01 µm
- Linearity: Specular ± 1 µm
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Light source: Visible red laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size: Ø 30 µm
- Thickness measurement range for transparent materials: 0.06 mm to 0.18 mm
- Supply voltage: DC 12 V to 24 V ± 10%
- Power consumption: 180 mA at 24 V
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Connection: Cable with male M12, 8-pin, A-coded, 50 cm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration and shock resistance compliant with EN 60068 standards
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range: 14 mm to 16 mm
- High repeatability of 0.01 µm
- Laser class 1 with visible red light
- Thickness measurement capability for transparent materials from 0.06 mm to 0.18 mm
- Fast response time ≥ 12.5 µs
- IP67 rated enclosure for robust protection
- Metal aluminum die-cast housing with PMMA window
- Ethernet TCP/IP and UDP communication
- Digital and analog output options
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Thickness measurement of transparent materials
- Industrial quality control
- Precision measurement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces material waste
- Durable IP67 rated housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD5000-C15T01 Laser Thickness Measurement Sensor is available for immediate purchase, ideal for industrial and manufacturing quality control applications.
