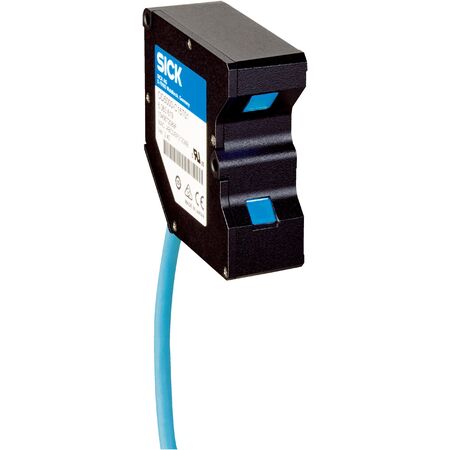

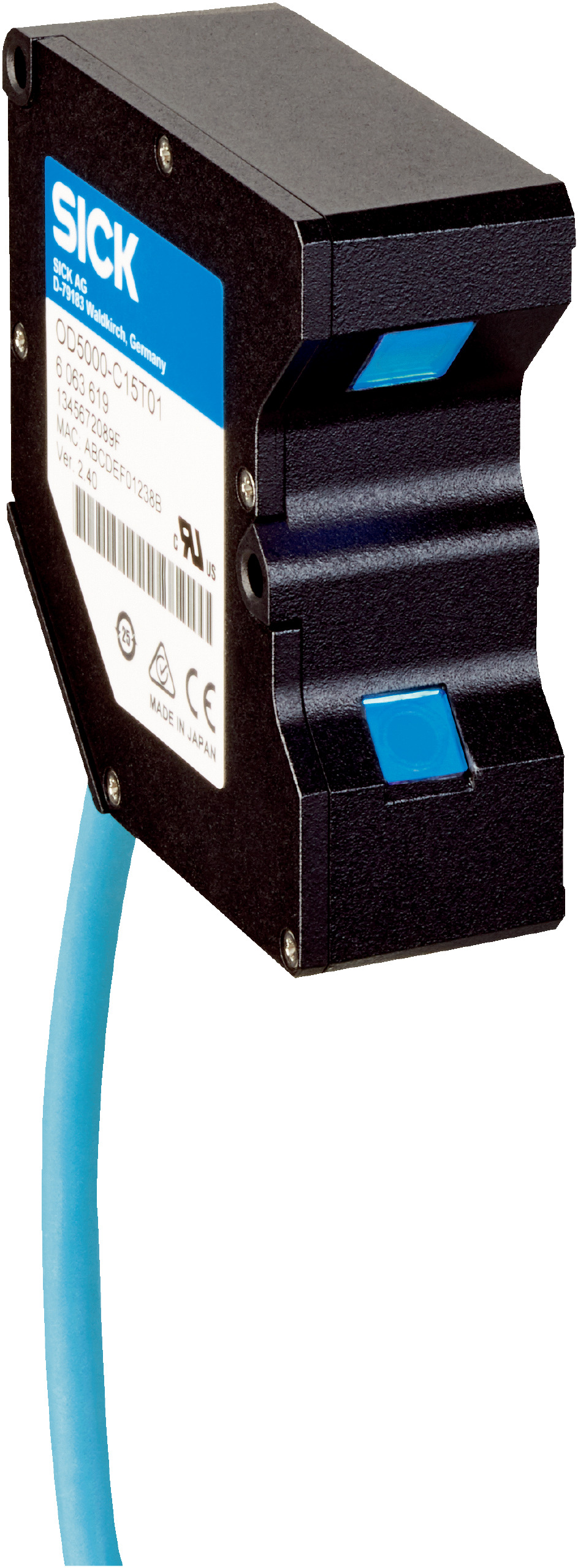

Laser Thickness Sensor OD5000-C15W01 | 14 mm to 16 mm Range | 0.01 µm Repeatability | IP67 Rated | by SICK
The Laser Thickness Sensor OD5000-C15W01 is designed for precise thickness measurement of transparent materials, featuring a measuring range of 14 mm to 16 mm and an impressive repeatability of 0.01 µm. With a visible red laser light source and an IP67 rated enclosure, this sensor is perfect for industrial quality control and manufacturing processes, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 14 mm to 16 mm
- Repeatability: 0.01 µm
- Linearity: Specular ± 1 µm
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Light source: Visible red laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size: 30 µm x 1,000 µm
- Thickness measurement range for transparent material: 0.06 mm to 0.18 mm
- Supply voltage: DC 12 V to 24 V ± 10%
- Power consumption: 180 mA at 24 V
- Warm-up time: < 10 minutes
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Connection type: Cable with male M12, 8-pin, A-coded connector, 50 cm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range: 14 mm to 16 mm
- High repeatability of 0.01 µm
- Laser class 1 for safe operation
- Visible red laser light source
- Response time ≥ 12.5 µs
- IP67 rated enclosure for protection against dust and water
- Metal aluminum die cast housing for durability
- Digital and analog output options
- Ethernet interface supporting TCP/IP and UDP
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Thickness measurement of transparent materials
- Industrial quality control
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact measurement reduces material waste
- Durable metal housing extends product lifespan
- Energy-efficient laser technology
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD5000-C15W01 Laser Thickness Measurement Sensor is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise thickness measurement of transparent materials.
