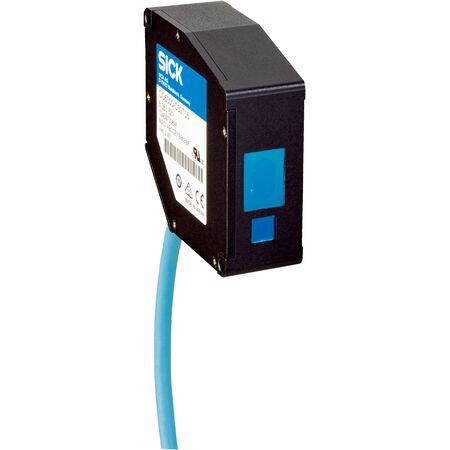

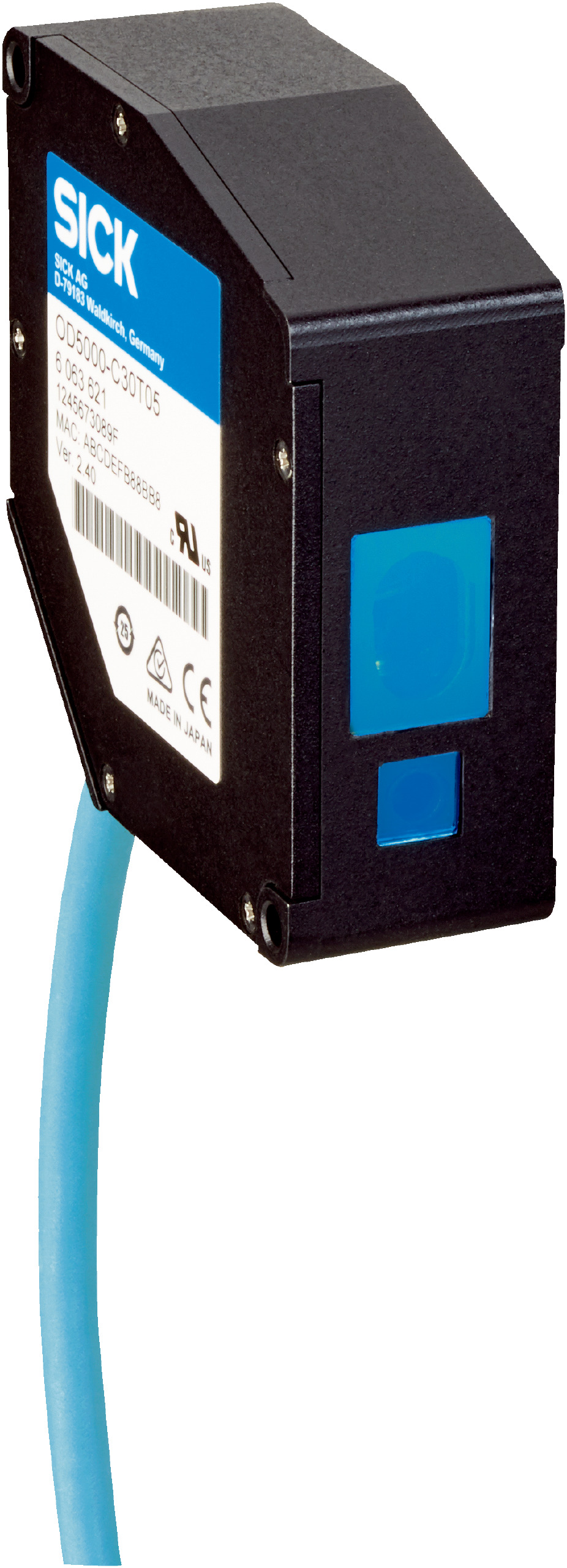

Laser Thickness Sensor OD5000-C30T05 | 25 mm to 35 mm Range | 0.05 µm Repeatability | IP67 Rated | by SICK
The Laser Thickness Sensor OD5000-C30T05 is designed for precise thickness measurement of transparent materials, featuring a measuring range of 25 mm to 35 mm and a high repeatability of 0.05 µm. With an IP67 rated enclosure, this sensor is built for industrial quality control and manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 25 mm to 35 mm
- Repeatability: 0.05 µm
- Linearity: Diffuse ±3 µm, Specular ±4 µm
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Light source: Red visible laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size: Ø 30 µm
- Thickness measurement range: 0.18 mm to 0.6 mm
- Supply voltage: DC 12 V to 24 V ±10%
- Power consumption: 180 mA at 24 V
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range: 25 mm to 35 mm
- High repeatability of 0.05 µm
- Laser class 1 (IEC 60825-1:2014 compliant) with visible red light
- Thickness measurement capability from 0.18 mm to 0.6 mm
- Response time ≥ 12.5 µs
- IP67 rated enclosure for robust protection
- Metal aluminum die cast housing with plastic (PMMA) window
- Status LEDs for operational indication
- Supports Ethernet TCP/IP and UDP communication
- Digital and analog output options available
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Thickness measurement of transparent materials
- Industrial quality control
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact measurement reduces material waste
- Energy-efficient laser technology minimizes power consumption
- Durable IP67 housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD5000-C30T05 Laser Thickness Measurement Sensor is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise thickness measurement.
