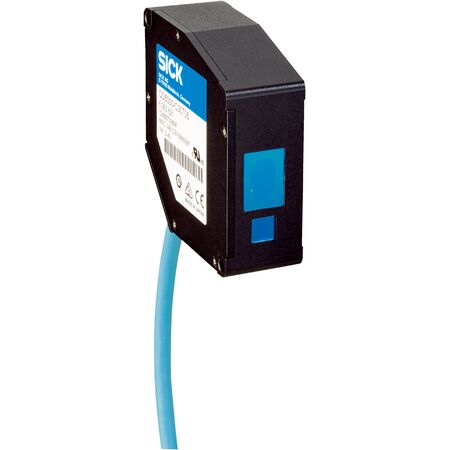

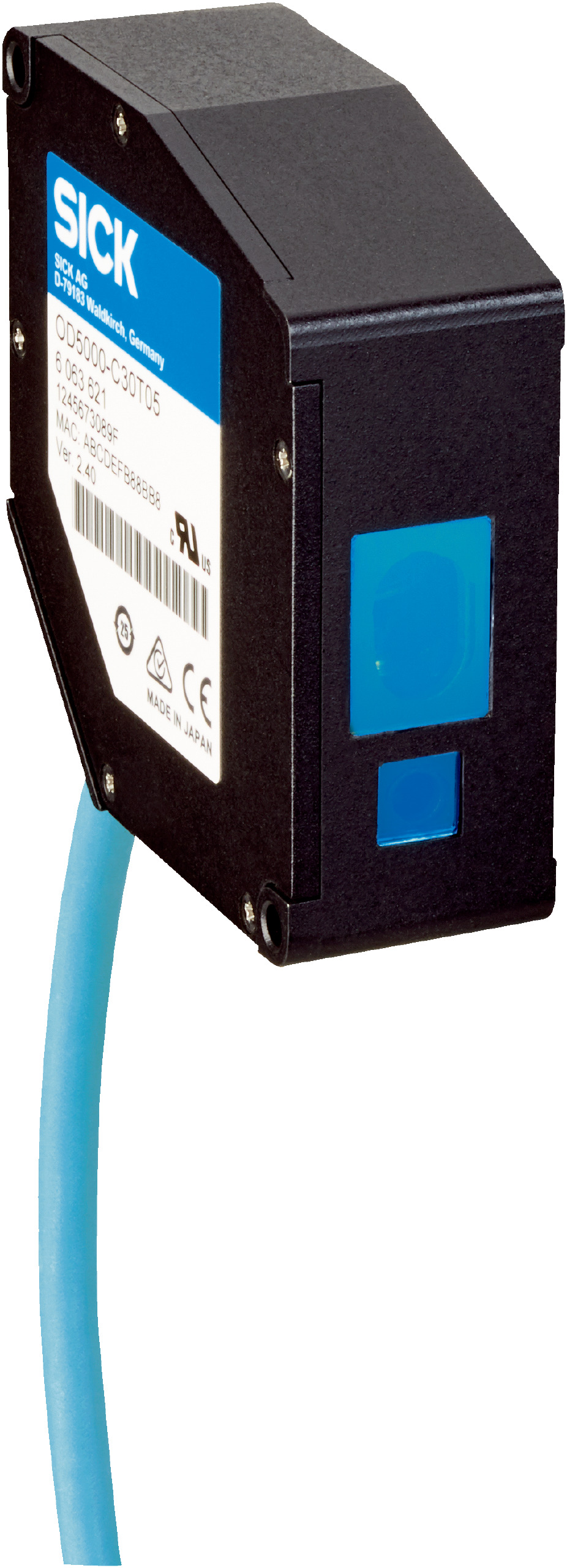

Laser Thickness Sensor OD5000-C30W05 | 25 mm to 35 mm Range | 0.05 µm Repeatability | IP67 Rated | by SICK
The Laser Thickness Sensor OD5000-C30W05 is designed for precise thickness measurement of transparent materials, featuring a measuring range of 25 mm to 35 mm and an impressive repeatability of 0.05 µm. Ideal for industrial quality control and manufacturing processes, this sensor operates with a visible red laser light and is IP67 rated for protection against dust and water, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 25 mm to 35 mm
- Target: Natural objects
- Repeatability: 0.05 µm
- Linearity: Diffuse ± 1.5 µm, Specular ± 4 µm
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Light source: Visible red laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size: 30 µm x 1,000 µm
- Thickness measurement range for transparent material: 0.18 mm to 0.6 mm
- Supply voltage: DC 12 V to 24 V ± 10%
- Power consumption: 180 mA at 24 V
- Warm-up time: < 10 minutes
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Connection type: Cable with male M12, 8-pin, A-coded connector, 50 cm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range: 25 mm to 35 mm
- Repeatability: 0.05 µm
- Linearity: Diffuse ± 1.5 µm, Specular ± 4 µm
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Laser class 1 (IEC 60825-1:2014)
- Typical light spot size: 30 µm x 1,000 µm
- IP67 rated enclosure for protection against dust and water
- Supply voltage: DC 12 V to 24 V
- Power consumption: 180 mA at 24 V
- Status LEDs for indication
- Cable with male M12, 8-pin connector
