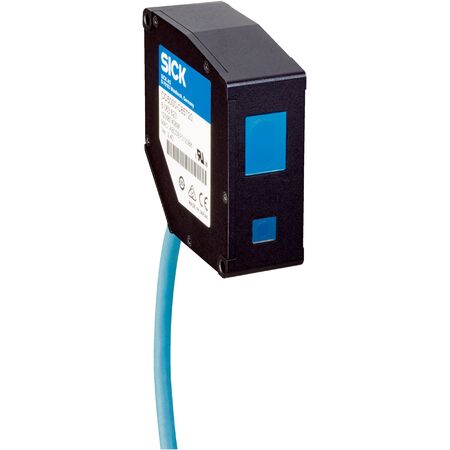

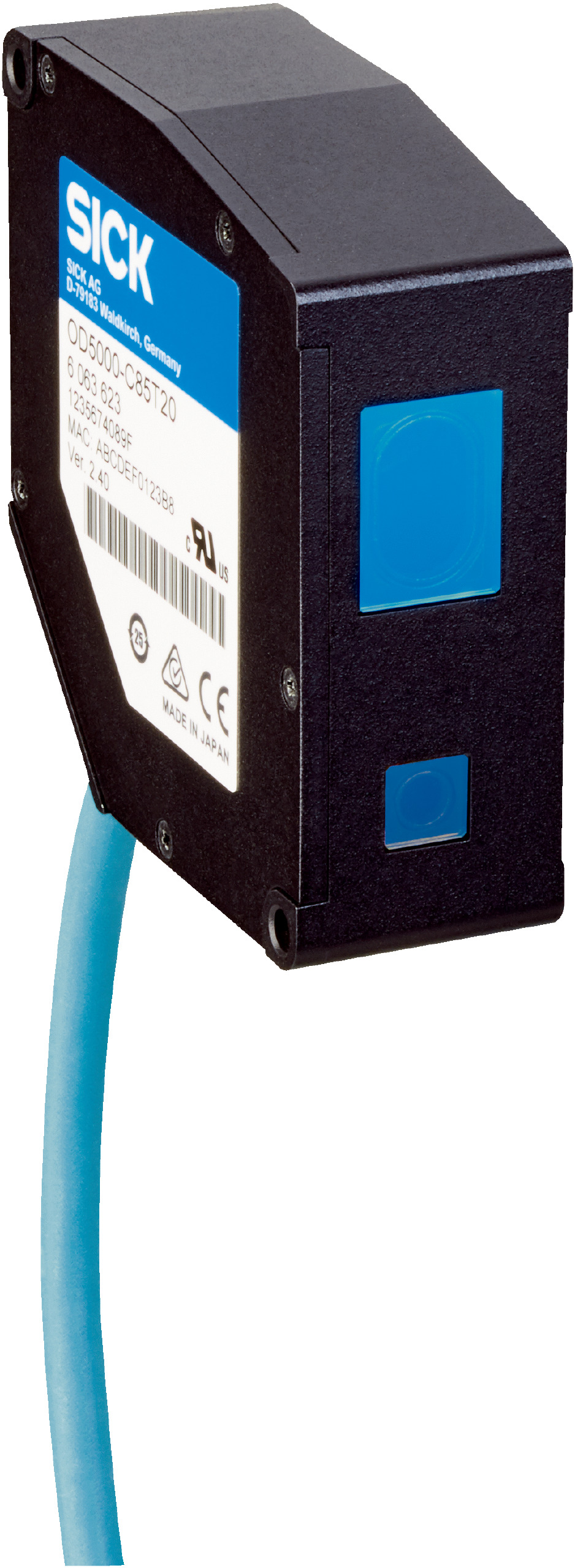

Laser Thickness Sensor OD5000-C85T20 | 65 mm to 105 mm Range | 0.1 µm Repeatability | IP67 Rated | by SICK
The Laser Thickness Sensor OD5000-C85T20 is designed for precise thickness measurement of transparent materials, featuring a measuring range of 65 mm to 105 mm and an impressive repeatability of 0.1 µm. With a robust IP67 rated enclosure and a visible red laser light, this sensor is perfect for industrial quality control and precision measurement in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 65 mm to 105 mm
- Repeatability: 0.1 µm
- Linearity: Diffuse ±7.2 µm near side, ±12 µm far side; Specular ±6 µm near and far side
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Light source: Visible red laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size: Ø 70 µm
- Thickness measurement range for transparent material: 0.5 mm to 2 mm
- Supply voltage: DC 12 V to 24 V ±10%
- Power consumption: 180 mA at 24 V
- Warm-up time: < 10 minutes
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Connection: Cable with male M12, 8-pin, A-coded, 50 cm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range: 65 mm to 105 mm
- High repeatability of 0.1 µm
- Laser class 1 for safe operation
- Visible red laser light with a typical spot size of 70 µm
- Response time ≥ 12.5 µs
- IP67 rated enclosure for robust protection
- Metal aluminum die-cast housing with PMMA window
- Digital and analog output options
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance.
Applications
- Thickness measurement of transparent materials
- Industrial quality control
- Precision measurement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces material waste
- Durable design minimizes replacement frequency
- Energy-efficient laser technology
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD5000-C85T20 laser thickness measurement sensor is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise thickness measurement of transparent materials.
