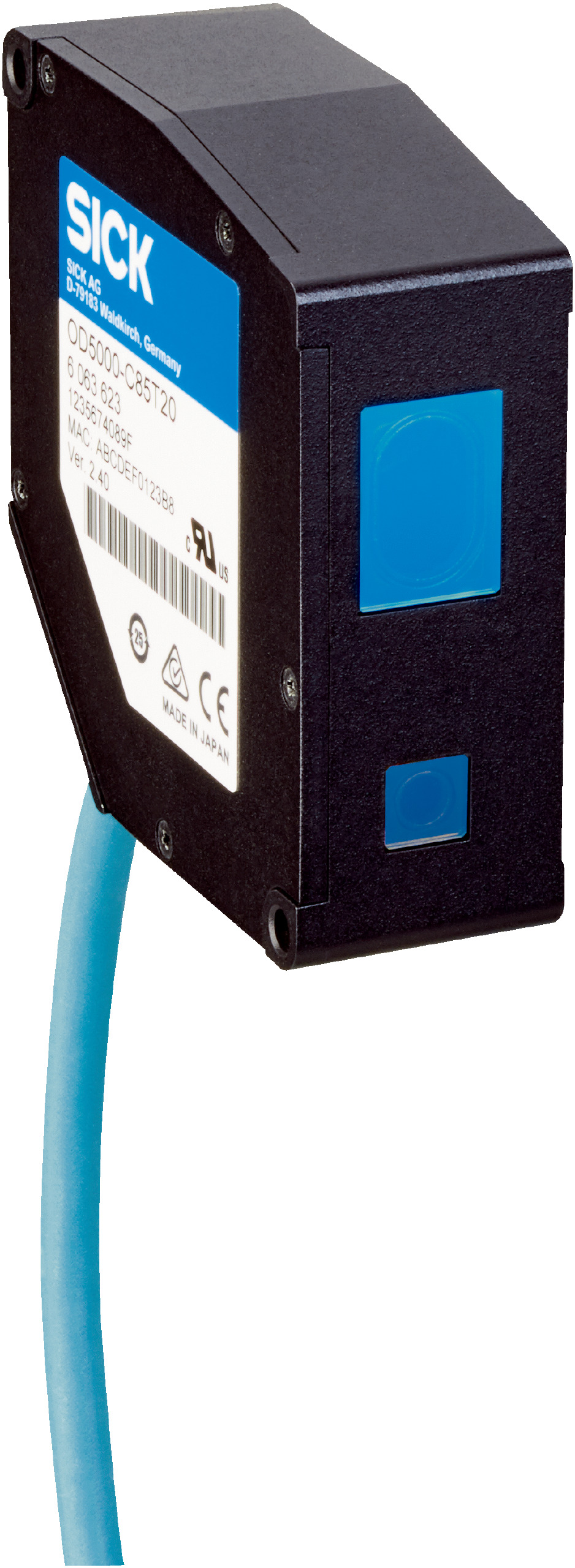

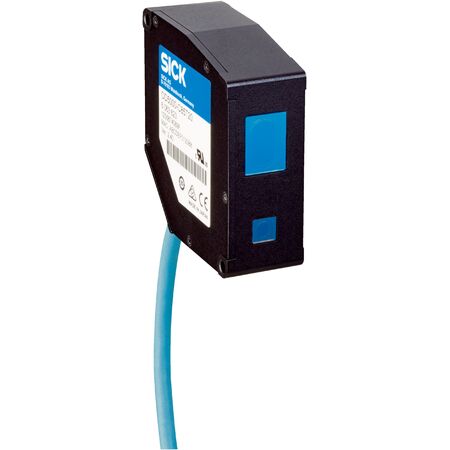

Laser Thickness Sensor OD5000-C85W20 | 65 mm to 105 mm Range | 0.1 µm Repeatability | IP67 Rated | by SICK
The Laser Thickness Sensor OD5000-C85W20 is designed for precise thickness measurement of transparent materials, with a measuring range of 65 mm to 105 mm and a high repeatability of 0.1 µm. Ideal for industrial quality control and automation systems, this sensor features a robust IP67 rated enclosure and operates efficiently in temperatures from -10 °C to +50 °C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 65 mm to 105 mm
- Repeatability: 0.1 µm
- Linearity: Diffuse ±6 µm, Specular ±6 µm
- Response time: ≥ 12.5 µs
- Output time: ≥ 0.0125 ms
- Light source: Visible red laser light, Laser class 1
- Typical light spot size: 70 µm x 2000 µm
- Thickness measurement range for transparent materials: 0.5 mm to 2 mm
- Supply voltage: DC 12 V to 24 V ±10%
- Power consumption: 180 mA at 24 V
- Enclosure rating: IP67
- Protection class: III (EN 50178)
- Connection: Cable with male M12, 8-pin, A-coded connector, 50 cm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range: 65 mm to 105 mm
- High repeatability of 0.1 µm
- Linearity: Diffuse ±6 µm, Specular ±6 µm
- Response time ≥ 12.5 µs
- Visible red laser light source, Laser class 1
- IP67 rated enclosure for robust protection
- Metal aluminum die cast housing with PMMA window
- Digital and analog outputs with selectable PNP/NPN types
- Operating temperature range from -10 °C to +50 °C
- Vibration and shock resistant according to EN 60068 standards
