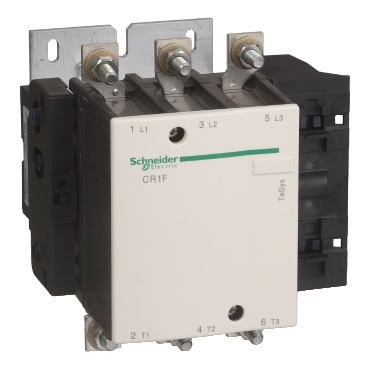

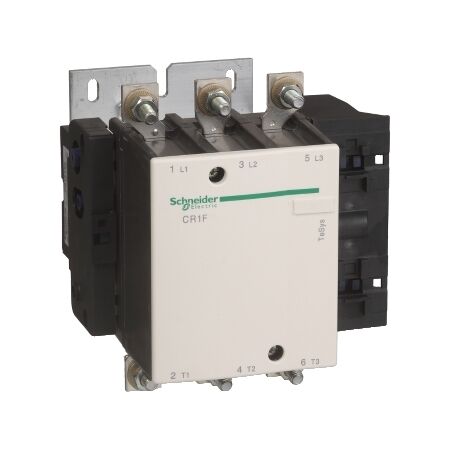

Latch Contactor 150A AC3 | Electromagnetic Latch Mechanism | Heavy-Duty Design | by Clipsal
The Latch Contactor 150A AC3 is designed for reliable industrial motor control, featuring a high current capacity of 150A AC3 and 250A AC1. With an electromagnetic latch mechanism and robust construction, it's perfect for heavy-duty applications in HVAC systems, lighting circuits, and power distribution panels. Built to last with a mechanical endurance of 10 million operations, this contactor ensures efficient energy management and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Latch Contactor 150A AC3 | Electromagnetic Latch Mechanism | Heavy-Duty Design | by Clipsal
Brand: Clipsal
SKU: SCHCR1F150M7
Alternatively Known As: Industrial Latch Contactor, 150A Contactor, Clipsal Power Contactor, SCHCR1F150M7, Heavy Duty Contactor
Technical Specifications
- Rated operational current: 150A (AC3), 250A (AC1)
- Control voltage: 220-240V AC
- Number of poles: 3
- Auxiliary contacts: 1 NO + 1 NC
- Mounting: DIN rail or panel
- Conforms to IEC 60947-4-1
- Operating temperature: -25°C to +60°C
- Mechanical endurance: 10 million operations
- Dimensions (H x L x W): 160mm x 140mm x 105mm
- Weight: 2.5 kg
Key Features
- High current capacity: 150A AC3/250A
- Electromagnetic latch mechanism for reliable operation
- Suitable for heavy-duty industrial applications
- Robust construction for long service life
- Compatible with standard DIN rail mounting
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial motor control
- Lighting circuits
- HVAC systems
- Power distribution panels
- Commercial and industrial automation
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient energy management in industrial systems
- Durable design reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Latch Contactor 150A AC3/250A SCHCR1F150M7 is available for immediate purchase. Ideal for industrial and commercial motor control and power distribution applications.
