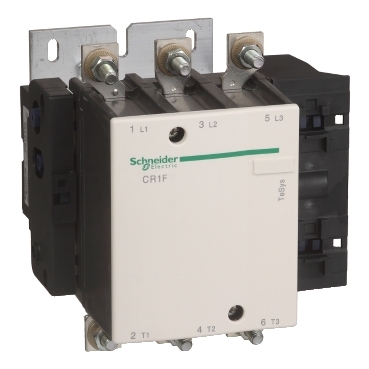

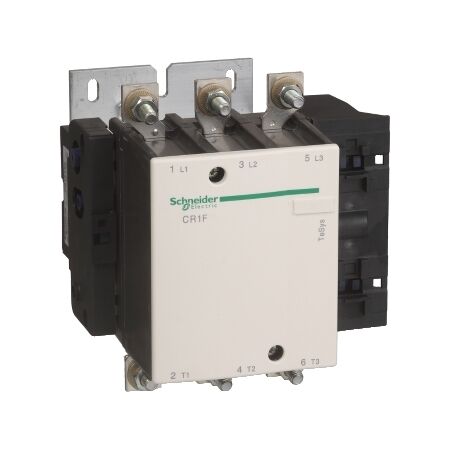

Latch Contactor 150A AC3 | Electromagnetic Latch Mechanism | Heavy-Duty Design | @Pack of 1 | by Clipsal
The Latch Contactor 150A AC3 is engineered for industrial motor control and power distribution, featuring a robust electromagnetic latch mechanism for reliable operation. With a high current capacity of 150A AC3 and 250A AC1, it's perfect for heavy-duty applications, ensuring efficient energy management and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Latch Contactor 150A AC3 | Electromagnetic Latch Mechanism | Heavy-Duty Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHCR1F150F7
Alternatively Known As: Industrial Latch Contactor, 150A Contactor, Clipsal Power Contactor, SCHCR1F150F7, Heavy Duty Contactor
Technical Specifications
- Rated operational current: 150A (AC3), 250A (AC1)
- Rated operational voltage: 690V AC
- Control voltage: 220-240V AC (coil)
- Number of poles: 3
- Frequency: 50/60Hz
- Mechanical endurance: 10 million operations
- Electrical endurance: 1 million operations (AC3)
- Auxiliary contacts: Optional
- Mounting: DIN rail or panel
- Operating temperature: -25°C to +60°C
- Dimensions (H x L x W): 170mm x 145mm x 105mm
- Weight: 2.5 kg
Key Features
- High current capacity: 150A AC3/250A
- Electromagnetic latch mechanism for reliable operation
- Suitable for heavy-duty industrial applications
- Robust construction for long service life
- Low power consumption coil
- Auxiliary contact options available
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Lighting circuits
- HVAC systems
- Power distribution panels
- Commercial and industrial automation
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient energy management by providing reliable load switching
- Durable design reduces replacement frequency and electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Latch Contactor 150A AC3/250A SCHCR1F150F7 is available for immediate purchase. Ideal for industrial and commercial motor control and power distribution applications.
