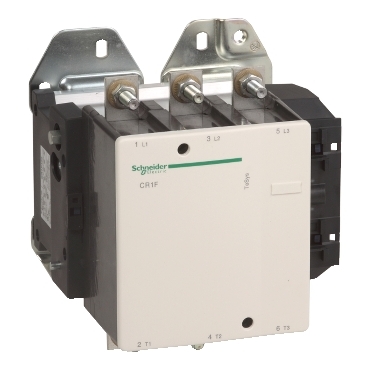

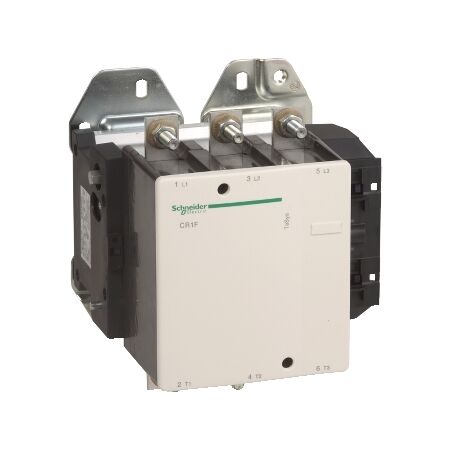

Latch Contactor 500A AC3 | Magnetic Latching Mechanism | 3 Poles | 220-230V DC | @Pack of 1 | by Clipsal
The Latch Contactor 500A AC3 is designed for reliable industrial motor control, featuring a magnetic latching mechanism and a high current rating of 500A AC-3 (up to 440V). With a robust 3-pole configuration and a control voltage of 220-230V DC, it's perfect for heavy machinery switching and power distribution panels, ensuring efficient energy management in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Latch Contactor 500A AC3 | Magnetic Latching Mechanism | 3 Poles | 220-230V DC | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHCR1F500M7
Alternatively Known As: 500A Magnetic Latching Contactor, TeSys F 3 Pole Contactor, Industrial Power Contactor, SCHCR1F500M7, Clipsal Heavy Duty Contactor
Technical Specifications
- Rated operational current: 500A (AC-3, ≤440V)
- Rated operational current: 700A (AC-1)
- Number of poles: 3 (3NO)
- Control voltage: 220-230V DC
- Utilization category: AC-3/AC-1
- Magnetic latching mechanism
- TeSys F series
- Conforms to IEC 60947-4-1
- Dimensions (H x L x W): 320mm x 250mm x 210mm
- Weight: 12 kg
Key Features
- Magnetic latching contactor for reliable operation
- High current rating: 500A AC-3 (up to 440V), 700A AC-1
- 3 poles (3NO) configuration
- 220-230V DC coil for control circuit
- TeSys F series for robust industrial use
- Suitable for frequent switching and heavy loads
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and manufacturer guidelines.
Applications
- Industrial motor control
- Heavy machinery switching
- Power distribution panels
- Commercial HVAC systems
- Large-scale manufacturing plants
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy management in industrial systems
- Reduces energy waste by providing reliable and precise switching
- Long operational life reduces replacement frequency and associated waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for industrial and commercial applications requiring high current switching and reliable magnetic latching operation.
