Latching Contactor 55kW 4 Pole | 110VAC/VDC | Energy Efficient by NHP
Latching contactor with 55kW power and 4 poles—ideal for industrial automation and motor control. Built for energy efficiency, with 110VAC/VDC operation and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

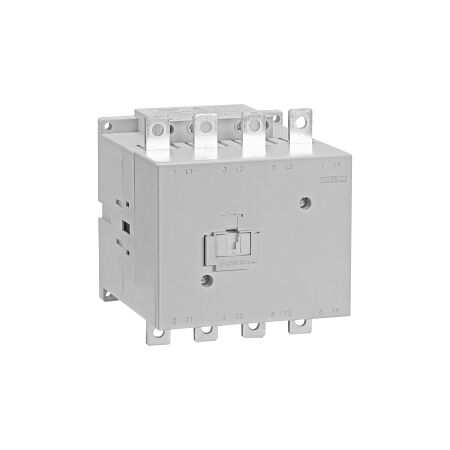

Product Name/Title: Ghisalba Contactor Latching 55kW 4Pole 110VAC and VDC Close Release
Brand: NHP
SKU: GH15MNML110V
Alternatively Known As: 55kW Latching Contactor, 4 Pole Contactor, NHP Contactor
Technical Specifications
- Number of normally open contacts: 4
- Rated operation current at AC 3, 400 V: 115 A
- Rated operation power at AC 3, 400 V: 55 kW
- Max rated operation voltage: 1000 V
- Voltage type for actuating: AC/DC
- Rated control supply voltage at AC 50 Hz: 110-120 V
- Rated control supply voltage at DC: 110 V
- Degree of protection: IP00
- Mounting method: Screw mounting
- Type of electrical connection: Bolt connection
- Dimensions (H x L x W): 170mm x 162mm x 147mm
- Weight: 4.7 kg
Key Features
- Latching design for energy efficiency and reduced power consumption.
- Rated for 55 kW operation with a maximum voltage of 1000 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, motor control applications
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Ghisalba Contactor Latching 55kW 4Pole 110VAC and VDC Close Release is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.
