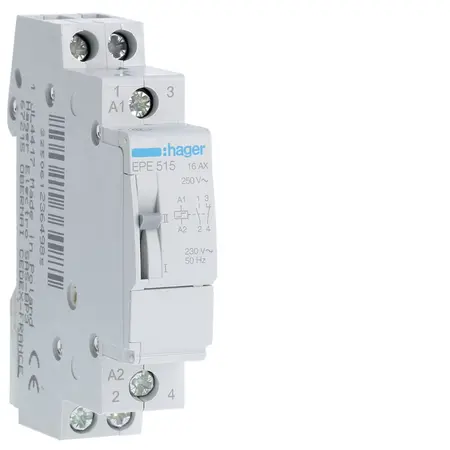

Latching Relay 1NC+1NO 230V | 16A Rated | Compact Design | Screw Terminal by Hager

BRAND: :hager
SKU: EPE515
$111.20 List price: $142.20
+ −
30 Days Return Delivery Options
Latching relay with 16A rated current and 1NC+1NO contacts—ideal for residential and commercial lighting control. Built for energy efficiency, with compact design and secure screw terminal connection.

Product Name/Title: Latching relay 1NC+1NO 230V

Brand: Hager

SKU: EPE515

Alternatively Known As: Latching Relay Module

Technical Specifications
  • Rated current: 16 A
  • Quiescent current: 6 mA
  • Number of modules: 1
  • Type of contacts: 1NC+1NO
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1.5 - 10 mm²
  • Number of contacts: 2
  • Command voltage AC: 230 - 230 V
  • Command voltage DC: 110 - 110 V
  • Rated insulation voltage Ui: 250 V
  • Frequency: 50 - 60 Hz
  • Operating temperature: -5 - 40 °C
  • Storage/transport temperature: -40 - 80 °C
  • Type of connection: Screw terminal
  • Total power loss under IN: 1.20 W
  • Inrush power absorbed: 25 VA
  • Max. load fluorescent lamp: 800 VA
  • Dimensions (H x L x W): 83mm x 63mm x 18mm
  • Weight: 0.12 kg
Key Features
  • Rated current of 16 A for reliable switching
  • Compatible with both AC and DC command voltages
  • Compact design with only 1 module for saving space
  • Screw terminal connection for secure wiring
  • Low quiescent current of 6 mA for energy-efficient operation
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure proper and safe operation.
Applications
  • Residential: Lighting circuits, home automation systems
  • Commercial: Lighting control in offices, retail spaces
  • Industrial: Power management in manufacturing units
Standards & Compliance
  • Complies with AS/NZS standards for electrical safety and performance.
Environmental Benefits
  • Energy-efficient operation with low total power loss
  • Suitable for enhancing automated lighting systems to reduce manual intervention
Warranty Information

5 years warranty against manufacturing defects.

Available Now

The Hager EPE515 Latching Relay is available now for immediate purchase. Ideal for automation and lighting solutions in various environments.

EPE515 (EPE515, 105 Kb) [Download]

reach_declaration_EPE5153.pdf (reach_declaration_EPE5153.pdf, 103 Kb) [Download]

rohs_declaration_EPE5153.pdf (rohs_declaration_EPE5153.pdf, 104 Kb) [Download]

(DECLARATION_20_1188_07_20.pdf, 263 Kb) [Download]
