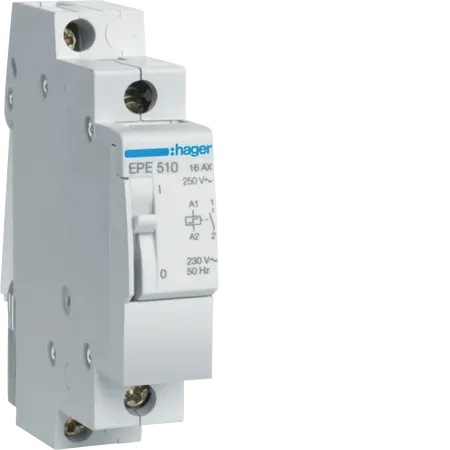

Latching Relay 1NO 230V | 16A Rated | Versatile AC/DC | Screw Terminal by Hager

BRAND: :hager
SKU: EPE510
$56.90 List price: $72.80
+ −
30 Days Return Delivery Options
Latching relay with 16A rated current and versatile AC/DC command voltage—ideal for residential, commercial, and industrial circuits. Built for secure setups with screw terminal connection, ensuring reliable relay operations.

Product Name/Title: Latching relay 1NO 230V

Brand: Hager

SKU: EPE510

Alternatively Known As: 1NO 230V Latching Relay

Technical Specifications
  • Rated current: 16 A
  • Quiescent current: 6 mA
  • Number of modules: 1
  • Type of contacts: 1NO
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1.5 - 10 mm²
  • Number of contacts: 1
  • Command voltage AC: 230 - 230 V
  • Command voltage DC: 110 - 110 V
  • Rated insulation voltage Ui: 250 V
  • Frequency: 50 - 60 Hz
  • Operating temperature: -5 - 40 °C
  • Storage/transport temperature: -40 - 80 °C
  • Type of connection: Screw terminal
  • Total power loss under IN: 1,20 W
  • Inrush power absorbed: 25 VA
  • Max. load fluorescent lamp: 800 VA
  • Dimensions (H x L x W): 83mm x 63mm x 17.5mm
  • Weight: 0.1 kg
Key Features
  • Reliable latching relay with a rated current of 16 A
  • Versatile command voltage compatibility in both AC and DC
  • Screw terminal connection for secure setups
Professional Installation Requirements
  • Professional installation is recommended to ensure safety and compliance with electrical standards.
Applications
  • Suitable for residential, commercial, and industrial electrical circuits requiring controlled relay operations.
Standards & Compliance
  • Complies with AS/NZS electrical standards for safety and performance.
Environmental Benefits
  • Energy-efficient operation with low quiescent current of 6 mA
Warranty Information

2 years warranty ensuring product reliability and performance

Available Now

The Hager EPE510 Latching Relay 1NO 230V is available now for immediate purchase. Ideal for electrical installations requiring reliable relay operations.

EPE510 (EPE510, 104 Kb) [Download]

reach_declaration_EPE5103.pdf (reach_declaration_EPE5103.pdf, 103 Kb) [Download]

rohs_declaration_EPE5103.pdf (rohs_declaration_EPE5103.pdf, 104 Kb) [Download]

DECLARATION_20_1188_07_20.pdf (DECLARATION_20_1188_07_20.pdf, 263 Kb) [Download]
