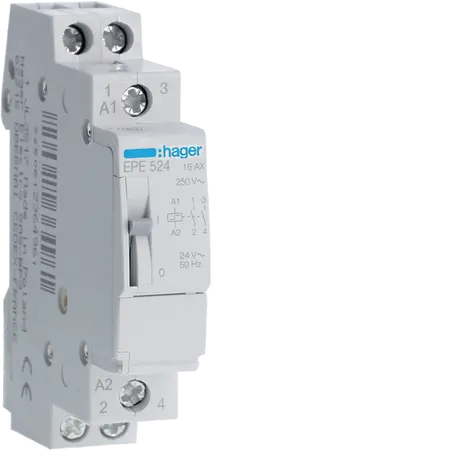

Latching Relay 2NO 24V | 16A Rated | Compact Design | Hager EPE524 by Hager
Latching relay with 16A rated current and compact design—ideal for commercial and residential electrical installations. Built for reliable switching, supporting both AC and DC command voltages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Latching relay 2NO 24V
Brand: Hager
SKU: EPE524
Alternatively Known As: Hager 24V Latching Relay
Technical Specifications
- Rated Current: 16 A
- Quiescent Current: 6 mA
- Number of Modules: 1
- Type of Contacts: 2NO
- Cross-section Flexible Conductor: 1 - 6 mm²
- Cross-section Rigid Conductor: 1.5 - 10 mm²
- Number of Contacts: 2
- Command Voltage AC: 24V
- Command Voltage DC: 12V
- Rated Insulation Voltage Ui: 250 V
- Frequency: 50 - 60 Hz
- Total Power Loss under IN: 2.40 W
- Inrush Power Absorbed: 25 VA
- Operating Temperature: -5 - 40 °C
- Storage/Transport Temperature: -40 - 80 °C
- Type of Connection: Screw terminal
- Height: 83 mm
- Width: 18 mm
- Depth: 63 mm
- Max. Load Fluorescent Lamp: 800 VA
- Dimensions (H x L x W): 83mm x 18mm x 63mm
- Weight: 0.150 kg
Key Features
- Reliable latching relay mechanism.
- Supports both AC and DC command voltages.
- Compact and efficient design for space-saving installations.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial and residential electrical installations.
- Control systems requiring a reliable switching mechanism.
Standards & Compliance
- Complies with relevant Australian safety and performance standards.
Environmental Benefits
- Energy-efficient operation with low quiescent current.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager EPE524 Latching Relay 2NO 24V is available now for immediate purchase, ideal for commercial and residential electrical installations requiring a reliable switching mechanism.
