LBC621-17NIR | Quality control systems
The SICK LBC621-17NIR is a high-performance quality control system featuring 2D snapshot technology, versatile barcode and 2D code reading, and robust IP65 aluminum housing for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

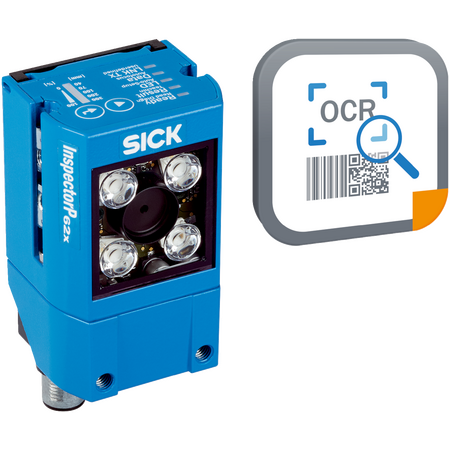

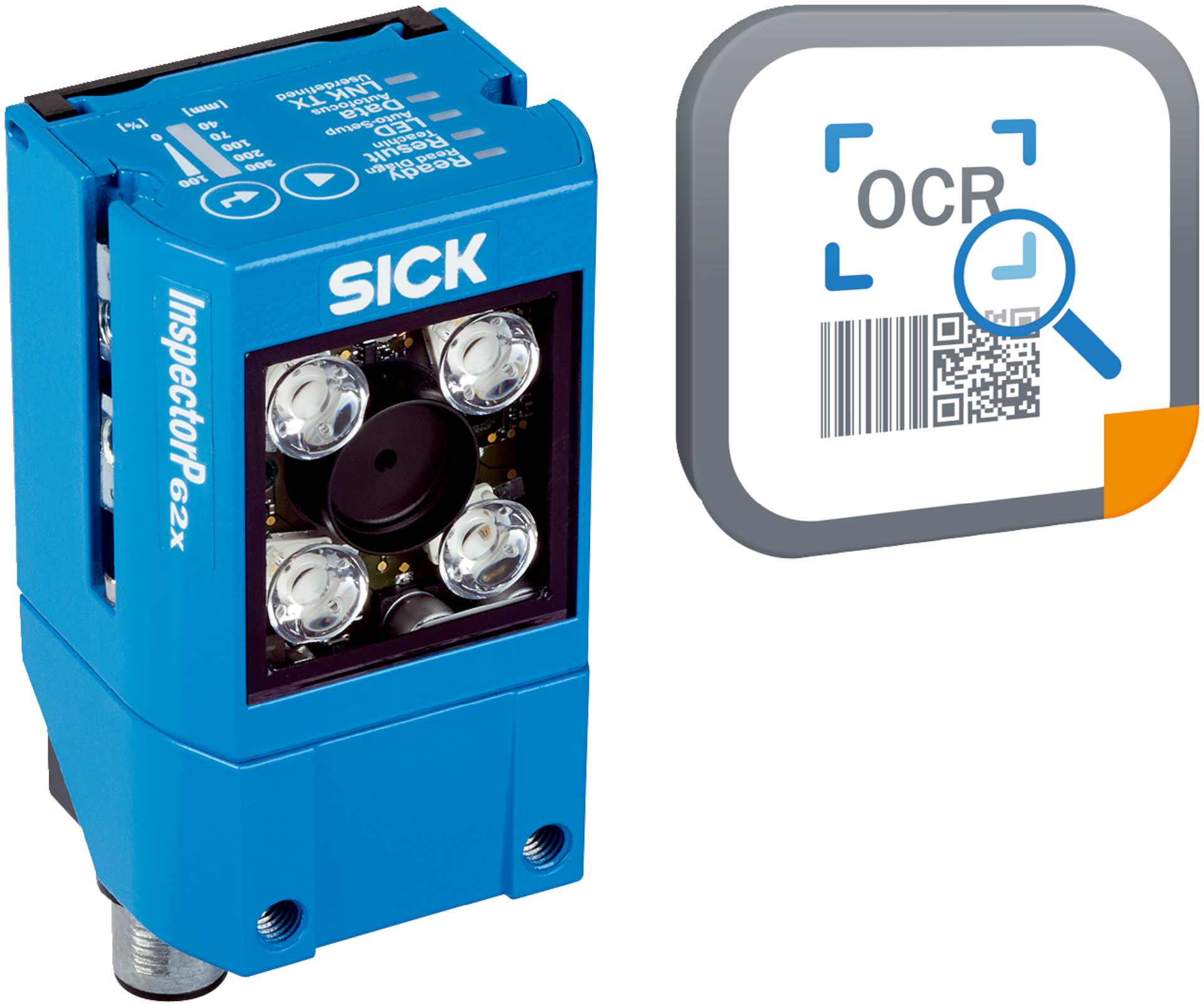

Product Name/Title: LBC621-17NIR | Quality control systems
Brand: SICK
SKU: 1115470
Alternatively Known As: 2D Snapshot Quality Control Scanner, Industrial Barcode Reader, SICK LBC621-17NIR Vision Sensor
Technical Specifications
- Technology: 2D snapshot
- Light source: Internal LED infrared 850 nm ± 25 nm
- Feedback spot: Visible green LED 525 nm ± 15 nm
- Adjustment aid: Laser visible red light 630 nm to 680 nm
- Laser class: Class 1, compliant with IEC 60825-1:2014 and FDA 21 CFR 1040.10
- Sensor: CMOS matrix, grayscale, 1.3 Mpixel (1280 x 1024 px)
- Spectral range: Approx. 400 nm to 900 nm
- Focal length: 17.1 mm
- Enclosure rating: IP65
- Protection class: III
- Power consumption: Typical 4 W
- Housing material: Aluminum die cast
- Output current: ≤ 100 mA
- Connections: 1 x M12 17-pin male connector, 1 x M12 4-pin female Ethernet connector
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Window material: Glass
- Barcode types supported: 2/5 Industrial, Interleaved 2 of 5, Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Pharmacode, GS1-128, Code 32, UPC-A, UPC-E, GS1, MSI
- 2D code types supported: Data Matrix ECC200, QR code, Micro QR code, PDF417, Aztec
- OCR/OCV fonts: Universal, industrial, document, DotPrint, pharma, OCR-A, OCR-B, Arabic numbers
- Optical format: 1/1.8"
- Maximum encoder frequency: 300 Hz
- Ethernet: TCP/IP, EtherNet/IP, UDP, PROFINET
- Data transmission rate: 10/100 MBit/s
- Protocols: FTP, HTTP
- Operator interface: Web server
- Indicators: 5 status displays, 5 LED bar graph, 1 green/red feedback spot, beeper
- Operating temperature: -20°C to +70°C
- Storage temperature: -20°C to +70°C
- Shock and vibration: EN 60068-2-27 and EN 60068-2-6 compliant
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology for high precision imaging
- Internal LED infrared lighting at 850 nm with ± 25 nm tolerance
- Visible green LED feedback spot at 525 nm ± 15 nm
- Adjustable electric focus with laser visible red light (630 nm to 680 nm)
- CMOS matrix sensor with 1.3 Mpixel resolution
- Supports multiple barcode types including Code 39, Code 128, EAN-8, EAN-13, UPC-A, and more
- Reads 2D codes such as Data Matrix ECC200, QR code, Micro QR code, PDF417, and Aztec
- Universal OCR fonts including industrial and pharmaceutical fonts
- Ethernet connectivity with TCP/IP, EtherNet/IP, UDP, PROFINET protocols
- Robust IP65 rated aluminum die-cast housing
- Wide operating temperature range from -20°C to +70°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and system integration.
Applications
- Industrial quality control and inspection
- Barcode and 2D code reading in manufacturing
- Automated optical character recognition (OCR) in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
- Non-contact optical inspection reduces material waste in production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LBC621-17NIR quality control system is available for immediate purchase, ideal for industrial and manufacturing quality assurance applications.
