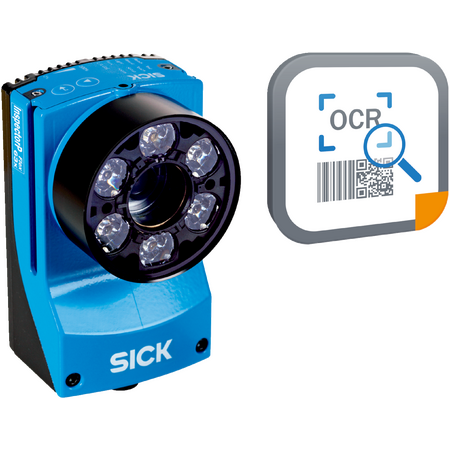

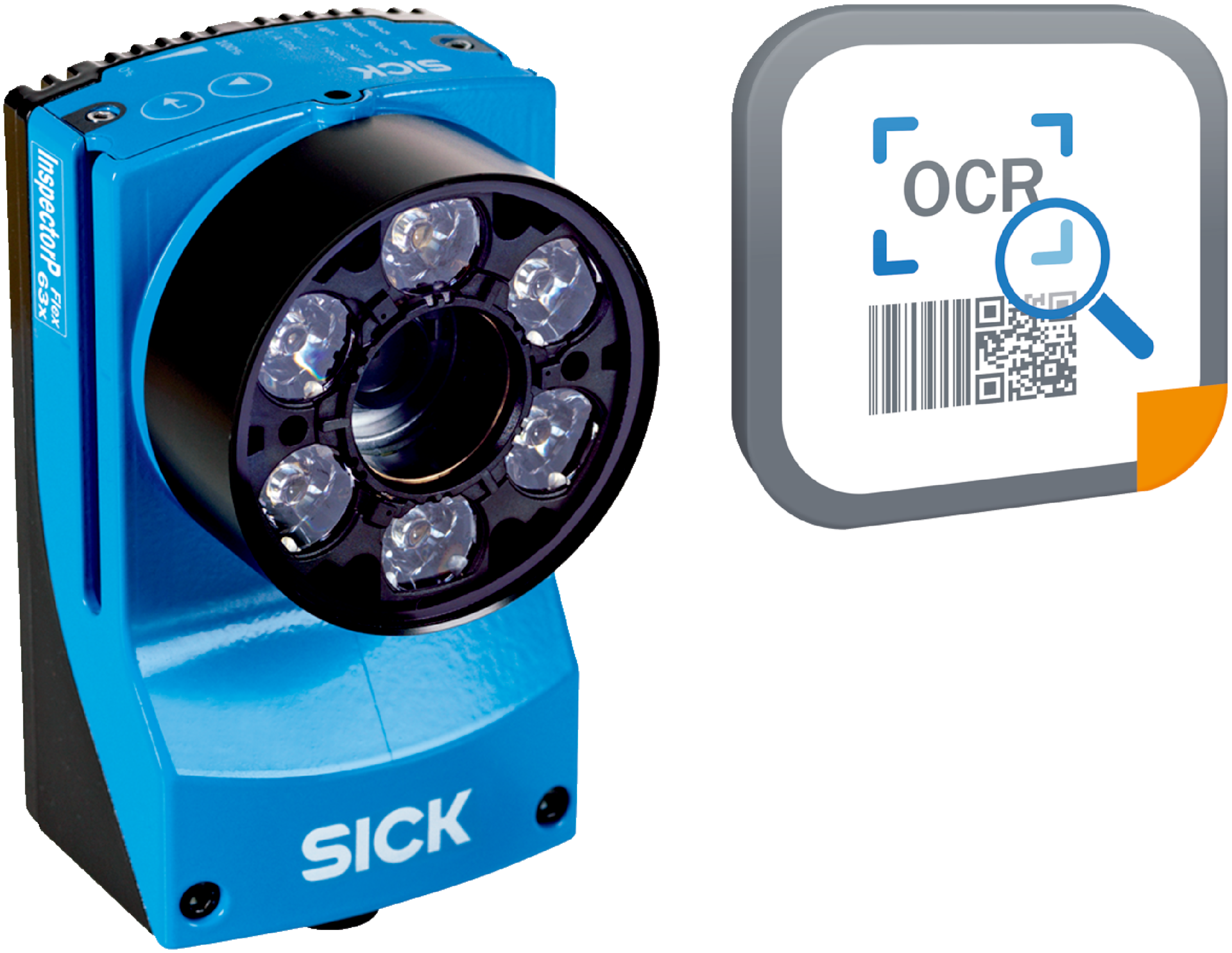

LBC631 | Quality control systems
The SICK LBC631 is a high-performance quality control system featuring 2D snapshot technology, adjustable focus, and robust IP67 rated housing, ideal for industrial barcode and OCR applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LBC631 | Quality control systems
Brand: SICK
SKU: 1091689
Alternatively Known As: 2D Snapshot Quality Control Scanner, Industrial Barcode Reader, OCR Inspection System
Technical Specifications
- Technology: 2D snapshot
- Light source: Illumination LEDs (ordered separately), visible red laser alignment aid (630-680 nm)
- Laser class: Class 1, compliant with IEC 60825-1:2014
- Sensor: CMOS matrix sensor, grayscale, 1.3 Megapixel (1280 x 1024 px)
- Spectral range: Approx. 400 nm to 900 nm
- Lens: C-mount
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 60950-1)
- Power consumption: Typical 10 W ± 20%
- Output current: ≤ 100 mA
- Connections: Multiple M12 and M8 connectors for serial, I/O, voltage supply, Ethernet, and external illumination
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Window material: PMMA
- Barcode types supported: 2/5 Industrial, Interleaved 2 of 5, Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Pharmacode
- 2D code types supported: Data Matrix ECC200, QR code, Micro QR code, PDF417, Aztec
- OCR/OCV fonts: Universal, industrial, document, DotPrint, pharma, OCR-A, OCR-B, Arabic numbers
- Optical format: 1/1.8"
- Maximum encoder frequency: 1 kHz
- Data transmission rate: 10/100/1000 Mbit/s Ethernet, 300 Baud to 115.2 kBaud serial
- Interfaces: Ethernet (TCP/IP, EtherNet/IP, UDP, PROFINET, FTP, HTTP), Serial (RS-232, RS-422)
- Operator interface: Web server
- Indicators: 5 status displays, 5 LED bar graph, green/red feedback spot, beeper
- Data storage: microSD card and external FTP
- Operating temperature: -20 °C to +70 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration resistance: EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- 2D snapshot technology for high precision imaging
- Adjustable manual focus with C-mount lens
- CMOS matrix sensor with 1.3 Megapixel resolution
- Supports multiple barcode and 2D code types including Data Matrix ECC200, QR code, PDF417, and Aztec
- Robust IP67 rated aluminum die cast housing for harsh environments
- Multiple interface options including Ethernet with TCP/IP, RS-232, RS-422 serial communication
- Integrated optical and acoustic indicators for status feedback
- Image and data logging via microSD card and external FTP
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial quality control and inspection
- Barcode and 2D code reading in manufacturing
- Automated optical character recognition (OCR) in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy efficient operation with typical power consumption of 10 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBC631 Quality Control System is available for immediate purchase, ideal for industrial and manufacturing quality assurance applications.
