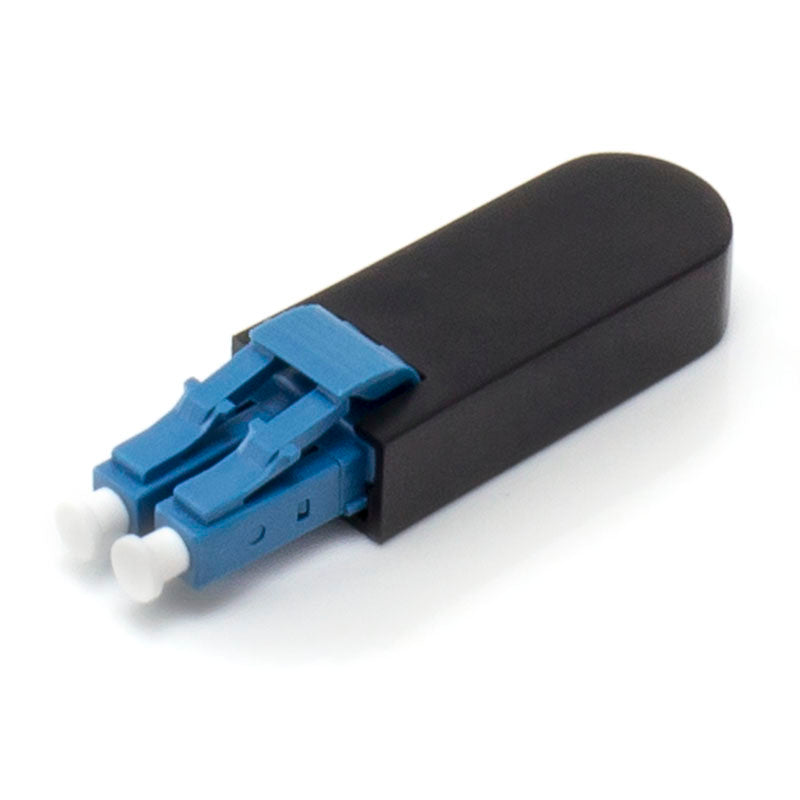

LC Singlemode Fibre Loop 09/125 OS2 Jumper Connector | Low Insertion Loss | High Return Loss | Loopback Design | by SERVEREDGE

BRAND: SERVEREDGE
SKU: LC-JL-OS2
$37.50 List price: $45.40
+ −
30 Days Return Delivery Options
The LC Singlemode Fibre Loop 09/125 OS2 Jumper Connector is designed for high-performance telecommunications and data center applications. With a low insertion loss of typically ≤0.3 dB and a high return loss of typically ≥50 dB, this loopback connector ensures reliable long-distance transmission. Ideal for network management and testing, it features a secure LC connector for optimal connectivity.

Product Name/Title: LC Singlemode Fibre Loop 09/125 OS2 Jumper Connector | Low Insertion Loss | High Return Loss | Loopback Design | by SERVEREDGE

Brand: SERVEREDGE

SKU: LC-JL-OS2

Alternatively Known As: LC OS2 Fiber Loopback Jumper, Singlemode LC Loopback Connector, 09/125 OS2 Fiber Jumper

Technical Specifications
  • Fiber Type: Singlemode 09/125 OS2
  • Connector Type: LC
  • Jumper Type: Loopback
  • Insertion Loss: Typically ≤0.3 dB
  • Return Loss: Typically ≥50 dB
  • Operating Temperature: -40°C to 85°C
  • Dimensions (H x L x W): 3mm x 100mm x 3mm
  • Weight: 0.05 kg
Key Features
  • Singlemode fiber for long-distance transmission
  • OS2 fiber type for low attenuation and high performance
  • LC connector for secure and reliable connections
  • Loop jumper design for testing and network management
Professional Installation Requirements
  • Installation should be performed by trained fiber optic technicians to ensure optimal performance and safety.
Applications
  • Telecommunications networks
  • Data centers and server rooms
  • Fiber optic communication systems
  • High-speed internet and broadband connections
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Supports energy-efficient data transmission with minimal signal loss
  • Durable materials reduce the need for frequent replacements
Warranty Information

1 year limited warranty against manufacturing defects.

Available Now

The SERVEREDGE LC Singlemode Fibre Loop 09/125 OS2 Jumper Connector is available for immediate purchase, ideal for telecommunications and data center applications.
