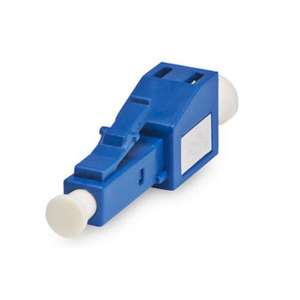

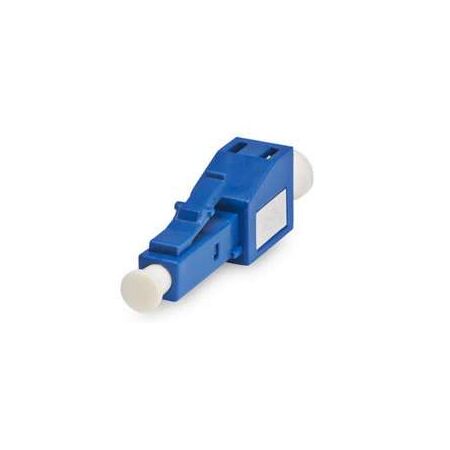

LC Singlemode Male to Female Attenuator | 10dB Attenuation | UPC >55dB Return Loss | -40 to 75°C Operating Temp | by SERVEREDGE
The LC Singlemode Male to Female Attenuator with 10dB attenuation is perfect for telecommunications and data center applications. Designed for optimal performance, it features a wide operating wavelength of 1240 to 1620nm and high return loss of UPC >55dB. Built to withstand extreme temperatures from -40 to 75°C, this attenuator ensures reliable optical signal management for your network needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LC Singlemode Male to Female Attenuator | 10dB Attenuation | UPC >55dB Return Loss | -40 to 75°C Operating Temp | by SERVEREDGE
Brand: SERVEREDGE
SKU: FA-LC-SM-10
Alternatively Known As: LC Singlemode Fiber Optic Attenuator, 10dB Fiber Optic Attenuator, LC Male to Female Optical Attenuator
Technical Specifications
- Attenuation Value: 1dB to 30dB
- Operating Wavelength: 1240 to 1620nm (Dual 1310/1550nm)
- Return Loss: UPC >55dB, APC >65dB
- Attenuation Accuracy: 1-7 dB ±0.5dB, 8-12 dB ±0.7dB, 13-17 dB ±1.0dB, 18-25 dB ±1.3dB
- Maximum Optical Input Power: 1000mW
- Polarization Dependent Loss: ≤0.1dB
- Operating Temperature Range: -40 to 75°C
- Storage Temperature Range: -40 to 85°C
- Humidity: 95% RH
- Dimensions (H x L x W): 10mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- Attenuation range from 1dB to 30dB
- Operating wavelength: 1240 to 1620nm (dual 1310/1550nm)
- High return loss: UPC >55dB, APC >65dB
- Low polarization dependent loss ≤0.1dB
- Wide operating temperature range from -40 to 75°C
- Maximum optical input power of 1000mW
Professional Installation Requirements
- Installation should be performed by a qualified fiber optic technician to ensure proper connection and optimal performance.
Applications
- Telecommunications networks
- Fiber optic communication systems
- Data centers and server rooms
- Optical signal power management
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps optimize optical network performance, reducing the need for additional hardware and energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Serveredge LC Singlemode Male to Female Attenuator 10dB is available now for immediate purchase. Ideal for telecommunications and data center applications requiring precise optical signal attenuation.
