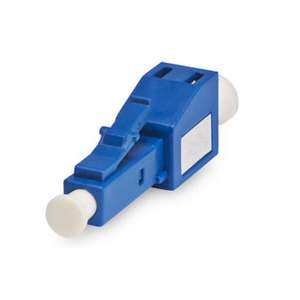

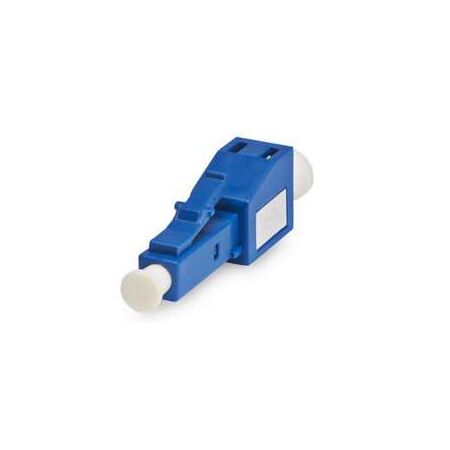

LC Singlemode Male to Female Attenuator | 15dB | Dual Wavelength 1310/1550nm | High Return Loss | by SERVEREDGE

BRAND: SERVEREDGE
SKU: FA-LC-SM-15
$39.50 List price: $47.90
+ −
30 Days Return Delivery Options
The LC Singlemode Male to Female Attenuator with 15dB attenuation is perfect for optimizing telecommunications networks and fiber optic communication systems. Designed for professional installation, it features a dual operating wavelength of 1240 to 1620nm and high return loss, ensuring reliable performance in data centers and server rooms.

Product Name/Title: LC Singlemode Male to Female Attenuator | 15dB | Dual Wavelength 1310/1550nm | High Return Loss | by SERVEREDGE

Brand: SERVEREDGE

SKU: FA-LC-SM-15

Alternatively Known As: Fiber Optic Attenuator, LC Singlemode Attenuator, Optical Attenuator 15dB

Technical Specifications
  • Attenuation Value: 1dB to 30dB
  • Operating Wavelength: 1240 to 1620nm (Dual 1310/1550nm)
  • Return Loss: UPC >55dB, APC >65dB
  • Attenuation Accuracy: 1-7 dB ±0.5dB, 8-12 dB ±0.7dB, 13-17 dB ±1.0dB, 18-25 dB ±1.3dB
  • Maximum Optical Input Power: 1000mW
  • Polarization Dependent Loss: ≤0.1dB
  • Operating Temperature Range: -40 to 75°C
  • Storage Temperature Range: -40 to 85°C
  • Humidity: 95% RH
  • Dimensions (H x L x W): 10mm x 70mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Attenuation range from 1dB to 30dB
  • Operating wavelength: 1240 to 1620nm (dual 1310/1550nm)
  • High return loss: UPC >55dB, APC >65dB
  • Low polarization dependent loss ≤0.1dB
  • Wide operating temperature range from -40 to 75°C
  • Maximum optical input power of 1000mW
Professional Installation Requirements
  • Installation should be performed by a qualified fiber optic technician to ensure proper connection and optimal performance.
Applications
  • Telecommunications networks
  • Fiber optic communication systems
  • Optical signal power management
  • Data centers and server rooms
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Helps optimize optical network performance, reducing the need for additional hardware and energy consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Serveredge LC Singlemode Male to Female Attenuator 15dB is available for immediate purchase, ideal for telecommunications and data center applications.
